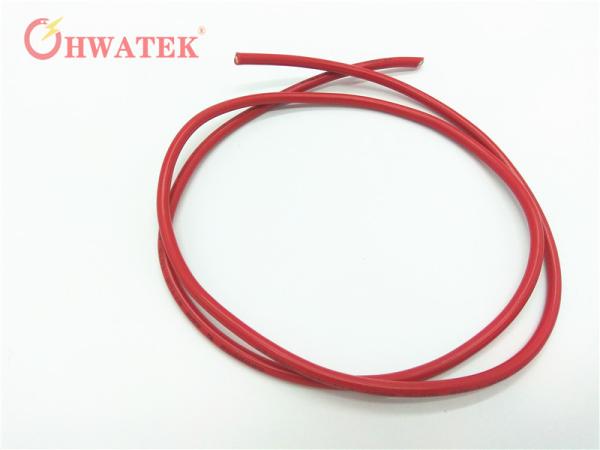

Hook Up Single Core Flexible Cable Oil Resistance UL1032
Hook Up Single Core Flexible Cable Oil Resistance UL1032
Hook Up Single Core Flexible Cable Oil Resistance UL1032
Hook Up Single Core Flexible Cable Oil Resistance UL1032
Specifications
Brand Name :
Hwatek
Model Number :
UL1032
Certification :
UL,ROHS, REACH
Place of Origin :
China
MOQ :
6.1KM
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
3000KM Per month
Delivery Time :
2-3W
Packaging Details :
carton/pallet
Product Name :
UL1032 Single Core Flexible Cable Hook-up Wire
Insulation :
PVC
Conductor :
Tinned or bare copper, stranded or solid conductor
Standard :
UL758&UL1581&CSA C22.2 No.210
Application :
internal wiring of electronic and electrical equipment
Rated Voltage :
600V
Temperature :
90℃
Description

UL1032 Single Core Flexible Cable Hook-Up Wire

Product Number Conductor Insulation

Max. Cond. Resistance (200C)

Ω/km

Min insulation resistance (200C)

MΩ/km

Dielectric

Strength

(AC)

V/1min
Size AWG NO./mm

Conductor

Dia .

mm

Nom. Thickness

mm

Nom. Dia.

mm
HT10321**001 30 7/0.1 0.30 0.80 1.90 354 15 2000
HT10321**002 28 7/0.127 0.38 0.80 1.98 223 15 2000
HT10321**003 26 7/0.16 0.48 0.80 2.08 140 15 2000
HT10321**004 24 11/0.16 0.61 0.80 2.21 87.6 15 2000
HT10321**005 22 17/0.16 0.76 0.80 2.36 55.4 15 2000
HT10321**006 20 26/0.16 0.94 0.80 2.54 34.6 15 2000
HT10321**007 18 41/0.16 1.18 0.80 2.78 21.8 15 2000
HT10321**008 16 26/0.254 1.49 0.80 3.09 13.7 15 2000
HT10321**011 26 1/0.404 0.404 0.80 2.00 138 15 2000
HT10321**012 24 1/0.511 0.511 0.80 2.11 85.9 15 2000
HT10321**013 22 1/0.643 0.643 0.80 2.24 54.3 15 2000
HT10321**014 20 1/0.813 0.813 0.80 2.41 33.9 15 2000
HT10321**015 18 1/1.024 1.024 0.80 2.62 21.4 15 2000

Application: For internal wiring of electronic and electrical equipment

Application standard: UL758&UL1581&CSA C22.2 No.210

Product character:

  • Standard insulation thickness ,easily strip and cut
  • Pass UL VW-1 and CSA FT1 vertical flame test
  • Oil resistance, anti-acid, moisture-proof, Mildew-proof, environmental protection etc.

Constructure:

Tinned or bare copper, stranded or solid conductor, 30—2000MCM

PVC insulation

Technical parameter:

Rated temperature : 90℃

Rated Voltage: 600V

Products are used in consumer electronic and electrical equipment, industrial control, communication
