IEC 62893 EV Cable 2Cx25mm2+1Cx25mm2+ (6Cx0.75mm2+W)
IEC 62893 EV Cable 2Cx25mm2+1Cx25mm2+ (6Cx0.75mm2+W)
IEC 62893 EV Cable 2Cx25mm2+1Cx25mm2+ (6Cx0.75mm2+W)
IEC 62893 EV Cable 2Cx25mm2+1Cx25mm2+ (6Cx0.75mm2+W)
IEC 62893 EV Cable 2Cx25mm2+1Cx25mm2+ (6Cx0.75mm2+W)
IEC 62893 EV Cable 2Cx25mm2+1Cx25mm2+ (6Cx0.75mm2+W)
Specifications
Brand Name :
HWATEK
Model Number :
IEC 62893 2C×25mm2+1C×25mm2+(6C×0.75mm2+W)
Certification :
UL,ROHS, REACH
Place of Origin :
China
MOQ :
100M
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
2-3 W
Packaging Details :
carton / pallet
Conductor :
Bare Copper Stranded
Insulation :
EVI-2
Sheath :
EVM-1
Operating temperature :
-40 ~ +90°C
Rated voltage :
1.5KV DC
Product Category :
IEC 62893 2C×25mm2+1C×25mm2+(6C×0.75mm2+W)
Description

IEC 62893 2C×25mm2+1C×25mm2+(6C×0.75mm2+W) EV CABLE

A: 2C×25mm2 B:1C×25mm2 C:6C×0.75mm2 Jacket
Conductor Bare copper stranded Material EVM-1
Cross section 25mm2 25mm2 0.75mm2 Tensile strength ≥20MPa
Construction 798/0.20mm 798/0.20mm 40/0.15mm+Tinsel+ Kevlar Elongation ≥300%
Strand Dia.(Ref.) 7.00mm 7.00mm 1.30mm Aged condition 110±1℃×168h
Insulation EVI-2 Percent of original tensile strength ±30%
Nom.Thickness 1.00mm 1.00mm 0.40mm Percent of original elongation ±30%
Min.Thickness 0.80mm 0.80mm 0.32mm
Insulation Dia. 9.30±0.40mm 9.30±0.40mm 2.20±0.05mm
Insulation colour 1.red 2.blue yellow/green
1.black 2.red 3.white 4.green
5.orange 6.blue
Filler
/ / Cotton
Tape / / Non woven,≥25%
Filler
PP rope
Tape
Non woven,≥25%
Remark
Assembly
2C×25mm2+1C×25mm2+(6C×0.75mm2+W)+W
Jacket
EVM-1
Reference standard:IEC 62893
Nom.Thickness
1.70mm
Min.Thickness
1.36mm
Outer Dia.
25.5±1.50mm
Colour
per request

IEC 62893 EV Cable 2Cx25mm2+1Cx25mm2+ (6Cx0.75mm2+W)

Certification Body:

General Administration of Quality Supervision, Inspection and Quarantine

Certificate No. Product Types
CQC16011142377 EV-(R)SS,EV-(R)SSPS,EV-(R)S90S90,EV-(R)S90S90PS90,EV-(R)S90U,EV-(R)S90S90PU-450/750V

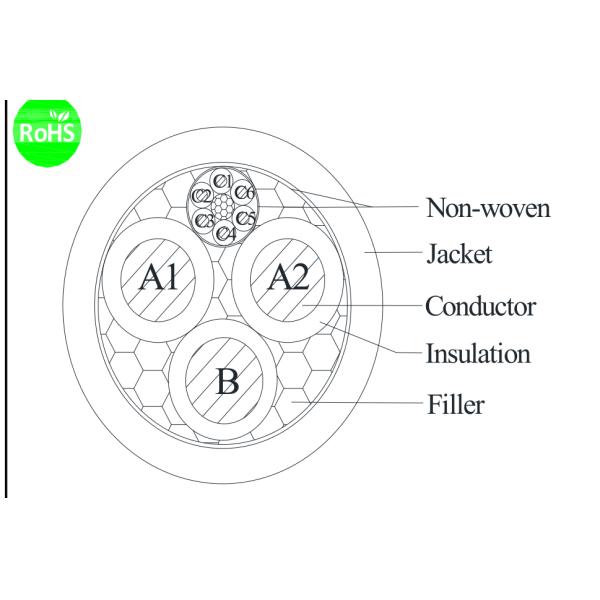

structure diagram:
IEC 62893 EV Cable 2Cx25mm2+1Cx25mm2+ (6Cx0.75mm2+W)

Reference standard:GB/T 33594-2017

Product Category:

Product Category:

AC:EV-(R)S90U EV-(R)S90S90PU-450/750V 1.0-70(2-5Cores)+0.5-0.75(P/P2)(1-10Cores)

Structural parameter table:

Category

Wire specifications

Reference current

(A)

Diameter

unshielded

(mm)
TPE PU
EV-(R)SS,EV-(R)SSPS,EV-(R)S90S90,EV-(R)S90S90PS90,EV-(R)S90U,EV-(R)S90S90PU-450/750V 3×2.5+2×0.75 18 12.7 11.1
3×4+2×0.75 25 14.4 12.8
3×6+2×0.75 34 16.3 14.5
5×2.5+2×0.75 18 15.3 13.7
5×4+2×0.75 25 17.8 16.0
5×6+2×0.75 34 19.8 17.8
5×10+2×0.75 50 22.9 20.7
5×16+2×0.75 67 27.5 25.1

1. The detailed dimensions are subject to the product specifications.

2. Other specifications can be designed and manufactured according to customer requirements.

3. The color of the sheath is generally black or orange. If there is special requirement, it can be customized according to customer's requirement.

IEC 62893 EV Cable 2Cx25mm2+1Cx25mm2+ (6Cx0.75mm2+W)

IEC 62893 EV Cable 2Cx25mm2+1Cx25mm2+ (6Cx0.75mm2+W)
