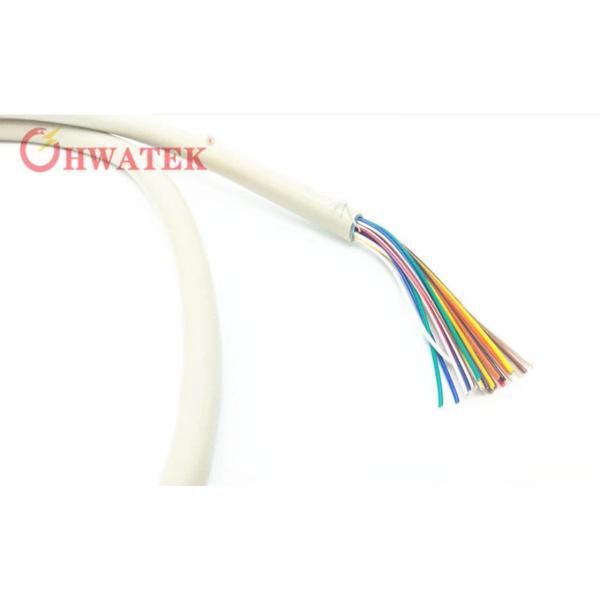

XLPE Jacket Braided Copper Wire PVC Insulation UL21411
XLPE Jacket Braided Copper Wire PVC Insulation UL21411
XLPE Jacket Braided Copper Wire PVC Insulation UL21411
XLPE Jacket Braided Copper Wire PVC Insulation UL21411
Specifications
Brand Name :
Hwatek
Model Number :
UL
Certification :
UL,ROHS, REACH
Place of Origin :
China
MOQ :
3050M
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
3000KM Per month
Delivery Time :
2-3W
Packaging Details :
carton/pallet
Conductor material :
Tinned or bare copper, stranded or single conductor
Application :
Internal wring or external interconnection of electronic equipment
Jacket :
XLPE
Insulation material :
PVC ,PE, XLPE
Rated voltage :
300V
Rated temperature :
125ºC
Description

UL21411 Braided Copper Wire

Application: Internal wring or external interconnection of electronic equipment.
Application standard: UL758&UL1581&CSA C22.2 No.210
Product character:

  • Excellent insulation performance, stable chemical properties
  • Pass UL VW-1 and CSA FT1 vertical flame test
  • High-temperature resistance, anti-acid, environmental protection etc.

Constructure:
Tinned or bare copper, stranded or single conductor
PVC ,PE, XLPE insulation
Two or more single-core wires is twisted into pair or cabling again to form round cable, or flat, oval-shaped cable
Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
XLPE jacket
Technical parameter:
Rated temperature : 125ºC
Rated Voltage:300V

XLPE Jacket Braided Copper Wire PVC Insulation UL21411

Product Number Conductor Insulation Shield Jacket Max. Cond. Resistance (200C)
Ω/km
core Size AWG NO./mm Conductor Nom. Thickness Nom. Dia. Tape thick. Dia. of braid strand Nom. Thick. mm Nom. Dia.
Dia . mm mm mm mm mm
mm
HT21411**101 3C 28 7/0.127 0.38 0.26 0.8 0.025 0.1 0.8 3.8 223
HT21411**102 3C 26 7/0.16 0.48 0.26 0.9 0.025 0.1 0.8 4.04 140
HT21411**103 3C 24 11/0.16 0.6 0.26 1.12 0.025 0.1 0.8 4.51 87.6
HT21411**104 3C 22 17/0.16 0.76 0.26 1.3 0.025 0.1 0.8 4.9 55.4
HT21411**105 6C 28 7/0.127 0.38 0.26 0.8 0.025 0.12 0.8 4.7 223
HT21411**106 6C 26 7/0.16 0.48 0.26 0.9 0.025 0.12 1 5.3 140
HT21411**107 6C 24 11/0.16 0.6 0.26 1.12 0.025 0.12 1 6 87.6
