Compact Flour Mill Maize Cleaning Machine Dust Aspiration Filter 2000 Mm Sleeves Length
Compact Flour Mill Maize Cleaning Machine Dust Aspiration Filter 2000 Mm Sleeves Length
Specifications
Brand Name :
CTGRAIN
Model Number :
TBLM
Certification :
CE / ISO
Place of Origin :
Zhengzhou, Henan Province
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 Sets per Month
Delivery Time :
30 working days
Packaging Details :
Nude packing in Full Container Loading or Fumigation wooden case for LCL.
Name :
TBLM 26 - 20 Filter
Usage :
Dust Remove
Warranty :
12 Months
Application :
Dust Removal
Other Name :
Low Pressure Jet Filter
Color :
Customized
Description

Maize Cleaning Machine Filter Dust Aspiration System 2000 Mm Sleeves Length​

Compact Flour Mill Maize Cleaning Machine Dust Aspiration Filter 2000 Mm Sleeves Length

Features :

1)Tangent air inlet design can first separate bigger dust particles to reduce the load of the filters. It also can be made square shape according to requirements.
2) High efficiency, particle < 1 um, efficiency > 95%; Particle > 1 um, efficiency > 99.5%.
3) 2 or more filters can be controlled together as one unit.
4) High quality filter cloth ensures the de-dust efficiency and wear resistance.


The machine for dedusting

*Widely used in the Food, Grain and Feed industries
*Also used in Chemical, Medical and other industries

Technical Parameter List :

Type TBLM 26 - 20
Sleeves Quantity 26 PCS
Sleeves Area 19.1 m2
Sleeves Length 2000 mm

Air Volume

 1146 - 5730 m3 / h
Weight 749 kg

Working principle

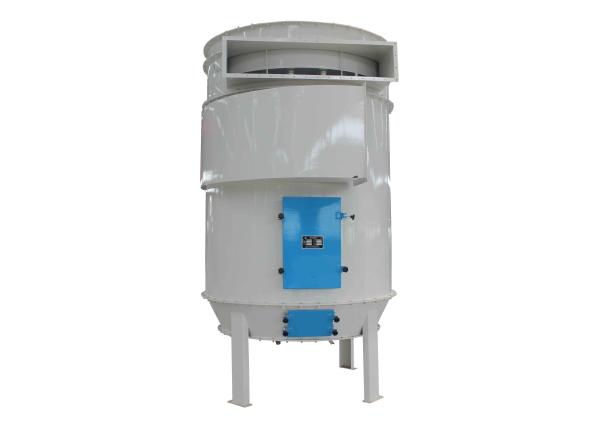

The machine has a round body composed of three parts: upper body, middle body and lower body. Sleeve filters are fixed on the upper body and hung in the middle body. The dusty air is aspirated into the machine tangently from the inlet which is located on the middle body. After the dusty air enters the jet filter from the dusty air inlet, some large dust will fall down into the lower body. Air with small dust will be sticked on the sleeve while cleaned air will enter inside of the sleeve and come out from cleaned air outlet. With time going by, more and more dust will be sticked on the surface of the sleeve, when the resistance up to some extent, dust will be shaken off by high pressure air which is controlled by the pulse controller. There is one dust scraper in the lower body to collect all the dust and transfer the dust to the airlock discharger.

About Our Team

The company has a strong technical force, with more than 20 engineers and technicians who are specialized in flour, electric, automatic control computer and so on.The products have passed ISO9001:2000 international quality management system, European Union CE quality certification and other international quality management system certification.It also has obtained Henan Province Science and Technology Type Sme Certification , National High-tech Enterprise Certification and 7 national invention patent certificates.

The company can provide a turn-key project design, including the flowchart drawing design, electrical and automatic control design, architectural planning a.These designs all get CAD computer aided design. Detailed drawing materials, advanced tool and rapid design can supply the client the best choice.
