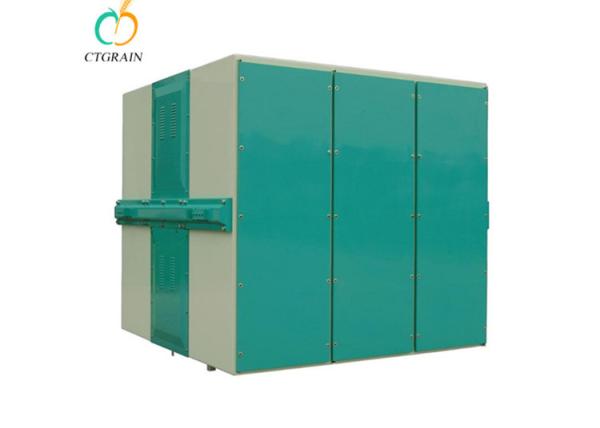

Eight Section Industrial Flour Sifter With Steel Trays Wheat And Middle Material
Eight Section Industrial Flour Sifter With Steel Trays Wheat And Middle Material
Specifications
Brand Name :
CTGRAIN
Model Number :
FSFG
Certification :
CE
Place of Origin :
Henan Zhengzhou
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Sets per Month
Delivery Time :
20 working days
Packaging Details :
Nude packing in Full Container Loading or Fumigation wooden case for LCL.
Name :
FSFG8X24 eight-section plansifter processing grinded wheat and middle material sifting equipped with steel trays
Usage :
Flour sifting
Other name :
FSFG8X24 eight-section plansifter processing grinded wheat and middle material sifting equipped with steel trays
Raw material :
Wheat Maize Corn Rice flour
Product name :
Flour Plansifter
Type :
Grain Processing Equipment
Description

FSFG8X24 eight-section plansifter processing grinded wheat and middle material sifting equipped with steel trays

The machine for sifting

* Widely applied in modern flour mills and rice grinding mills.
* Mainly used for grinding wheat and middle material sifting, which can also be used for flour check sifting.
* Different sieving design serves for different sifting passages and different middle materials.

Features

1. Sieve frame size: 640x640mm, 740mmx740mm-two types for choice.
2. Framework is pressed steel plate. Stainless steel trays and support wire. With self aligning type SKF (Sweden) special double row roller bearings
3. Sieve frames are made by imported wooden pasted with high quality plastic melamine lamination, easy to demount and interchange, which make the changing of sifting scheme easy and quick if necessary.
4. Flour Sieve is with Switzerland SEFAR sieve cloth.
5. Newly Nova style sieves or aluminum inner sieves are also available.

Type FSFG8X24
Sections 8 unit
Sieve Height 2200 mm
Sieve Frame Height (no top sieve frame) 1950 mm
Min Height of the Installation 3200 mm
Power 3 kW
Rotary Diameter 64±2 mm
Main Shaft Speed 245 r/min
Sifting Area 31.7㎡
Weight 2900 kg

Working principle


The machine is driven by a motor which is installed inside of the main frame and counter-balanced by a counterweight. Each machine has 4, or 6, or 8 sections sieves inside. Different material flows into the different section on its own route. According to individual design for different materials, the sieve sifts different granular material to different next passage in flour mills when the whole machine is running.

Sieve cleaners and tray cleaners


Sieve cleaners can prevent sieve blocking, and the tray cleaners can push the material move smoothly.


Fiber glass material suspender
