Corn Flour Roller Mill 0.37Kw Grain Milling Equipment
Corn Flour Roller Mill 0.37Kw Grain Milling Equipment
Corn Flour Roller Mill 0.37Kw Grain Milling Equipment
Corn Flour Roller Mill 0.37Kw Grain Milling Equipment
Specifications
Brand Name :
CTGRAIN
Model Number :
MMQ
Certification :
CE
Place of Origin :
Henan Zhengzhou
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Sets per Month
Delivery Time :
20 working days
Packaging Details :
Nude packing in Full Container Loading or Fumigation wooden case for LCL.
Name :
Corn Flour Roller Mill 0.37Kw Grain Milling Equipment
Usage :
Flour milling
Raw material :
Wheat Maize Corn Rice flour
Application :
Flour milling
Color :
Customized
Type :
Grain Processing Equipment
Material :
Corn Wheat and Grains
Description

Corn Flour Roller Mill 0.37Kw Grain Milling Equipment

Roller Mill Specifications:

Name Pneumatic Roller Mill
Type MMQ100*30*2
Length

1000mm
Diameter 250mm
Weight 3250kg
Shape Size 1810*1526*1955mm

The machine for grain grindin, Widely used in Flour Mill, Corn Mill, Feed Mill and so on.

Roller mill Features:

Air aspiration design for the roller gap help to reduce the temperature of the grinding roller.

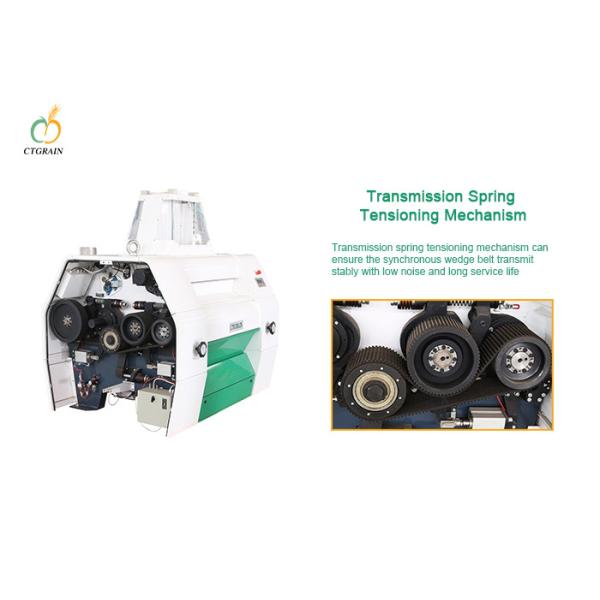

Transmission Spring Tensioning Mechanism:

Transmission spring tensioning mechanism can ensure the synchronous wedge belt transmit stably with low noise and long service life.

Roller:

Double metal centrifugal casting, high strength and good wear resistance.

Unbalance of the balance ≤ 2g.

Total radial run-out < 0.008 mm.

The shaft end is treated with 40Cr and the hardness is HB248-286.

Hardness of roller surface: Smooth roller is Hs62-68, tooth roller is Hs72-78. Besides, the hardness distribution is uniform, and the hardness difference of the roller is ≤ Hs4.

Long service life.

Roller Mill Working principle:

After the roller mill is started, the two rollers start to rotate. At this time, the distance between the two rollers is relatively wide. In this state, the material has not yet entered from the inlet. When the two rollers are engaged, the slow roller moves at a constant speed to the fast roller, and the feeding mechanism starts to convey the material. at the same time, the relevant parts for feeding and grinding roller gap adjustment begin working. When the two grinding rollers reach a certain working gap, the rollers start grinding normally. When the grinding roller is separated, the slow roller leaves the fast roller, and the feeding mechanism stops conveying materials.

Corn Flour Roller Mill 0.37Kw Grain Milling Equipment
