Heavy 69.1m2 Pneumatic Dust Collection System 4146M3/H - 20730M3/H
Heavy 69.1m2 Pneumatic Dust Collection System 4146M3/H - 20730M3/H
Heavy 69.1m2 Pneumatic Dust Collection System 4146M3/H - 20730M3/H
Heavy 69.1m2 Pneumatic Dust Collection System 4146M3/H - 20730M3/H
Heavy 69.1m2 Pneumatic Dust Collection System 4146M3/H - 20730M3/H
Heavy 69.1m2 Pneumatic Dust Collection System 4146M3/H - 20730M3/H
Specifications
Brand Name :
CTGRAIN
Model Number :
TBLM
Certification :
CE
Place of Origin :
Henan Zhengzhou
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 Sets per Month
Delivery Time :
20 working days
Packaging Details :
Nude packing in Full Container Loading or Fumigation wooden case for LCL.
Name :
TBLM-78 dust scraper 1.5kw pneumatic dust collector heavy
Usage :
Taking in the air and adsorbs the dust in the air
Raw material :
powder, dust
Application :
in the aspiration system and pneumatic conveying system
Color :
Customized
Purpose :
Make the environment air clean
Description

TBLM-78 dust scraper 1.5kw pneumatic dust collector heavy

Pneumatic Dust Collector Introduction

Pulse dust collector, also known as a bag filter. The bag is used as the core filter unit, and the electromagnetic pulse valve is used to open and close the dust collector of the bag cleaning operation with compressed air injection. It is used to deal with fine particles such as dust in the air. Widely used in food, grain, feed, and other industries. It is also used in chemical, pharmaceutical, and other industries.

Dust removal is a process of physical interception. In short, it is like a sieve. The dust whose particle size is larger than the sieve hole is intercepted, and the dust whose particle size is smaller than the sieve hole can penetrate. Therefore, the finer the sieve hole is, the higher the efficiency of dust interception is. For different emission concentration requirements, filter materials with different pore sizes are selected.

Pneumatic Dust Collector Technical Parameter

Type TBLM-78
Sleeves Length(mm) 1800 2000 2400
Air Voloume(m³/h) 3090-15450 3438-17190 4146-20730
Sleeves Area(m²) 51.5 57.3 69.1
Airlock Power(kw) 1.1
Dust Scraper Power(kw) 1.5
Weight(kg) 1720 1800 2000

Pneumatic Dust Collector Technological Process:

Pollution source generation point → suction hood collection → branch air duct ventilation → main air duct ventilation → dust collector filtration → power fan → exhaust.

Pneumatic Dust Collector Features:

1) The filter cloth made of high-quality material is not easy to be damaged, which ensures the dust removal effect.

2) Pulse bag filter is widely used, has a long history, mature technology, economic and practical.

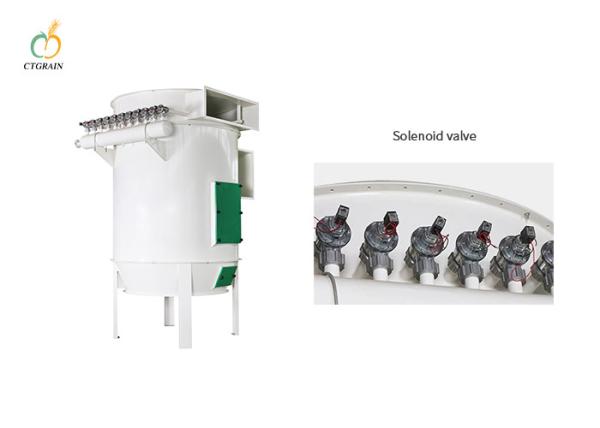

3) The solenoid valve can control the injection sleeve, without mechanical wear and error.
