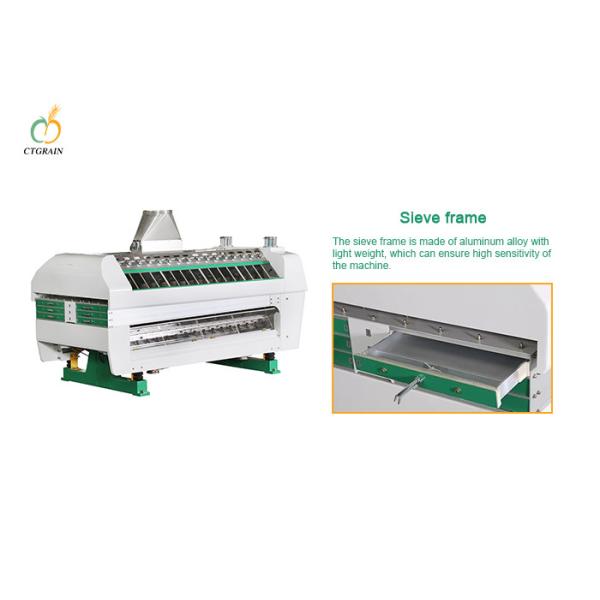

Semolina Flour Milling Machine Purifier Grain Milling Equipment
Semolina Flour Milling Machine Purifier Grain Milling Equipment
Semolina Flour Milling Machine Purifier Grain Milling Equipment
Semolina Flour Milling Machine Purifier Grain Milling Equipment
Specifications
Brand Name :
CTGRAIN
Model Number :
FQFD
Certification :
CE / ISO
Place of Origin :
Zhengzhou, Henan Province
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Sets per Month
Delivery Time :
20 working days
Packaging Details :
Nude packing in Full Container Loading or Fumigation wooden case for LCL.
Name :
CE Certified Semolina Flour Milling Machine Purifier Grain Milling Equipment
Other Name :
Purifier Used In wheat corn Flour Mill Plant
Color :
White & Green
Type :
FQFD 49 x 2 x 3
Application :
Improve wheat corn Flour Quality
Warranty :
1 year
power :
2x0.18kw
Description

CE Certified Semolina Flour Milling Machine Purifier Grain Milling Equipment

Technical Parameter List :

Type FQFD 49x 2 x 3
Capacity 800 - 1600 kg / h (fine)
Power 2 x 0.18 kW
Amplitude 8.5 - 9 mm
Frequency 590 Times/min
Aspiration Volume 40 - 70 m3 / min
Shape Size 2700 x 1300 x 1700 mm
Weight 970 kg

The machine Widely applied in modern flour mills to produce flour with high quality. Successfully used to produce semolina flour in durum flour mills.

Working principle:

Materials are evenly distributed on the screen surface through feeding gate, and screen frame is divided into three layers. When the materials are screened, the air flow blows up the particles with the lightest specific gravity from the bottom up, then taken away by air flow through ventilation hood. Lighter materials are discharged out through port on the screen, and clean powder particles would pass through screen holes. The materials under the screen are accumulated in the conveying tank based on quality requirements.

Features:

1,The vibrating system can be balanced by the synchronous vibration of the sieve body, the material separating device and the conveying trough.

2,The feeding system has reliable balance device, which can ensure the balance when the material enters the screening process.

3,Both the overtails and throughs have adjusting device, which can conveniently control the material flow direction according to the process requirements.

4,It adopts excellent design, and has the features of reasonable structure, effective dustproof measures,and low failure rate. And it is convenient to inspect, maintain and adjust.

Semolina Flour Milling Machine Purifier Grain Milling Equipment
