Classify Semolina In Flour Mills 600kg/h Grain Milling Equipment
Classify Semolina In Flour Mills 600kg/h Grain Milling Equipment
Specifications
Brand Name :
CTGRAIN
Model Number :
FQFD
Certification :
CE / ISO
Place of Origin :
Zhengzhou, Henan Province
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Sets per Month
Delivery Time :
20 working days
Packaging Details :
Nude packing in Full Container Loading or Fumigation wooden case for LCL.
Name :
Purifier To Enrich And Classify Semolina In Flour Mills Grain Milling Equipment
Other Name :
Purifier Used In wheat corn Flour Mill Plant
Color :
White & Green
Type :
FQFD 38 x 2 x 3
Application :
Improve wheat Flour Quality
Warranty :
1 year
power :
2x0.18kw
Description

Purifier To Enrich And Classify Semolina In Flour Mills Grain Milling Equipment

Technical Parameter List :

Type FQFD 38x 2 x 3
Capacity 600 - 1000 kg / h (fine)
Power 2 x 0.18 kW
Amplitude 8.5 - 9 mm
Frequency 590 Times/min
Aspiration Volume 35 - 65 m3 / min
Shape Size 2190 x 1085 x 1510 mm
Weight 800 kg

The machine Widely applied in modern flour mills to produce flour with high quality. Successfully used to produce semolina flour in durum flour mills.

Working principle:

Materials are evenly distributed on the screen surface through feeding gate, and screen frame is divided into three layers. When the materials are screened, the air flow blows up the particles with the lightest specific gravity from the bottom up, then taken away by air flow through ventilation hood. Lighter materials are discharged out through port on the screen, and clean powder particles would pass through screen holes. The materials under the screen are accumulated in the conveying tank based on quality requirements.

Features:

1,Adopting the brusher (or rubber ball cleaners) to clean the screen surface, and the cleaning effect is good.

2,All supporting points adopt rubber spring or rubber bearing, not need lubrication to maintain. And it has the features of stable movement, vibration reduction, vibration isolation, durability and no noise.

3,Both the total air volume and each air chamber can be adjusted, which can effectively control the aspiration volume of each air chamber.

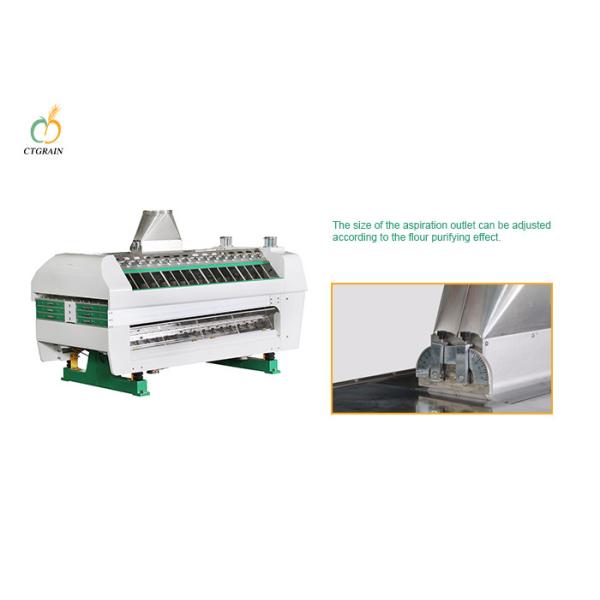

4,The size of the aspiration outlet can be adjusted according to the flour purifying effect.
