Small Flour Milling Plant 640x640mm 51m2 Plan Sifter Machine
Small Flour Milling Plant 640x640mm 51m2 Plan Sifter Machine
Specifications
Brand Name :
CTGRAIN
Model Number :
FSFG
Certification :
CE
Place of Origin :
Henan Zhengzhou
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 Sets per Month
Delivery Time :
20 working days
Packaging Details :
Nude packing in Full Container Loading or Fumigation wooden case for LCL.
Name :
Small Flour Milling Plant FSFG4x28 7.5kw Plansifter
Usage :
Flour sifting
Raw material :
Wheat Maize Corn Rice flour
Product name :
Flour Plansifter
Color :
Customized
Type :
Grain Processing Equipment
Flour Plansifter :
Flour Mill High Square Plansifter
Final Products :
Super fine flour
Application :
Flour sifting and grading
Description

Small Flour Milling Plant FSFG4x28 7.5kw Plansifter

Type FSFG4X28
Sections 4 unit
Sieve Height 2470 mm
Sieve Frame Height (no top sieve frame) 2180 mm
Min Height of the Installation 3540 mm
Power 7.5 kW
Rotary Diameter 64±2 mm
Main Shaft Speed 245 r/min
Sifting Area 51㎡
Weight 3950 kg

High Square Plansifter

The machine for sifting

Widely applied in modern flour mills and rice grinding mills.

Mainly used for grinding wheat and middle material sifting, which can also be used for flour check sifting.

Different sieving design serves for different sifting passages and different middle materials.

working principle

Machine is driven by internal motor and balanced by counterweight. Machine can be equipped with 4,6,8 section screen frame for various needs. Materials of different levels flow into different sections through fixed route. Based on the needs of customers and through personalized design of different materials, the intermediate materials can be graded and screened to next process when running.

features

1. Sieve frame size: 640x640mm, 740mmx740mm-two types for choice.

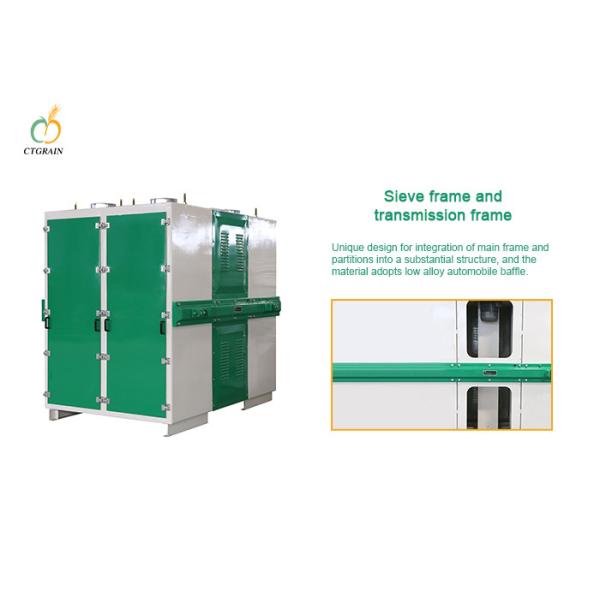

2. Framework is pressed steel plate. Stainless steel trays and support wire. With self aligning type SKF (Sweden) special double row roller bearings

3. Sieve frames are made by imported wooden pasted with high quality plastic melamine lamination, easy to demount and interchange, which make the changing of sifting scheme easy and quick if necessary.
