IP66 CH2O Fixed Gas Detector Formaldehyde CH2O Gas Leak Monitor
IP66 CH2O Fixed Gas Detector Formaldehyde CH2O Gas Leak Monitor
IP66 CH2O Fixed Gas Detector Formaldehyde CH2O Gas Leak Monitor
IP66 CH2O Fixed Gas Detector Formaldehyde CH2O Gas Leak Monitor
Specifications
Brand Name :
Eyesky
Model Number :
ES10B
Certification :
CE,ROSH
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
2~3 days
Price :
500~2000USD
Supply Ability :
1000pcs per year
Packaging Details :
carton packaging
Detection Gas :
CH2O
Zero drift :
Zero drift
Working temperature :
-30℃～+60℃
Working humidity :
≤95%RH，No condensation
Operation mode :
Infrared remote control remote
Protection grade :
IP66
Description

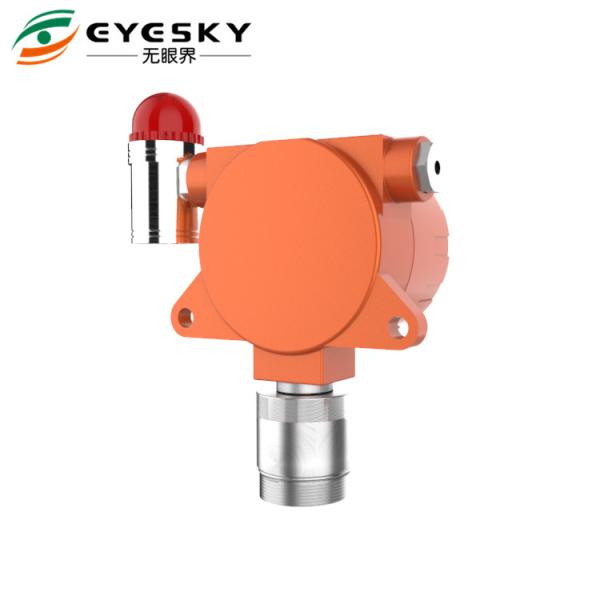

IP66 CH2O Fixed Gas Detector Formaldehyde CH2O Gas Leak Monitor

Fixed gas for Formaldehyde(CH2O) gas leak monitor with Explosion construction design

Product feature :

◆ The design of dashboard display interface , reading beautiful and generous, reflect the human details design;

◆ White, orange, red three colors backlight design , normal,alarm status indication, it’s easy to check;

◆ mg/m3,ppm,VOL,LEL multi unit optional；

◆ Embedded 32-bit ultra-low power processor, with unique signal processing algorithm, fast response, good stability and repeatability;

◆ Automatic protection against high concentration gas shock, with factory Settings restored to prevent misoperation;

◆ The instrument is equipped with infrared remote control, which can be operated by remote control without opening the cover, and is simple and convenient;

◆ Three wire system with 4 ~ 20mA, RS485, 200~1000HZ signal output optional, relay output, data recovery, data storage and other functions;

Explosion grade: Exd II CT6
Protection grade : IP66

Signal output:

 It can be determined by the user according to the actual environmental requirements of the site, and can transmit up to 2000m (single core 1mm2 shielded cable)
Three-wire system 4-20ma current signal output, can be connected to alarm controller, PLC, DCS and other control systems (standard configuration)
RS-485 digital signal output, ModBus RTU communication protocol (optional function)
Frequency signal 200~1000Hz output (optional function)
Two groups of relay output: passive contact capacity 220VAC 0.5A or 5VDC 0.5A

IP66 CH2O Fixed Gas Detector Formaldehyde CH2O Gas Leak Monitor

IP66 CH2O Fixed Gas Detector Formaldehyde CH2O Gas Leak Monitor
