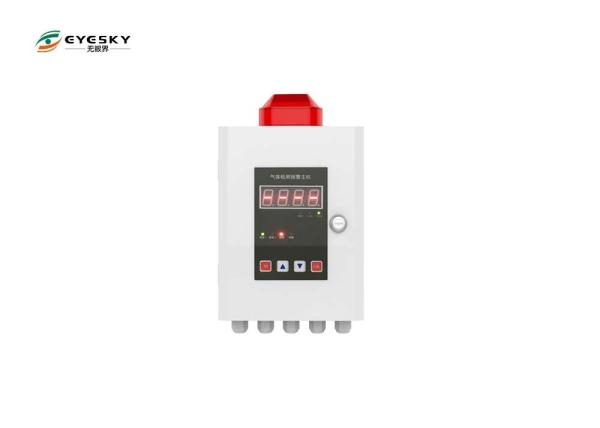

Wall Mounted Gas Detector Controller Easy Operated 20 - 50℃ Operating
Wall Mounted Gas Detector Controller Easy Operated 20 - 50℃ Operating
Wall Mounted Gas Detector Controller Easy Operated 20 - 50℃ Operating
Wall Mounted Gas Detector Controller Easy Operated 20 - 50℃ Operating
Specifications
Brand Name :
EYESKY
Model Number :
ES90C02
Certification :
CE，ROSH，FCC，SIL
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram
Delivery Time :
1-2DAYS
Display mode :
Digital tube, LED display
Power consumption :
＜2W
input signal :
rs485
Working temperature :
-20℃～+50℃
Working humidity :
95% RH or less, without condensation
size :
L325mm*W220mm*H74mm
weight :
about2.6KG
Installation mode :
Wall mounted mounting
Description

Product features:

The 4gas alarm controller is a smart controlled system that is practical and easy operated. It can be connected to the gas sensor that with 4-20mA signal output, to realize remote control and system integration. It is compatible to different kinds of gas sensors, mainly use for areas that need to measure combustible or toxic gases, which can show the gas concentration directly, and when the gas concentration reaches to the alarm point, the controller will alarm with sound and light. The controller is also with relay output, which can control the exhaust fan and other devices, to realize intelligent and automatic operation.

Specifications:

Detection principle

the system supply 24V DC power for the connected sensors, and collected the 4-20mA input signals, analyze and show the data of the sensors, and set alarm data of the sensors
Application

the system is suitable for all the sensors with 4-20mA signal output
Display

High light LED nixie tube display
Working voltage 220V AC, 50HZ
Working environment: temperature

20℃～50℃, humidity <95%
System power under full load of 8 channels, max consumption is 50W
Alarm set low alarm, high alarm
Alarm way two levels light and sound alarm
Input signal 4-20mA
Output signal

4-20mA (optional)
Signal transmission distance

1000m
Relay output

several relays signal output, which is corresponding to the input signal accordingly. The corresponding channel and output method are adjustable.
Install method wall mounted
Dimension

48cm*27cm*9cm
Weight 4.6kg

Characteristics


·Advance micro-processing technology
·Good stability, high precision
·Universal, 4-20mA input
·High light LED nixie tube display the concentration, with two levels alarm setting
·With lock and voice elimination function
·Relay output

·4-20mA output (optional)
·Install method: wall mounted

Transmission distance

The maximum distance between the detector and the controller is less than 1000 meters, and the maximum distance between the computer and the controllers is less than 1000 meters

Durable

Waterproof and dustproof, can withstand the highest standard test, IP65 protection grade

Check all relays in real time to ensure the system runs without obstacles
