ES10B Online Ethylene Oxide Gas Detector 0-100ppm With Ce Iso9001 Certification 4-20mA signal output
ES10B Online Ethylene Oxide Gas Detector 0-100ppm With Ce Iso9001 Certification 4-20mA signal output
ES10B Online Ethylene Oxide Gas Detector 0-100ppm With Ce Iso9001 Certification 4-20mA signal output
ES10B Online Ethylene Oxide Gas Detector 0-100ppm With Ce Iso9001 Certification 4-20mA signal output
Specifications
Brand Name :
EYESKY
Model Number :
ES10B11-ETO
Certification :
CE，ROSH，FCC，SIL
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram
Delivery Time :
1-2DAYS
Sampling methods :
Diffusion or pump-suction selectable
Precision :
≤±3%F.S
Repeatability :
≤±1%
Zero drift :
≤±1%(F.S/year)
Response Time (T90 :
≤20s
Alarming :
Sound and light alarm
Explosion-proof Index :
Ex d IIC T6
Protection Grade :
IP66
Description

Production Introduction:

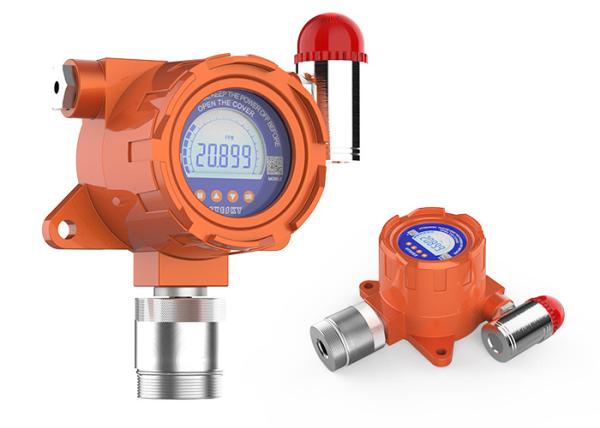

ES10B epoxy ethane detector is a classic gas detection transmitter of Eyesky technology, which is suitable for most places where gas leakage needs to be detected.The products adopt imported sensors and respond quickly.Display panel integrated operation button, easy to use, IP65 protection grade dustproof and waterproof.

Product features:

  1. Adopt original imported sensor
  2. Ultra low power 32 bit microprocessor,
  3. 4-20A and RS485 two signals output
  4. One group with power switching value output, another without switching value output (relay) High precision, good repeatability, stable signal, respond quickly,
  5. Connect with many controller system, such as PLC, DCS, computer and other, with the function of remote monitor and alarm, data logger and analysis

Technical parameters:

Detection Gas Ethylene Oxide
Detecting Range 0-10,20,100,500,1000ppm
Resolution 0.01ppm,0.1ppm,1ppm
Sampling Diffusion or pump-suction, circulation selectable
Precision ≤±3%F.S
Repeatability ≤±1% gas alarm wall-mounte N2d gas detector
Zero drift ≤±1%(F.S/year) fixed gas detector online gas detector
Sensor Type Electrochemical sensor
Sensor Life 2~3 years online gas leak detector, fixed type gas alarm, online N2 gas measuring device
Response Time (T90) ≤20s Fixed gas detector
Alarming mode Audible-visual alarm(Optional)
Operating Environment Temperature: -30℃~60℃ (Customized for special demands)
Humidity: ≤95%RH (non-condensing); if >90%RH, can add the filter
Pressure: 86kPa~106kPa
Working Voltage 24V DC(16~30VDC)
Output Signals (Standard)Three-wire system 4~20mA standard signals output, available for PLC, DCS, etc;
(Optional) Four-wire system RS485 digital signal output;
(Optional) Frequency signal 200~1000Hz output;
Two-level relay output:220VAC 0.5A, 5VDC 0.5A

ES10B Online Ethylene Oxide Gas Detector 0-100ppm With Ce Iso9001 Certification 4-20mA signal output

ES10B Online Ethylene Oxide Gas Detector 0-100ppm With Ce Iso9001 Certification 4-20mA signal output

ES10B Online Ethylene Oxide Gas Detector 0-100ppm With Ce Iso9001 Certification 4-20mA signal output
