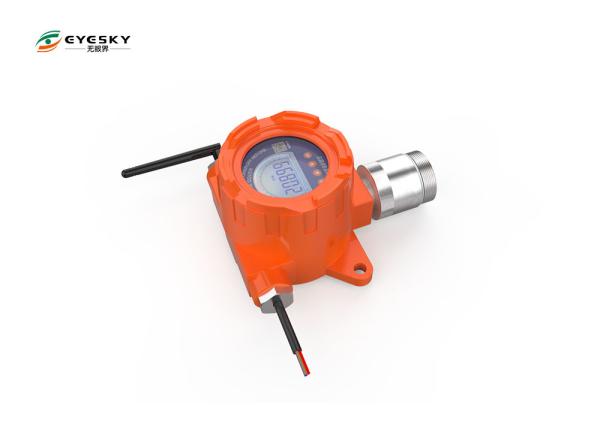

High Precision Wireless Gas Detector AC110 - 230V 50 - 60Hz 320 * 230 * 110MM
High Precision Wireless Gas Detector AC110 - 230V 50 - 60Hz 320 * 230 * 110MM
High Precision Wireless Gas Detector AC110 - 230V 50 - 60Hz 320 * 230 * 110MM
High Precision Wireless Gas Detector AC110 - 230V 50 - 60Hz 320 * 230 * 110MM
Specifications
Brand Name :
EYESKY
Model Number :
ES10B-W-EX
Certification :
CE，ROSH，FCC，SIL
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram
Delivery Time :
1-2DAYS
Warranty :
2 years
Working voltage :
AC110-230V 50-60Hz
Type :
Wireless
Function :
gas detector
Response time :
<30s,<=20S
Installation :
Wall Mounted
Power supply :
110V-230VAC 50/60Hz.
Description

High Precision Wireless Gas Detector AC110 - 230V 50 - 60Hz 320 * 230 * 110MM

Wireless Gas Detector Can choose Zigbee, LORA and other wireless output mode. The instrument has built-in LORA or ZIGBEE modules, which can realize wireless signal transmission in the area covered by ZIGBEE signals. There is intelligent temperature and humidity and zero compensation algorithm, full software automatic calibration function. Multiple units including mg/m3, PPM, VOL and LEL are available;Wireless Gas Detector is equipped with infrared remote control, through the remote control operation, no need to open the cover, simple and convenient;

Tiere is Independent air chamber structure, convenient sensor replacement, no need for on-site calibration.

Technical parameters:

Size (H x W x D)320*230*110mm
Weight 3000g
Detected principle Electrochemistry
Measure range 0-100%lel
Resolution 0.1%lel
Precision ≤±2%F.S (Higher measure range can be customized)
Pump flow rate Flow rate range:0-800 mL/Min
Display Screen 2.4-inch color display, resolution 320*240 resolution
Display contents Gas molecular formula, concentration, unit, pump status, etc.
Alarm buzzer, alarm status prompt on the display
Data logging Independent SD memory card, automatic measurement of measurement data, customizable recording interval
Communication and data download It can be directly connected to the computer via USB to quickly download the TXT file for storing data; with the PC software to download, store, analyze and print the data.
Power supply 12-36V DC
Wireless network Built-in module to upload data to the network platform, regardless of distance (optional)
Network frequency 2.4G high frequency
Installation method Wall-mounted, pipe-flow type (optional)
Language Chinese / English
Humidity 0～95%RH (no condensation) (optional filtration device can be equipped if in hyperhumidic ares )
Temperature -20℃~+50℃ (optional filter can be equipped if over temperature)
Explosion-proof Ex d IIC T6 Gb
Protection degree IP65
Certificate measuring instrument license, explosion-proof certificate, CE,ISO9001

High Precision Wireless Gas Detector AC110 - 230V 50 - 60Hz 320 * 230 * 110MM
