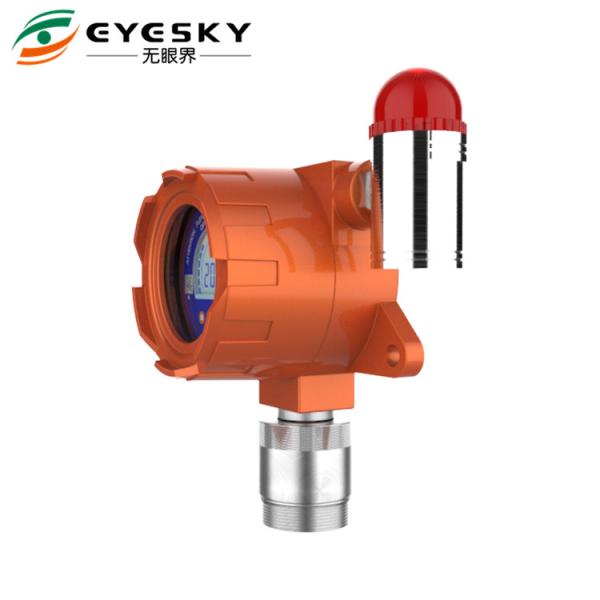

Diffusion Sampling Gas Leak Detector Fixed 0.1ppm Resolution For Carbon Monoxide
Diffusion Sampling Gas Leak Detector Fixed 0.1ppm Resolution For Carbon Monoxide
Specifications
Brand Name :
Eyesky
Model Number :
ES10B
Certification :
CE,ROSH
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
2~3 days
Detection Gas :
Carbon monoxide
Sampling :
Diffusion
Respond time :
≤20s
Explosion-proof Index :
Ex d IIC T6
Accuracy :
±3%(F.S)
Resolution :
0.1ppm
Description

Fixed gas for Carbon monoxide gas leak monitor with LCD screen display, for pipe use

Respond time: ≤20s(T90)
Recovery time: ≤20s
Explosion grade: Exd II CT6
Protection grade : IP66

Signal output:

 It can be determined by the user according to the actual environmental requirements of the site, and can transmit up to 2000m (single core 1mm2 shielded cable)
Three-wire system 4-20ma current signal output, can be connected to alarm controller, PLC, DCS and other control systems (standard configuration)
RS-485 digital signal output, ModBus RTU communication protocol (optional function)
Frequency signal 200~1000Hz output (optional function)
Two groups of relay output: passive contact capacity 220VAC 0.5A or 5VDC 0.5A

ES10B fixed combustible gas detector is the new design gas detector

by Eyesky technology base on the ES10A, adopt the ,which adopt the original

imported sensor and the new 32-bit low power ARM processor ;

Dashboard display interface, value and process bar show at the same time

, elegant appearance；


Diffusion Sampling Gas Leak Detector Fixed 0.1ppm Resolution For Carbon Monoxide

Diffusion Sampling Gas Leak Detector Fixed 0.1ppm Resolution For Carbon Monoxide

Diffusion Sampling Gas Leak Detector Fixed 0.1ppm Resolution For Carbon Monoxide

Diffusion Sampling Gas Leak Detector Fixed 0.1ppm Resolution For Carbon Monoxide

Diffusion Sampling Gas Leak Detector Fixed 0.1ppm Resolution For Carbon Monoxide
