Specifications
Brand Name :
EYESKY
Model Number :
ES20B
Certification :
CE,ROSH,FCC,SIL
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Delivery Time :
2-3Days
Sampling method :
Pump suction
Accuracy :
≤3%FS
Repeatability :
<3%FS
Respond time :
T90 ≤30 sec
Alarm method :
Sound and light alarm
Protection grade :
IP66
Working pressure :
86kPa~106kPa
Working humidity :
10%RH ~95%RH,No condensation
Description

106kPa Portable Industrial Gas Detectors With Sound Light Alarm

106KPa IP66 Industrial Gas Leak Detector For Bio Pharmaceutical

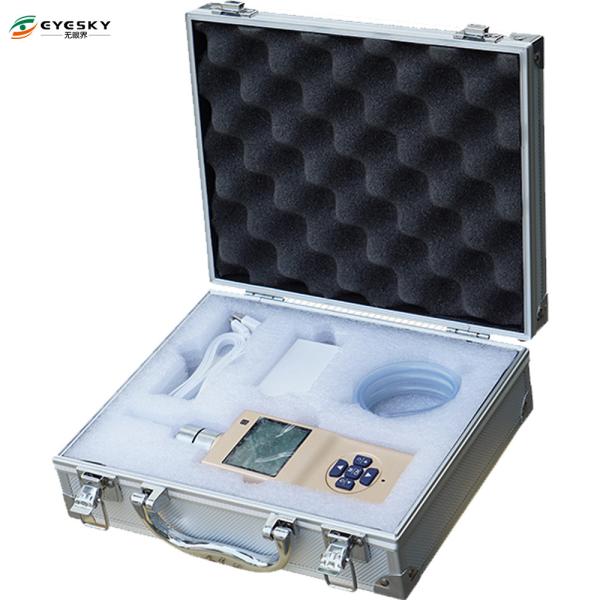

ES20B portable high precision methane detector, is a method of continuous detection of methane gas concentration in the nature of safety equipment, the use of imported non dispersive infrared technology sensor, can accurately and quickly detect the concentration of methane, effectively guarantee the life safety of the staff, intelligent level two alarm function greatly meet the requirements of industrial field safety monitoring equipment. Beautiful and professional portable design for mobile use, the product is widely used in the fields of petroleum, chemical, metallurgy, petrochemical, bio pharmaceutical, environmental protection at home and school laboratory.

Product features:

  1. English menu, the simple operation of the five keys, can quickly and accurately set the parameters and calibration data
  2. Large capacity rechargeable lithium battery can be used for long time continuous operation.
  3. Clear digital LCD backlight LCD design, the user can set the level of its own alarm point
  4. Built in super suction pump, easy to be unable to enter the test environment
  5. Sensor using original imported infrared methane sensor

Technical parameters:

Item Description
Detecting gas: ozone
Working principle: Catalytic combustion, electrochemistry, infrared absorption spectrum principle
Sampling method: Pump suction/dispersive
Measure range: 0-10,50,200ppm(Optional, other range can be customized)
Resolution: 0.01ppm,0.01ppm,0.1ppm,1ppm
Accuracy: ±3%FS
Repeatability: <3%
Respond time: T90 ≤30 sec
Alarm method: Sound and light alarm, double color LED lamp, sound or 75 db @ 25 cm
Operation method: Key operation(Life time of keys:2000000 times)
Material of host: Full metal jacket, strong wear resistant corrosion, feel is good
Working temperature: -30℃~+70℃(Conventional gas),-20℃~+50℃(poisonous gas)
Working humidity: 10%RH ~95%RH,No condensation
Working pressure: 86kPa~106kPa
Battery: Built-in high-performance lithium-ion batteries, import core: nominal voltage 3.7 VDC, 2500 mah
Charger: Travel charger with USB interface, USB power supply DC5V, charging temperature range: 0 ℃ to 40 ℃
Charging time: ≤6 hours, total charged time 12 hours
Continuous working time: ≥12 hours
Dimension: 135x65x35mm(LxWxH)
Weight About 0.46Kg
Protection grade: IP66
Execution standard: GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010
Quality assurance: One year warranty, the warranty period free maintenance, sensitive components such as sensors, according to the standard of sensor manufacturers.

106kPa Portable Industrial Gas Detectors With Sound Light Alarm

1. Do you support sample orders?

Sure We do support sample order, more competitive price for bulk orders.

2. Delivery time

1-7 days depend on the model and quantity.

3. Contact information

James, Whatsapp/wechat:+ 86 13392884922

4. Quality warranty

1 year under normal

5. After-sale service support

European and American customers (processing within 24h)

Asian customers (processing within 12h)

6. OEM and ODM service

Support we have a professional R&D team of more than 20 persons to provide OEM&ODM services for you.

7. Are you trading company or manufacturer ?

Original Factory We have two factories located in ShenZhen&Xi’an.

8. What is your terms of payment ?

We accept T/T, Paypal, Master card, Visa, Western Union, L/C.
