Specifications
Brand Name :
Hosem
Model Number :
A-C69HS
Certification :
ISO9001,CE, SASO, SONCAP
Place of Origin :
China
MOQ :
1Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Units Per Month
Delivery Time :
30-35days
Packaging Details :
Wooden Package or Plastic Foam Package
Rate Power :
63kVA
Frequency :
60Hz
Rate Voltage :
220/127V
Rate Current :
164.0A
Alternator :
Stamford UCI 224 D
Rate Output :
65kVA
No. of Cylinder :
4 Cylinder in line
Governor :
Electric
Controller Brand :
Deepsea DSE7320
Standby Power :
69kVA
Description

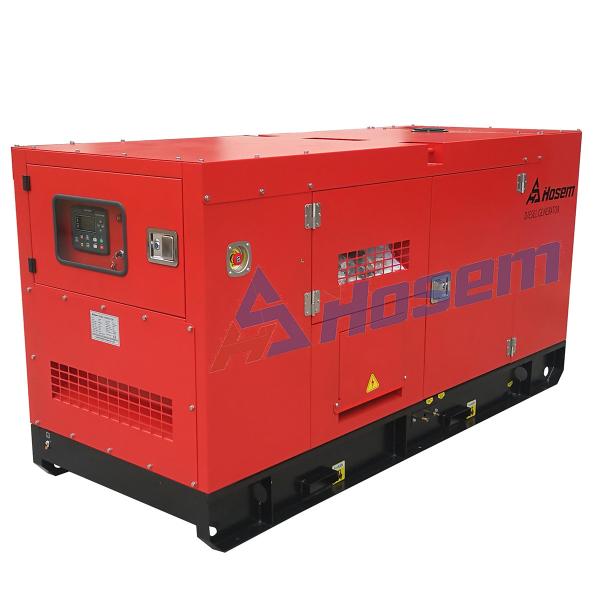

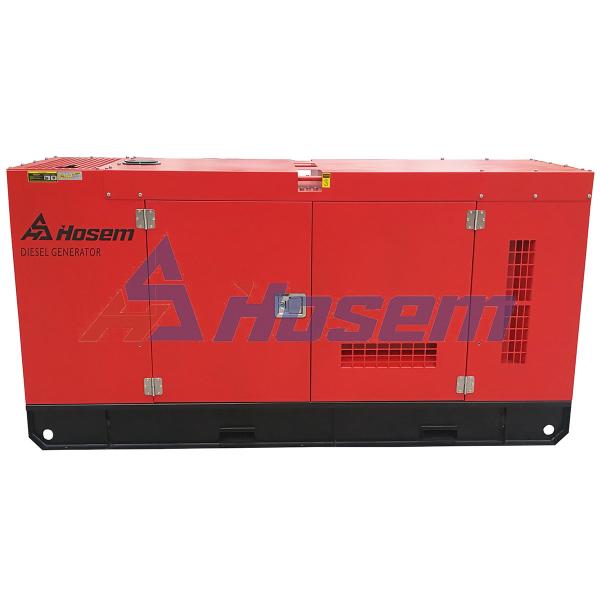

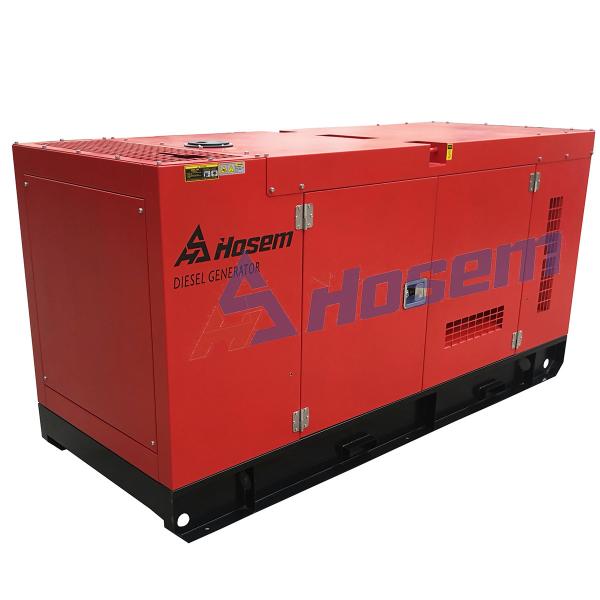

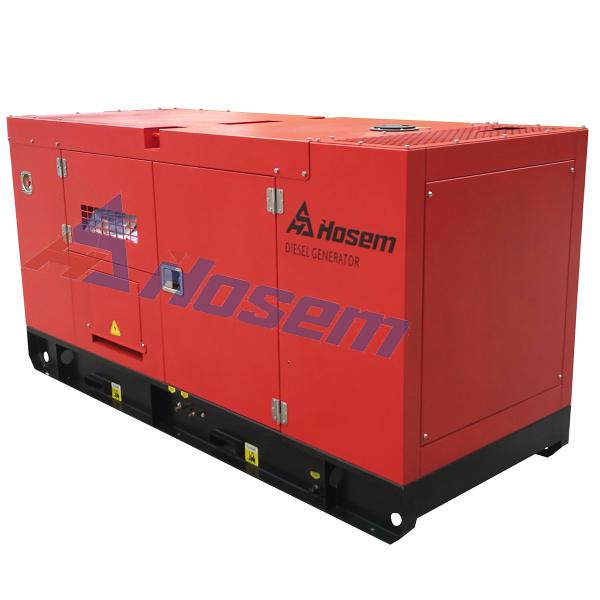

60Hz Cummins Disel Generator Set With Rate Power 63kVA Stamford Alternator Deepsea Controller

Generator Set Specification
Model A-C69HS
Max. Power kVA 69
kW 55.2
Rate Power kVA 63
kW 50
Frequency Hz 60
Rate Voltage V 220/127
Rate Current A 164.0
Dimension For Open-type Genset mm 1820 X 750 X 1050
Weight For Open-type Genset kg 2500 X 1050 X 1490
Dimension For Soundproof Genset mm 70
Weight For Soundproof Generator kg 350

Engine Specification
Engine Manufacturer Chongqing Cummins Engine Co., Ltd.
Engine Brand Cummins
Engine Model 4BTA3.9G2
No. of Cylinder 4 Cylinder in line
Aspiration Turbocarged & Aftercooed
Governor Electric
Engine Max. Output Power kW 66
Displacement L 3.9
Starting Voltage V 24
Bore mm 102
Stroke mm 120
Lubrication Oil Capacity L 11

Alternator Specification
Alternator Manufacturer Cummins Generator Technologies
Alternator Model UCI 224 D
Alternator Brand Stamford
Rate Output kVA 65
Frequency Hz 60Hz
Altitude M ≤1000
Insulation Class H
Voltage Regulation AVR Model SX460
Protection Grade IP23
Alternator for optional Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Control Panel Specification
Controller Brand Deepsea
Controller Model DSE7320
Breaker Brand Delixi
Breaker Capacity 80A
Battery Charger Supply
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc.
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Product Description:

1.Fully integrated power system is used. Superior performance and reliability, providing a wide range of stable backup and quality power.

2.Can be applied to continuously loaded operating conditions.

3. Precise frequency and voltage regulation.

4.Alarm and message status display.

5.A variety of generator models to choose from.

6.The unit comes standard with a heat sink to meet the cooling needs of the equipment in the rated environment.

7.Easy to operate and fully functional.

8.Suitable for a variety of locations.

9.Stable voltage output and easy maintenance.

10.Reasonable structure, good sealing.

60Hz Cummins Diesel Generator Set 63kVA Stamford Alternator Deepsea Controller

FAQ:

Q: What certifications are for your gen sets?

A: ISO9001-2008, ISO14001-2004, CE, SASO, SONCAP, RETIE, etc.

Q: What the MOQ?
A: 1 Set.

Q: What the payment term?
A: 30% of total amount paid by T/T for deposit, and 70% of total amount paid before shipment. Or the L/C payment.

Q: What the delivery time?
A: 20 Days for 1-3Units Order, 30days for 4-20Units Order.

Q: Which seaport you can ship the diesel generator to oversea country?
A: We can ship the diesel generator from Fuzhou Port, China. And Fuzhou port is a international seaport in China.

Q: What kind of the trade term you can offer?
A: We can offer with FOB, CNF, CIF or CIP.

Q: Do you have other voltage for optional?
A: Yes, we can customized made from 110V to 690V for client's optional.

Q: How many kinds of the diesel generator you have for optional?
A: We have open-type, soundproof type, waterproof type and trailer type diesel generator for optional.

Q: Does your generator have global warranty?
A: Yes. Gensets powered by global brand engine which with the global warranty service. And the alterntors Stamford, Leroy somer, Meccalte, Marathon also have the global warranty service.If you use the Chinese brand diesel engine and alternator, we will undertake the warranty, and during the warranty period, if there is any quality problem, we will supply the spare parts to replacement without charges. and the courier charges by air of spare parts will be paid by us.

Q: Can you customized made the diesel generator?
A: Yes. Our generators can be customized depending on customers' detailed requirements. We can supply diesel generators for rental business, home use, inudstrial projects, army projects, power station, etc. The diesel generators we supply are suitable for indoor and outdoor use, lower and high temperature environment.
