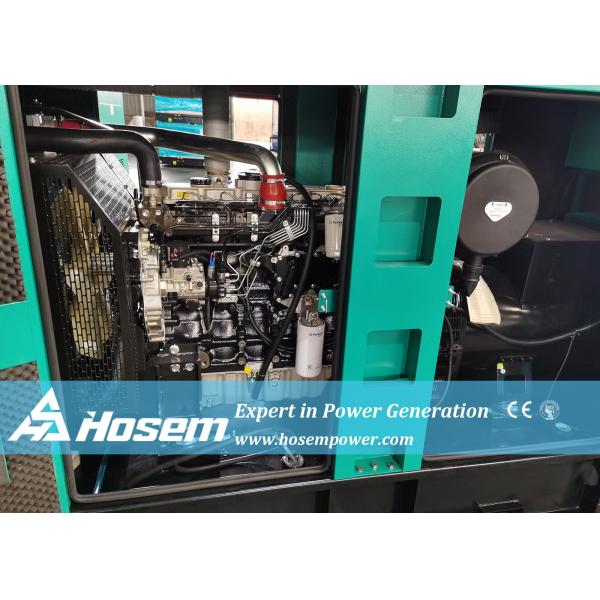

150kva 1500rpm Perkins Generator Set Water Cooled
150kva 1500rpm Perkins Generator Set Water Cooled
150kva 1500rpm Perkins Generator Set Water Cooled
150kva 1500rpm Perkins Generator Set Water Cooled
150kva 1500rpm Perkins Generator Set Water Cooled
150kva 1500rpm Perkins Generator Set Water Cooled
Specifications
Brand Name :
Hosem
Model Number :
A-P165
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 unit per month
Delivery Time :
30 days
Packaging Details :
ply-wood or plastic film
Alternator Brand :
Stamford, Leroy Somer, Marathon, etc.
Control Panel :
Smartgen, Deepsea, ComAp, etc.
Cooling System :
Water Cooled
Dimension :
Varies
Engine Brand :
Perkins
Fuel Type :
Diesel
Noise Level :
≤75dB(A)
Power :
150kVA
Product Name :
Industrial Generator Set
Rated Frequency :
50Hz
Rated Speed :
1500rpm
Rated Voltage :
220/380V
Starting System :
Electric/Manual
Weight :
2090kg
Description

150kva Generator ,Genset Perkins 150kva , 150kva Diesel Generator


Generator Set Specification
Model A-P165
Max. Power kVA 165
kW 132
Rate Power kVA 150
kW 120
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 216.5
Fuel Tank Capacity L 300
Dimension For Open-type Genset mm 2450 X 800 X 1400
Weight For Open-type Genset kg 1590
Dimension For Soundproof Genset mm 3200 X 1080 X 1500
Weight For Soundproof Generator kg 2090
Noise Level for Soundproof Generator at 7M dBA 75
Battery for Starting One of 120A Free Maintenance Battery


Engine Specification
Engine Manufacturer Perkins
Engine Brand Perkins
Engine Model 1106A-70TAG2
No. of Cylinder 6 Cylinder in line
Aspiration Turbocharged and Air to Air Aftercooled
Governor Electric
Engine Max. Output Power kW 153.6
Displacement L 7.0
Compression Ratio 16.0 : 1
Starting Voltage V 12
Bore mm 105
Stroke mm 135
Lubrication Oil Capacity L 16.5
Intake Air Flow M3/Min 9.4
Fuel Consumption at 100% Load L/H 33.4

Alternator Specification
Alternator Manufacturer Cummins Generator Technologies
Alternator Model UCI 274 F
Alternator Brand Stamford
Rate Output kVA 160
Frequency Hz 50Hz
Altitude M ≤1000
Insulation Class H
Phase 3 Phase
Working Temperature without power decrease ≤40℃
Working Altitude without power decrease ≤1000m
Automatic Voltage Regulation SX440
Protection Grade IP23
Alternator for optional Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional


150kva 1500rpm Perkins Generator Set Water Cooled

150kva 1500rpm Perkins Generator Set Water Cooled

https://wa.me/message/SNIZE4WTMHETB1

150kva 1500rpm Perkins Generator Set Water Cooled

FAQ

What Size Generator Set Do I Need?
The size of the generator set you need depends on the total electrical load you want to power during an outage. Contact us, we can help you calculate your power requirements and recommend an appropriate generator size.

What is Standby Power vs. Prime Power?
Standby power generators are designed for backup use and have variable load capacity. Prime power generators are designed for continuous use at a constant load, such as in remote areas or off-grid applications.

What Maintenance is Required for Generator Sets?
Regular maintenance is essential to ensure the reliability of a generator set. Maintenance tasks include oil and filter changes, fuel system checks, cooling system inspection, battery maintenance, and periodic load testing.

How Long Can a Generator Run Continuously?
The continuous runtime of a generator depends on factors like fuel capacity, load, and maintenance. Some generators can run for several hours to days on a single tank of fuel.
