Cummins 68kVA 54kW Soundproof Electric Diesel Generator With Stamford Alternator
Cummins 68kVA 54kW Soundproof Electric Diesel Generator With Stamford Alternator
Cummins 68kVA 54kW Soundproof Electric Diesel Generator With Stamford Alternator
Cummins 68kVA 54kW Soundproof Electric Diesel Generator With Stamford Alternator
Specifications
Brand Name :
Hosem Power
Model Number :
A-C75HS
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 unit per month
Delivery Time :
30 days
Packaging Details :
Ply-wood or plastic film
Product Name :
Cummins Diesel Generator Set
Prime Power :
68kVA 54kW
Standby Power :
75kVA 60kW
Engine Brand :
Cummins
Alternator Brand :
Stamford
Controller Modul :
Deepsea DSE7320
Frequency :
60Hz
Voltage :
220/127V
Phase :
3-phase
Cooling System :
Water Cooled
Description

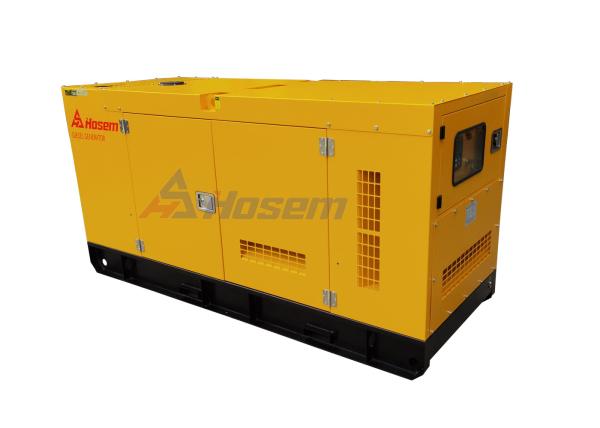

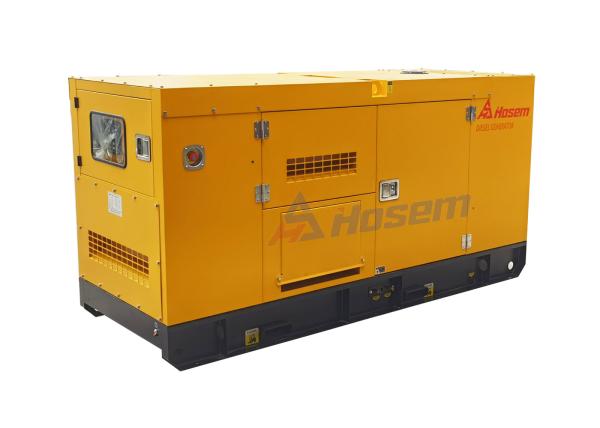

Famous brand Cummins 68kVA 54kW soundproof electric diesel generator with Stamford alternator

Generator Set Specification
Model A-C75HS
Max. Power kVA 75
kW 60
Rate Power kVA 68
kW 54.4
Frequency Hz 60
Rate Voltage V 220/127
Rate Current A 178.5
Dimension For Open-type Genset mm 1820 X 750 X 1050
Weight For Open-type Genset kg 2500 X 1050 X 1490
Dimension For Soundproof Genset mm 70
Weight For Soundproof Generator kg 350

Product Description

Δ GENSET FEATURES

1. Alternator equipped with copper winding.
2. The hinges and door lockers of our soundproof canopy are made of SS 304 stainless steel.
3. The spraying powdered material of the soundproof canopy is also of high quality in the industry.
4. The wiring inside our control panel is neat and tidy.
5. Generator set is designed with double doors for easy maintenance.

6. There is a forklift hole at the bottom and also a crane hole for easy transportation.
7. The soundproof canopy thickness is up to 2 millimeters.
8. The generator set is equipped with high-density flame-retardant soundproof cotton.
9. Our alternator's quality is comparable to Stamford's.
10. Equipped with a radiator with a fan, enough engine cooling system guarantees a long time working.

Engine Specification
Engine Manufacturer Dongfeng Cummins Engine Co., Ltd.
Engine Brand Cummins
Engine Model 4BTA3.9G2
No. of Cylinder 4 Cylinder in line
Aspiration Turbocarged & Aftercooed
Governor Electric
Engine Max. Output Power kW 66
Displacement L 3.9
Starting Voltage V 24
Bore mm 102
Stroke mm 120
Lubrication Oil Capacity L 11

Cummins 68kVA 54kW Soundproof Electric Diesel Generator With Stamford Alternator

Alternator Specification
Alternator Manufacturer Cummins Generator Technologies
Alternator Model UCI 224 D
Alternator Brand Stamford
Rate Output kVA 65
Frequency Hz 60Hz
Altitude M ≤1000
Insulation Class H
Voltage Regulation AVR Model SX460
Protection Grade IP23
Alternator for optional Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Control Panel Specification
Controller Brand Deepsea
Controller Model DSE7320
Breaker Brand Delixi
Breaker Capacity 80A
Battery Charger Supply
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc.
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Δ FAQ

Q1: Can you accept OEM orders?

A5: Yes, we have a professional design team and sincerely welcome OEM orders.

Q2: Which trade term can you accept?

A6: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q3: What is your MOQ for this item?

A:1 Set.

Q4: The valid period of the offer?

A: Usually 30 days.
