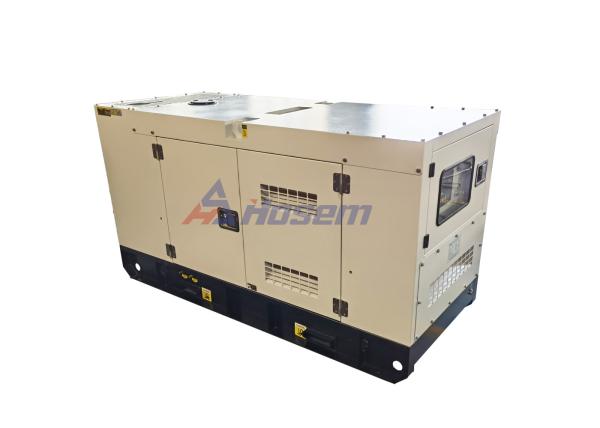

Stamford Alternator Perkins 50kVA Diesel Generator High Strength
Stamford Alternator Perkins 50kVA Diesel Generator High Strength
Stamford Alternator Perkins 50kVA Diesel Generator High Strength
Stamford Alternator Perkins 50kVA Diesel Generator High Strength
Specifications
Brand Name :
Hosem
Model Number :
A-P22
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 unit per month
Delivery Time :
30 days
Packaging Details :
ply-wood or plastic film
Rated Output :
45kVA
Standby Output :
50kVA
Engine Brand :
Perkins (UK)
Engine Model :
1103A-33TG1
Alternator Brand :
Stamford
Alternator Model :
UCI 224 D
Noise Level :
70dB
Controller :
Deepsea DSE6120
Description

Perkins 50kVA Diesel Generator Price, Specification of 50kVA Generator

Generator Set Specification
Model A-P50
Max. Power kVA 50
kW 39.6
Rate Power kVA 45
kW 36
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 65.0
Fuel Tank Capacity L 60
Dimension For Open-type Genset mm 1560 X 750 X 1200
Weight For Open-type Genset kg 870
Dimension For Soundproof Genset mm 2150 X 900 X 1150
Weight For Soundproof Generator kg 1226
Noise Level for Soundproof Generator at 7M dBA 72
Battery for Starting Two of Free Maintenance Battery

Engine Specification
Engine Manufacturer Perkins Engines Company Limited
Engine Brand Perkins
Engine Model 1103A-33TG1
No. of Cylinder 3 Cylinder in line
Aspiration Turbocharged
Governor Electric
Engine Max. Output Power kW 46.5
Displacement L 3.3
Compression Ratio 17.25 : 1
Starting Voltage V 12
Bore mm 105
Stroke mm 127
Lubrication Oil Capacity L 7.8
Intake Air Flow M3/Min 2.9
Fuel Consumption at 100% Load L/H 10.7

Alternator Specification
Alternator Manufacturer Cummins Generator Technologies
Alternator Model UCI 224 D
Alternator Brand Stamford
Rate Output kVA 50
Frequency Hz 50Hz
Altitude M ≤1000
Insulation Class H
Phase 3 Phase
Working Temperature without power decrease ≤40℃
Working Altitude without power decrease ≤1000m
Automatic Voltage Regulation SX460
Protection Grade IP23
Alternator for optional Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional


Stamford Alternator Perkins 50kVA Diesel Generator High Strength

Hosem Power Standard Features:

Excitation system: self-excited (AREP and PMG are optional)
• ATS (automatic transfer switch) receptacle (optional)
• Lockable battery isolator switch
• Stainless galvanized zinc plates with strong
corrosion resistance (Optinal)
• Vibration isolators between the engine/alternator
and base frame
• Integrated wiring design
• Base fuel tank for at least 8 hours running
• Equipped with an industrial muffler
• Engine oil pump
• 50℃ radiator
• Top lifting and steel base frame with forklift holes
• Drainage for fuel tank
• Complete protection functions and safety labels
• IP54 (soundproof sets), IP56 (control system)
• Water jacket preheater, oil heater and double air
cleaner, etc. are available.

Hosem generators power everything including Hotels, Marinas, Factories, Warehousing, and Government Buildings to full Island Power. With reliability, efficiency, and quiet performance.
