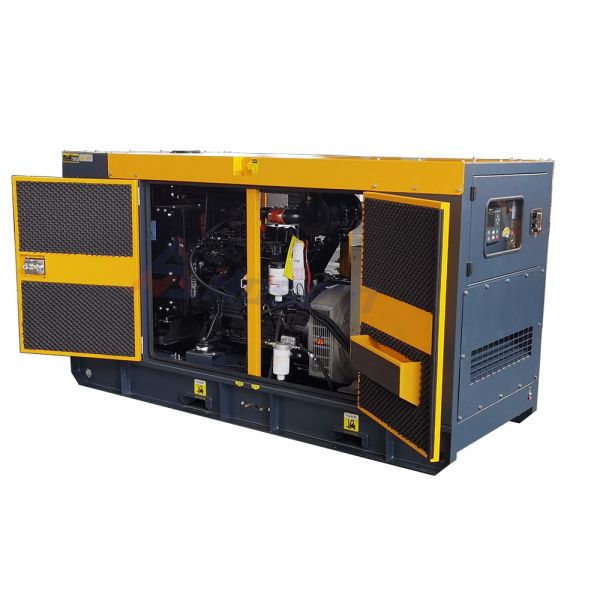

Engine 4bt3.9-G2 Cummings Gen Sets 40kva 50kva 32kw 40kw Water Cooling Silent / Open
Engine 4bt3.9-G2 Cummings Gen Sets 40kva 50kva 32kw 40kw Water Cooling Silent / Open
Engine 4bt3.9-G2 Cummings Gen Sets 40kva 50kva 32kw 40kw Water Cooling Silent / Open
Engine 4bt3.9-G2 Cummings Gen Sets 40kva 50kva 32kw 40kw Water Cooling Silent / Open
Specifications
Brand Name :
Hosem Power
Model Number :
A-C55HS
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 unit per month
Delivery Time :
30 days
Packaging Details :
Ply-wood or plastic film
Product Name :
Cummins Diesel Generator Set
Frequency :
60Hz
Prime Power :
50kVA 40kW
Standby Power :
55kVA 44kW
Noise Level :
72dBA at 7M
Alternator Brand :
Stamford PI 144J
Voltage :
220/127V
Starting System :
Electric Start
Warranty :
1 Year or 1000hours
Controller Modul :
Deepsea/ ComAp/ Smartgen
Description

40kVA 50kVA 32kW 40kW Water Cooling Silent/Open Generator Diesel with Cummins Engine 4BT3.9-G2

Product Description
Generator Set Specification
Model A-C55HS
Max. Power kVA 55
kW 44
Rate Power kVA 50
kW 40
Frequency Hz 60
Rate Voltage V 220/127
Rate Current A 131.2
Dimension For Open-type Genset mm 1780 X 750 X 1050
Weight For Open-type Genset kg 900
Dimension For Soundproof Genset mm 2300 X 900 X 1250
Weight For Soundproof Generator kg 1250

Engine Specification
Engine Manufacturer Chongqing Cummins Engine Co., Ltd.
Engine Brand Cummins
Engine Model 4BT3.9-G2
No. of Cylinder 4 Cylinder in line
Aspiration Turbocharged
Governor Electric
Engine Max. Output Power kW 44
Displacement L 3.9
Starting Voltage V 24
Bore mm 102
Stroke mm 120
Lubrication Oil Capacity L 11

Alternator Specification
Alternator Manufacturer Cummins Generator Technologies
Alternator Model PI 144J
Alternator Brand Stamford
Rate Output kVA 50
Frequency Hz 60Hz
Altitude M ≤1000
Insulation Class H
Voltage Regulation AVR Model SX460
Protection Grade IP23
Alternator for optional Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Control Panel Specification
Controller Brand Deepsea
Controller Model DSE7320
Breaker Brand Delixi
Breaker Capacity 160A
Battery Charger Supply
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc.
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Product Features

Soundproof Diesel Generator with Cummins Engine (1kVA-2000kVA)
1. The 50kVA diesel generator set was powered by Cummins Diesel Engine.
2. Our diesel genset is optional for Stamford / Leroy Somer / Hosem Alternator.
3. The controller panel is with CHINT / ABB MCCB and electronic Components. Generator current under 1000A,
the Circuit Breaker will be Delixi (ABB or Schneider MCCB for options).
4. The 40kVA 50kVA Cummins diesel generator set uses an electric start with a maintenance-free battery.
5. The 32kW diesel genset has a base integrated fuel tank for 8 hours running time.
6. The diesel generator set comes with a test report, manual, drawing, and standard tools kit.
7. AVR provides nonfluctuating power.
8. Electric starter ensures easy starting, has 12V/24V.
9. The 40kW Cummins diesel generation has a 70dBA noise level at 7m away.
10. There is a recessed emergency stop button on the soundproof canopy, to protect your diesel genset for safe.
Engine 4bt3.9-G2 Cummings Gen Sets 40kva 50kva 32kw 40kw Water Cooling Silent / Open
Engine 4bt3.9-G2 Cummings Gen Sets 40kva 50kva 32kw 40kw Water Cooling Silent / Open
Hosem Power Diesel Generator Sets supply reliability and engineering precision, ensuring good quality backup power whenever you need it.
