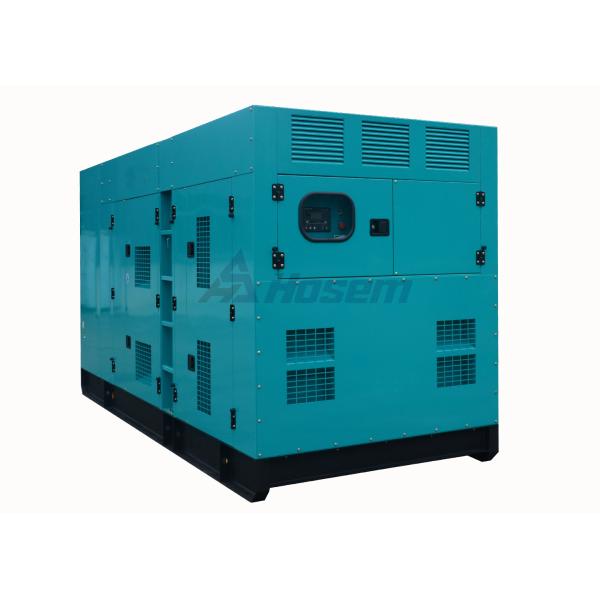

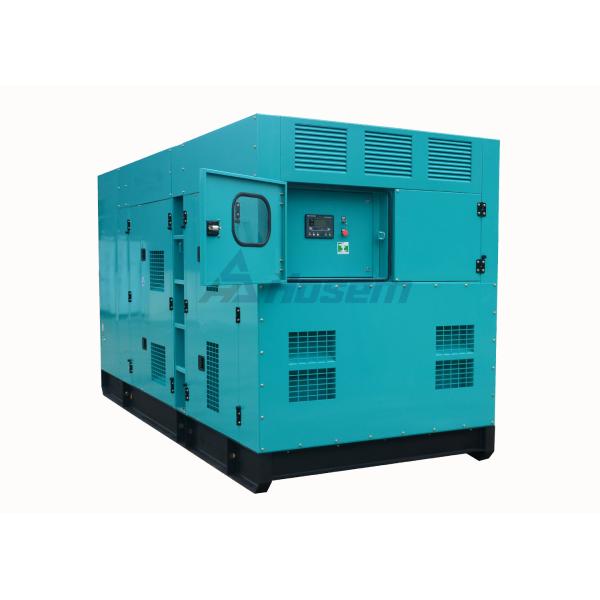

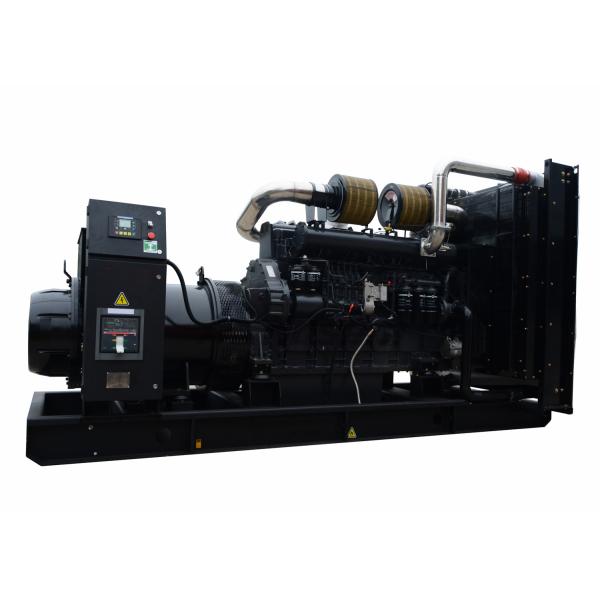

ISO 625kVA 500kW Soundproof SDEC Diesel Generator
ISO 625kVA 500kW Soundproof SDEC Diesel Generator
ISO 625kVA 500kW Soundproof SDEC Diesel Generator
ISO 625kVA 500kW Soundproof SDEC Diesel Generator
Specifications
Brand Name :
Hosem
Model Number :
A-SH688
Certification :
CE, ISO9001, ISO14001
Place of Origin :
Fuzhou, China
MOQ :
1 Set
Price :
USD27500.00 to USD30000.00 Per Unit
Supply Ability :
100 Sets Per Month
Delivery Time :
25 Days
Packaging Details :
Plastic Foam Packing
Rate Output :
500kW / 625kVA
Standby Output :
550kW / 688kVA
Type :
Soundproof
Fuel Type :
Diesel Fuel
Voltage :
400/230V
Current :
902A
Phase :
3 Phase 4 Wires
Noise Level :
80dBA at 7Meters
Engine Brand :
SDEC
Engine Model :
SC27G830D2
Engine Power :
610kW at 1500R.P.M.
Alternator :
Hosem Brushless Alternator
Alternator Power :
509.6kW / 637kVA at 50Hz
Standard :
ISO 8528/5 (2005)
Description

500kW Soundproof Diesel Generator with SDEC Diesel Engine For Factory

500kW Soundproof diesel generator powered by SDEC brand diesel engine model SC27G830D2 made by Shanghai Diesel Engine Co., Ltd. and Hosem brand alternator model ASF354FS made by Fuzhou Hosem Power Co., Ltd., continue output 500kW / 625kVA, standby output 550kW / 688kVA.

Specification of 500kW Soundproof Diesel Generator:

Model A-SH688
Max. Power kVA 688.0
kW 550.4
Rate Power kVA 625.0
kW 500.0
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 902.1
Dimension For Open-type Genset mm 3680 X 1800 X 2150
Weight For Open-type Genset kg 4700
Dimension For Soundproof Genset mm 4700 X 1800 X 2380
Weight For Soundproof Generator kg 5900
Noise Level at 7 Meters dBA 75
Fuel Tank Capacity Litres 700
Battery Four of 150A Free Maintenance Battery

ISO 625kVA 500kW Soundproof SDEC Diesel Generator

The SDEC diesel engine made by Shanghai Diesel Engine Co., Ltd. which is the factory make the original SDEC diesel engine from 1947. And the SC27G830D2 diesel engine is produced by advanced technologies with the emission of Euro Stage II standard.

Specification of SDEC Diesel Engine:

Engine Manufacturer Shanghai Diesel Engine Co., Ltd.
Engine Brand SDEC
Engine Model SC27G830D2
No. of Cylinder 12 Cylinders V type
Aspiration Turbocharged and Air to Air Aftercooled
Governor Electric
Engine Max. Output Power kW 662
Displacement L 26.600
Starting Voltage V 24
Bore mm 135
Stroke mm 155
Lubrication Oil Capacity L 65
Compression Ratio 16 : 1
Fuel Tank Capacity L 700
Fuel Consumption at 100% Load L 141.0

Specification of Hosem Brushless Alternator:

Alternator Manufacturer Fuzhou Hosem Power Co., Ltd.
Alternator Model ASF354FS1
Alternator Brand Hosem
Rate Output kVA 637
Frequency Hz 50Hz
Current A 919.5
Insulation Class H
Voltage Regulation SX440
Protection Grade IP23
Working Temperature without Output Decrease ≤1000m
Phase 3 Phase
Temperature Rise 125 Degree Celsius
Alternator for optional Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

ISO 625kVA 500kW Soundproof SDEC Diesel Generator

Specification of Control Panel:

Controller Brand Smartgen
Controller Model HGM6120N
Breaker Brand Delixi
Breaker Capacity A 1250
Battery Charger Smartgen Model BAC06A
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
Mains Monitor Supply with AMF Function
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

ISO 625kVA 500kW Soundproof SDEC Diesel Generator

FAQ:
Q: What the supply range of SDEC Diesel Generator?
A: The supply range from 25kVA to 1000kVA with 50Hz, and 25kVA to 413kVA for 60Hz.

Q: What the MOQ?
A: 1 Set.

Q: What the payment term?
A: 30% of total amount paid by T/T for deposit, and 70% of total amount paid before shipment. Or the L/C payment.

Q: What the delivery time?
A: 20 Days for 1-3Units Order, 35days for 4-20Units Order.

Q: Which seaport you can ship the diesel generator to oversea country?
A: We can ship the diesel generator from Fuzhou Port, China. And Fuzhou port is a international seaport in China.

Q: What kind of the trade term you can offer?
A: We can offer with FOB, CNF, CIF or CIP.

Q: Do you have other voltage for optional?
A: Yes, we can customized made from 110V to 690V for client's optional.

Q: How many kinds of the diesel generator you have for optional?
A: We have open-type, soundproof type, waterproof type and trailer type diesel generator for optional.
