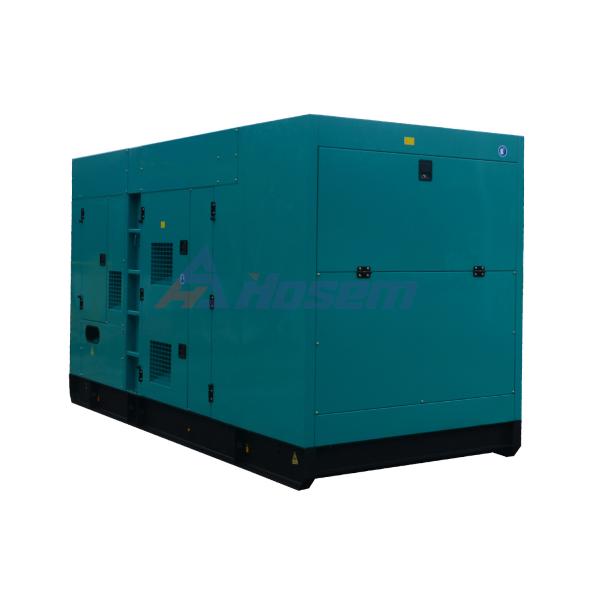

Waterproof 500kW DP180LB Doosan Diesel Generator Set
Waterproof 500kW DP180LB Doosan Diesel Generator Set
Waterproof 500kW DP180LB Doosan Diesel Generator Set
Waterproof 500kW DP180LB Doosan Diesel Generator Set
Specifications
Brand Name :
Hosem
Model Number :
A-D688
Certification :
CE, ISO9001, ISO14001
Place of Origin :
Fuzhou, China
MOQ :
1 Set
Price :
USD34500.0 - USD40000.0 / Unit
Supply Ability :
200 Sets Per Quater
Delivery Time :
30 Days
Packaging Details :
Plastic Foam Package
Continuous Power :
500kW / 625kVA
Standby Power :
550kW / 688kVA
Frequency :
50Hz (60Hz for optional)
Voltage :
400 / 230V
Output Type :
Three Phase
Rate Current :
902A
Fuel Consumption :
137.4 L/H At 100% Load
Diesel Engine :
Doosan Model DP180LB
Engine Power :
556kW at 1500RPM
Alternator :
Stamford Brand Model HCI 544 F-S
Alternator Rate Output :
500kW / 625kVA
Controller :
ComAp AMF9
Standard :
ISo8528-5
Warranty :
One Year or 1000Hours
Description

Waterproof and Soundproof Diesel Generator Set Powered by Doosan Engine DP180LB for Continue Working

Technical Data of Continuous Power 500kW Doosan Diesel Generator:

Model A-D688
Max. Power kVA 688
kW 550
Rate Power kVA 625
kW 500
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 902.1
Fuel Tank Capacity L 800
Dimension For Open-type Genset mm 3250X 1400 X 2100
Weight For Open-type Genset kg 5200
Dimension For Soundproof Genset mm 4500 X 1550 X 2400
Weight For Soundproof Generator kg 6200
Noise Level for Soundproof Generator at 7M dBA 80
Battery Four of 150Ah Free Maintenance Battery

Waterproof 500kW DP180LB Doosan Diesel Generator Set

Technical Data of Doosan Diesel Engine DP180LB:

Engine Manufacturer Doosan Infracore
Engine Brand Doosan
Engine Model DP180LB
No. of Cylinder 10 Cyliner V Type
Aspiration Turbocarged & Aftercooed
Governor Electric
Engine Max. Output Power kW 612
Displacement L 18.3
Compression Ratio 0
Starting Voltage V 24
Bore mm 128
Stroke mm 142
Lubrication Oil Capacity L 35
Intake Air Flow M3/Min 31.6
Fuel Consumption at 100% Load L/H 137.4

Waterproof 500kW DP180LB Doosan Diesel Generator Set

Technical Data of Stamford Alternator HCI 544 FS:

Alternator Manufacturer Cummins Generator Technologies
Alternator Model HCI 544 F-S
Alternator Brand Stamford
Rate Output kVA 625
Frequency Hz 50Hz
Altitude M ≤1000
Insulation Class H
Phase 3 Phase
Working Temperature without power decrease ≤40℃
Working Altitude without power decrease ≤1000m
Automatic Voltage Regulation SX440
Protection Grade IP23
Alternator for optional Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Waterproof 500kW DP180LB Doosan Diesel Generator Set

Technical Data of Automatic Control Panel:

Controller Brand ComAp
Controller Model IL-NT AMF9
Breaker Brand Delixi
Breaker Capacity (A) 1000
Battery Charger Smartgen Model BAC06A
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Waterproof 500kW DP180LB Doosan Diesel Generator Set
