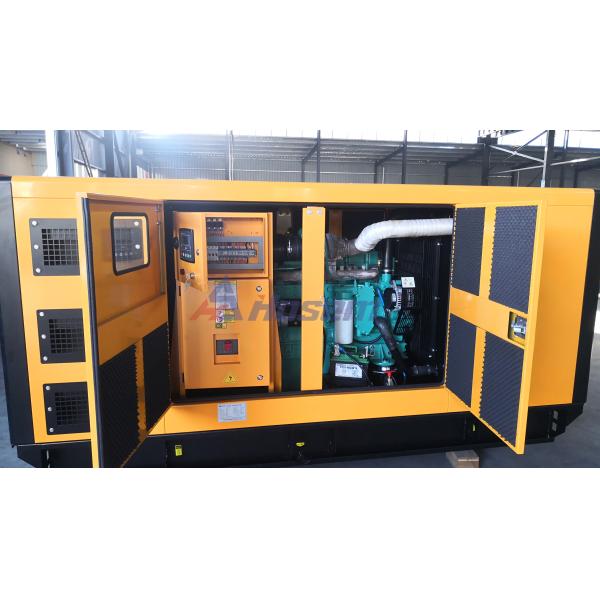

Orange 343kVA 50Hz Cummins Silent Diesel Generator
Orange 343kVA 50Hz Cummins Silent Diesel Generator
Orange 343kVA 50Hz Cummins Silent Diesel Generator
Orange 343kVA 50Hz Cummins Silent Diesel Generator
Orange 343kVA 50Hz Cummins Silent Diesel Generator
Orange 343kVA 50Hz Cummins Silent Diesel Generator
Specifications
Brand Name :
Hosem Power
Model Number :
A-C300H
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Payment Terms :
L/C, T/T
Supply Ability :
500 unit per month
Delivery Time :
30 days
Packaging Details :
ply-wood or plastic film
Price :
Negotiable
Product Name: :
Diesel Generator Set
Frequency: :
50Hz
Standby Power: :
375kVA
Prime Power: :
343kVA
Engine Brand: :
Cummins
Engine Model: :
6ZTAA8.9G3
Alternator Brand: :
Stamford
Alternator Model: :
UCDI 274 J
Description

Cummins Generator, Cummins Diesel Generator Set, 50Hz Super Silent Generator with Stamford Alternator

Reliable and Durable:

6ZT series diesel engine with strong regrindable crankshaft, high strength connecting rod, low pressure fuel lines, and high volume coolant system make 6ZT series’ generating sets, more reliable and durable.

Specifications:

Model A-C375H
Standby Power kVA 375
kW 300
Prime Power kVA 343
kW 274
Frequency Hz 50
Output Voltage V 240
Oil Consumption L/H 0.25
Dimension For Open-type mm 3300 X 970 X 1650
Weight For Open-type kg 3450
Dimension For Soundproof mm 4250 X 1550 X2180
Weight For Soundprof kg 4020
Engine Model 6ZTAA13-G3
No.of Cylinder 6 Cylinder in line
Bore mm 125
Stroke mm 147
Displacement L 10.8
Cooling Fan Air Flow m3/min 480
Compress Air Flow m3/min 25
Exhaust Gas Flow m3/min 61.8
Exhaust Gas Temperature ℃ 512
Lubrication Oil Capacity L 36
Cooling Water Capacity L 23.1
Starting Voltage V 24
Engine Max.Output Power kW 374
Alternator Model HCI 444 D
Alternator Brand Stamford
Rate Output kVA 375
Frequency Hz 50
Altitude M ≤1000
Insulation Class H
Protection Grade IP23
Alternator for choice We also have Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator for your choice.
Control Panel Model AF500
Controller Deepsea Brand Model DSE7320
Function of control panel Automatic genset start/stop
Automatic battery charger
Emergency stop
AMF (Automatic Mains Fault)
Remote control
Micro-processor based design
LED alarm indication and Sound alarm


Orange 343kVA 50Hz Cummins Silent Diesel Generator

Testing Items:
HOSEM provides a full line of brand new and high quality products.
Each and every unit is strictly factory tested before shipment.
1) Parts faults testing
2) Fuel tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insulation testing
6) Noise testing
7) Loading Testing: 25%, 50%, 75%, 100%, 110% load to check verify that all control systems, alarm and shut-down protection.

Warranty Item

Guarantee for one year or 1200hours from the ex-factor date. During the repair time, we will provide the free easy-damageable spare parts of diesel engines caused by our quality of production or raw material. After expiration, we will supply cost spare part for you to repair it.

Orange 343kVA 50Hz Cummins Silent Diesel Generator

FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
Q: What is your lead time?
A: About 20-30 days after receiving advance deposit or original L/C.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
