Cummins Diesel Generator Set 75kVA 60kW 3phase 60Hz In Bolivia Venezuela Colombia
Cummins Diesel Generator Set 75kVA 60kW 3phase 60Hz In Bolivia Venezuela Colombia
Cummins Diesel Generator Set 75kVA 60kW 3phase 60Hz In Bolivia Venezuela Colombia
Cummins Diesel Generator Set 75kVA 60kW 3phase 60Hz In Bolivia Venezuela Colombia
Specifications
Brand Name :
Hosem Power
Model Number :
A-C75H
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 unit per month
Delivery Time :
30 days
Packaging Details :
ply-wood or plastic film
Phase :
3
Voltage :
133/230V
Frequency :
60Hz
Engine Model :
4BTA3.9G2
Capaicity :
75kVA
Controller :
Deepsea DSE6120
Fuel Consumption :
15.9L/H
Noise :
72dB
Description

Cummins Generator 75kVA/ 60kW , 3phase 60Hz , Diesel Generator Set Bolivia , Venezuela , Colombia

Specification:

Model A-C69H
Standby Power kVA 69
kW 55
Prime Power kVA 63
kW 50
Frequency Hz 60
Output Voltage V 240
Oil Consumption L/H 0.051
Dimension For Open-type mm 1820 X 750 X 1050
Weight For Open-type kg 1020
Dimension For Soundproof mm 2300 X 900 X 1250
Weight For Soundprof kg 1200

Engine Model 4BTA3.9G2
No.of Cylinder 4 Cylinder in line
Bore mm 102
Stroke mm 120
Displacement L 3.9
Cooling Fan Air Flow m3/min 135.6
Compress Air Flow m3/min 4.13
Exhaust Gas Flow m3/min 9.96
Exhaust Gas Temperature ℃ 475
Lubrication Oil Capacity L 11
Cooling Water Capacity L 28
Starting Voltage V 24
Engine Max.Output Power kW 66

  • Compact design, high energy density.
  • Class H insulation.
  • High efficiency.
  • Suited for prime applications.
  • Full range of VPI (Vacuum Pressure Impregnation) insulation technology.
  • Independent development of energy feedback test platform.
  • Independently developed AVR, built-in load buffer module, can effectively reduce the impact of transient load on the unit.
  • Low-reactance design, with good transient performance and distortion load response capability

Alternator Model UCI 224 D
Alternator Brand Stamford
Rate Output kVA 65
Frequency Hz 60
Altitude M ≤1000
Insulation Class H
Protection Grade IP23
Alternator for choice We also have Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator for your choice.

As one of the largest engine manufacturers in the world, Cummins has an extensive service network around the world, especially in South America. Cummins generator sets are widely used in Bolivia, Venezuela, Colombia and other countries, including backup power for buildings, outdoor Power at worksites, backup power at home, etc.

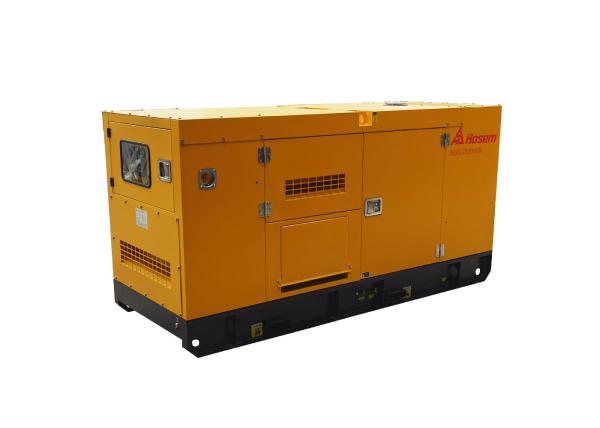

Hosem Power 75kVA generator set with Cummins engine 4BTA3.9G2 and composed with Stamford alternator UCI 224 D, 1800RPM/60Hz. The outstanding features are below:

  • Stamford synchronization brushless alternator
  • Deepsea controller
  • Drive fan for engine and 40ºC heat radiating water tank.
  • Molded case circuit breaker
  • Battery and battery cable
  • Floating charger
  • Base frame with shock absorber
  • Daily fuel tank
  • Exhaust elbow, exhaust bellows, exhaust muffler
  • Fuel filter, oil filter, air filter
  • Tool kits
  • Plastic membrane packing


Optional accessories

  • Jacket pre-heater
  • Oil-water separator
  • Oil pre-heater
  • Spit-type daily fuel tank
  • Weather and Sound-proof container
  • Trailer

Cummins Diesel Generator Set 75kVA 60kW 3phase 60Hz In Bolivia Venezuela Colombia

Contact Us:

Cummins Diesel Generator Set 75kVA 60kW 3phase 60Hz In Bolivia Venezuela Colombia

FQA

Question:

What's your delivery time?

Answer:

Our delivery time is 35days after receiving your deposit

Question:

What's your warranty?

Answer:

We provide 1 year or 1000 hours warranty to our industrial and marine generator

Question:

Do you provide OEM or ODM service?

Answer:

Yes, in Hosem Power, we have R&D department which professional in resolving any tailored needs of our Customers, OEM and ODM are available.
