75kVA 60kw Super Silent Perkins Generator Set Four Cylinders
75kVA 60kw Super Silent Perkins Generator Set Four Cylinders
75kVA 60kw Super Silent Perkins Generator Set Four Cylinders
75kVA 60kw Super Silent Perkins Generator Set Four Cylinders
75kVA 60kw Super Silent Perkins Generator Set Four Cylinders
75kVA 60kw Super Silent Perkins Generator Set Four Cylinders
Specifications
Brand Name :
Hosem Power
Model Number :
A-P83HS
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 unit per month
Delivery Time :
30 days
Packaging Details :
Ply-wood or plastic film
Product Name :
Perkins Diesel Generator Set
Prime Power :
75kVA 60kW
Standby Power :
83kVA 66.4kW
Frequency :
60Hz
Voltage :
220/127V
Noise Level :
72dBA at 7M
Net Weight :
1160KG
Engine Brand :
Perkins 1104A-44TG1
Alternator Brand :
Stamford UCI224E
Controller Modul :
Deepsea DSE7320
Description

75kVA 60kw Super Silent Type Four Cylinders Diesel Power Electric Generator Set with Perkins Engine

Generator Set Specification
Model A-P83HS
Max. Power kVA 83
kW 66.4
Rate Power kVA 75
kW 60
Frequency Hz 60
Rate Voltage V 220/127
Rate Current A 196.8
Dimension For Open-type Genset mm 1860 X 750 X 1200
Weight For Open-type Genset kg 835
Dimension For Soundproof Genset mm 2400 X 950 X 1280
Weight For Soundproof Generator kg 1160

75kVA 60kw Super Silent Perkins Generator Set Four Cylinders

Product Description

Δ GENSET FEATURES

1. The new inlet and outlet air turn-back type design, reduces noise and improves engine efficiency.
2. The design is beautiful and practical. The bottom hole of the forklift, water outlet, and oil outlet are easy to maintain.
3. Double doors on both sides of the generator set which allow inspection of every part of the engine and alternator.
4. New design of Silent, Supper Silent, Soundproof, Trailer, and Container Diesel Generator Types.
5. Our generator sets comply with all major standards such as GB/T2820, ISO8528, and CE standards
6. We have a modern workshop that has advanced production lines and a complete set of inspection and testing equipment.
7. More than 50 Skilled assemblers are essential to ensure high quality.
8. With the flow card, carefully record every detail.
9. Test the engine for at least 45 minutes to tune it for the best.

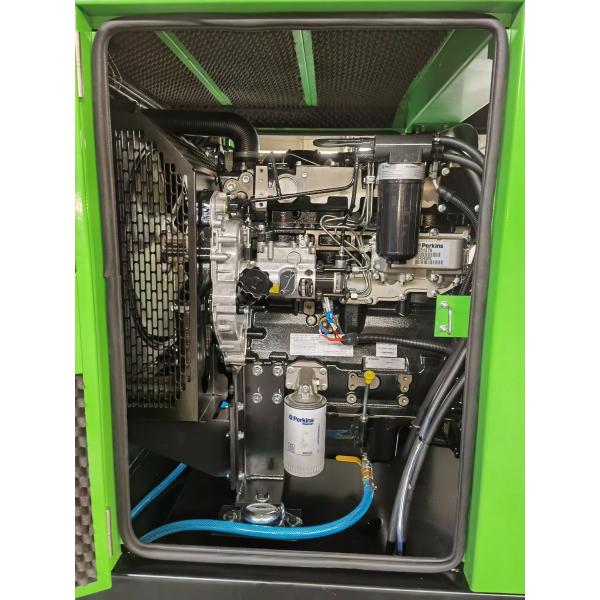

Engine Specification
Engine Manufacturer Perkins Engines Company Limited
Engine Brand Perkins
Engine Model 1104A-44TG1
No. of Cylinder 4 Cylinder in line
Aspiration Turbocharged
Governor Mechanical
Engine Max. Output Power kW 65.6
Displacement L 4.4
Starting Voltage V 12
Bore mm 105
Stroke mm 127
Lubrication Oil Capacity L 7

Alternator Specification
Alternator Manufacturer Cummins Generator Technologies
Alternator Model UCI 224 E
Alternator Brand Stamford
Rate Output kVA 75
Frequency Hz 60Hz
Altitude M ≤1000
Insulation Class H
Voltage Regulation SX460
Protection Grade IP23
Alternator for optional Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Control Panel Specification
Controller Brand Deepsea
Controller Model DSE7320
Breaker Brand Delixi
Breaker Capacity 80A
Battery Charger Supply
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc.
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Δ FAQ

Q1: Can you accept OEM orders?

A5: Yes, we have a professional design team and sincerely welcome OEM orders.

Q2: Which trade term can you accept?

A6: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q3: What are your payment terms?

A:30% T/T With Order, 70% balance paid by T/T before shipment.

Q4:What's the warranty time of diesel generators?

A:12 Months or 1000 working hours
