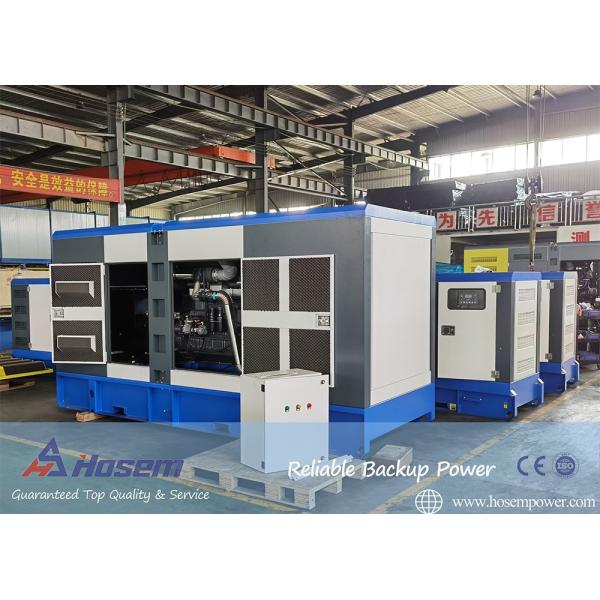

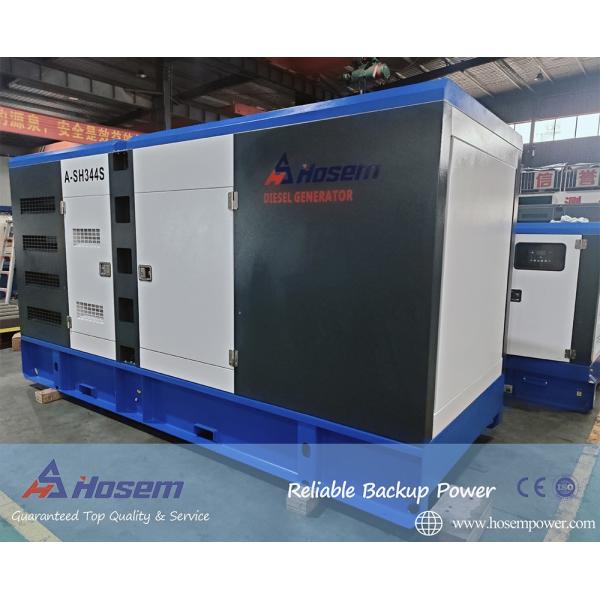

250kW 313kVA Emergency Prime Power Supply 50Hz 60Hz SDEC Engine Diesel Generator
250kW 313kVA Emergency Prime Power Supply 50Hz 60Hz SDEC Engine Diesel Generator
250kW 313kVA Emergency Prime Power Supply 50Hz 60Hz SDEC Engine Diesel Generator
250kW 313kVA Emergency Prime Power Supply 50Hz 60Hz SDEC Engine Diesel Generator
Specifications
Brand Name :
Hosem Power
Model Number :
A-SH344S
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 unit per month
Delivery Time :
30 days
Packaging Details :
Ply-wood or plastic film
Prime Power :
313kVA 250kW
Standby Power :
344kVA 275kW
Rated Speed :
1500rpm
No. of Cylinder :
6 Cylinder in line
Rated Voltage :
400/230V
Phase :
3-phase
Starting System :
Electric Start
Rate Current :
451.8A
Fuel Consumption :
68.1 Lts/H
Cooling System :
Water Cooled
Description

250kW 313kVA Emergency Prime Power Supply 50Hz 60Hz Generators Manufacturer with SDEC Engine

Product Description

Generator Set Specification
Model A-SH344S
Max. Power kVA 344.0
kW 275.2
Rate Power kVA 313.0
kW 250.4
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 451.8
Dimension For Open-type Genset mm 3000 X 1115 X 1880
Weight For Open-type Genset kg 2500
Dimension For Soundproof Genset mm 3900 X 1450 X 1950
Weight For Soundproof Generator kg 3550
Noise Level at 7 Meters dBA 75
Fuel Tank Capacity Liters 520
Battery Two of Free Maintenance Battery

Engine Specification
Engine Manufacturer Shanghai Diesel Engine Co., Ltd.
Engine Brand SDEC
Engine Model SC13G420D2
No. of Cylinder 6 Cylinder in line
Aspiration Turbocharged and Air to Air Aftercooled
Governor Electric
Engine Max. Output Power kW 310
Displacement L 12.880
Starting Voltage V 24
Bore mm 135
Stroke mm 150
Lubrication Oil Capacity L 33
Compression Ratio 15.5 : 1
Intake Air Flow M3/Min 17.8
Fuel Consumption at 100% Load L/H 65.2

Alternator Specification
Alternator Manufacturer Fuzhou Hosem Power Co., Ltd.
Alternator Model ASF314ES
Alternator Brand Hosem
Rate Output kVA 312
Frequency Hz 50Hz
Current A 450.3
Insulation Class H
Voltage Regulation KRS440B
Protection Grade IP23
Working Temperature without Output Decrease ≤1000m
Phase 3 Phase
Temperature Rise 125 Degree Celsius
Alternator for optional Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Control Panel Specification
Controller Brand Deepsea
Controller Model DSE7320
Breaker Brand Delixi
Breaker Capacity A 630
Battery Charger Smartgen Model BAC06A
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
Mains Monitor Supply with AMF Function
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Product Features

1. 313kVA SDEC diesel genset has a daily fuel tank that is continuously supplied for 8 hours, which is welding integral to the base frame.


2. 250kW Emergency Prime Power Supply 50Hz 60Hz soundproof Generator Sets canopy are painted with electrostatic polyester powder paint.


3. Flame-retardant soundproof cotton ensures that the noise level is controlled in a small scope.


4. The design of the soundproof canopy makes it convenient to lift and move, and easy to maintain and operate.


5. Beautiful & practicably designed for diesel generator sets of open type, soundproof type, container type, and mobile trailer type.


6. Equipped with automatic shutdown systems for low oil pressure, high coolant temperature, and overload protection, ensuring safe and reliable operation under all conditions.

7. The genset features double access doors on the canopy, providing easy access for routine maintenance and servicing, and reducing downtime and maintenance costs.

250kW 313kVA Emergency Prime Power Supply 50Hz 60Hz SDEC Engine Diesel Generator

250kW 313kVA Emergency Prime Power Supply 50Hz 60Hz SDEC Engine Diesel Generator

Choose the 250kW 313kVA SDEC Engine Diesel Generator Set for a dependable, continuous power solution that delivers exceptional performance and ease of use. Contact us today to learn more about the details!
