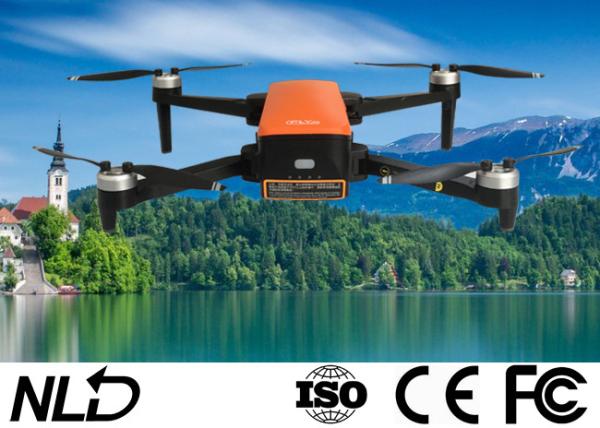

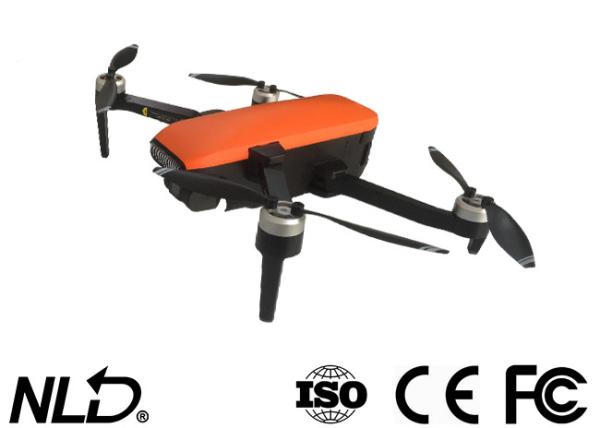

Remote Control Aerial Camera Drone For Aerial Photography SONY CMOS Sensor
Remote Control Aerial Camera Drone For Aerial Photography SONY CMOS Sensor
Remote Control Aerial Camera Drone For Aerial Photography SONY CMOS Sensor
Remote Control Aerial Camera Drone For Aerial Photography SONY CMOS Sensor
Specifications
Brand Name :
NLD
Model Number :
NTA-CFLY
Certification :
ISO9001 CE FCC
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Box
Type :
Remote Control Camera Drone
Sensor :
Ambarella A12, SONY CMOS
Max Fight Time :
35mins
Satellite Positioning Systems :
GPS/GLONASS
Wheelbase :
280mm
Maximum Flight Height :
120m(Maxumum 500m(Need to change setting on app))
Description

NTA-CFLY Quadcopter Remote Control 4KB SONY CMOS Aerial Carmera Drone

Specification
Aircraft Size(Unfold) 180*255*74mm(L*W*H)

Size(Fold)

170*108*74mm(L*W*H)
Wheelbase 280mm
Weight 515g
Max Descent Speed Clam mode: 1.5m/s
Normal mode: 1.5m/s
Sport mode: 2m/s
Max Ascent Speed

Clam mode: 2m/s
Normal mode: 2m/s
Sport mode: 5m/s
Max Speed Clam mode: 5m/s

Normal mode: 10m/s

Sport mode: 19m/s
Max Service Ceiling Above Sea 5000m
Operating Temperature Range 0℃-40℃
Max Fight Time 35mins
Maximum Flight Height 120m(Maxumum 500m(Need to change setting on app))
Satellite Positioning Systems GPS/GLONASS
Hover Accuracy Range

Vertiacl: +/-0.5m±0.2m(ultrasonic system, optical flow system works)
Horizonal: +/-1.5m±0.3m(ultrasonic system, optical flow system works)
Charger Rated Power 10W
Output 4.35V 0.7A*3
Input 5V 2A(recommend)
Camera (Sensor SONY CMOS) Sensor Ambarella A12, SONY CMOS
Video Recording Resolution 3840*2160
Supported File Systems FAT32(<=32GB)/exFAT(>32GB)
Operating Temperature Range 0℃-40℃
Image Size 5120*3840(20MP)
Maximum Video Bit 60Mbps
Supported SD Cards Micro SDTM Max capacity: 128GB, UHS-I Speed Grade 3 rating required
Shooting mode Single shot
Video MP4
Photo JPEG
Optical flow system Velocity Range ≤1.5m/s at 6.6 ft (2m) above ground
Operating Environment Surface with clear pattern and adequate lighting(lux>15)
Altitude Range 0.2-4.5m
Ultrasonic altitude system Operating Except for surface of water or ground of absorbing material(such as thick carpet)
Altitude Range 0.2-4.5m
Velocity Range ≤3m/s
Remote Controller Operating Frequency 5.8GHz
Operating Current/Voltage 500mA @ 3.7V
Battery Capacity(built-in) 3.7V
Supported Mobile Device Size Thickness Supported: 6.5-8.5mm
Battery Power 9.62Wh
Max Transmission Distance 5000m
Capacity 2600mAh
Charge Time <3h(with 5V 2A adapter)
Charge USB
Maximun Charge Power 5W
Transmitter Power(EIRP) SRRC: ≤20dBm
FCC: ≤23dBm
CE: ≤14dBm
Battery Type LiPo 18650 1S
Operating Temperature Range 0℃-40℃
Battery Capacity 3100mAh
Charging Temperature Range 0℃-40℃
Energy 35.34Wh
Battery Type LiPo 3S
Net Weight 196g
Charge time <5h(with 5V 2A adapter)
Max charging power 35W
Voltage 11.4V
3-Axis Gimbal (Fixed Height 3-Axis Micro Gimbal) Controllable Pitch -90°-0°
Stabilization Pitch +30/-120°
Roll ±35°
Yaw ±30°
APP Mobile APP C-Fly 2
Live View Quality 720P
Aerial Photography mode dronie, rocket, circle, helix
Required Operating Systems Andrio 5.0 above, ISO 9.0 above
FPV Transmission Distance 5000m
