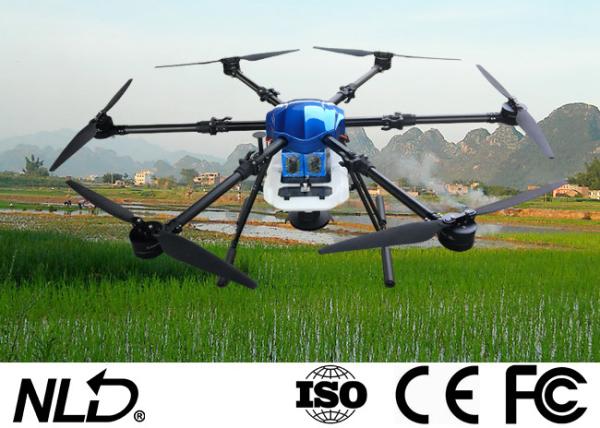

6 Rotors Agricultural Fertilizer Spraying Drone Flying Distance 5000m Remote Control
6 Rotors Agricultural Fertilizer Spraying Drone Flying Distance 5000m Remote Control
6 Rotors Agricultural Fertilizer Spraying Drone Flying Distance 5000m Remote Control
6 Rotors Agricultural Fertilizer Spraying Drone Flying Distance 5000m Remote Control
Specifications
Brand Name :
NLD
Model Number :
NSA-610
Certification :
ISO9001 CE FCC
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Aluminum Box
Type :
Agricultural Fertilizer Spraying Drone
Hovering accuracy vertical :
+/- 0.5m
Flying Time (with payload) :
10~15min
Solid particles :
0.5~6mm
Remote Controller :
Remote control + digital transmission 5.5” screen + Android + ground workstation
Battery / Quantity :
6S/22000mAh / 2pcs
Description

NSA-610 6 Rotors Agricultural Fertilizer Spraying Drone Flying Distance 5000m

DescriptionNSA610NSA622
Aircraft Frame6 rotors6 rotors
Flight Controller (RC)√√
GPS Dot Device√√
Motor6*180KV6*100KV
Electronic Speed Control (ESC)6*80A6*80A
Foldable propeller6*23886*3090
Pesticide Tank10L22L
Spreading SystemMotor + door opening + lack of material detection
Remote ControllerRemote control + digital transmission 5.5” screen + Android + ground workstation
Charger (NFC15)650w 15A dual channel
Battery2*22000mAh2*22000mAh
Aluminum Case√√

ModelNSA610NSA622
Rotor66

Hovering accuracy
horizontal

+/- 1.5m+/- 1.5m

Hovering accuracy
vertical

+/- 0.5m+/- 0.5m
Wind resistance4～54～5
Motor6*180KV6*100KV
Electronic Speed Control80A80A
Motor applicable temperature-20～50℃-20～50℃
Paddle23883090
Feed Tank10L22L
Take-off Capacity30kg42kg
Flying Time (with payload)10~15min10~15min
Flying distance5000m5000m
Working distance2000m2000m
Flying Speed0~10m/s0~10m/s
Spreading Width3~6m3~6m
Spread Distance2~5m2~5m
Solid particles0.5~6mm0.5~6mm
Expand Size1992*1992*562mm2428*2428*600mm
Wheelbase1407mm1648mm
Folded Size945*848*562mm1102*979*600mm
Battery / Quantity6S/22000mAh / 2pcs6S 22000mAh / 2pcs
FPV CameraOptionalOptional
Obstacle avoidance radarOptionalOptional
Terrain following radarOptionalOptional
RTK centimeter positioningOptionalOptional


APP Ground Workstation
1. Android mobile phone ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video.
2. Support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back.
3. Query job record, flight time, spray width, dose etc.

Integrated power system
1. Support system upgrade
2. Sturdy, reliable and impact resistant
3. Highlight the LED display
4. High lift, high efficiency propeller
5. Intelligent multiple redundancy protection, running data real-time output
6. Modular design, easy maintenance
7. Super protection, easy to deal with the harsh environment of plant protection

8. The PMSM algorithm based on FOC is optimized to create a perfect dynamic system
