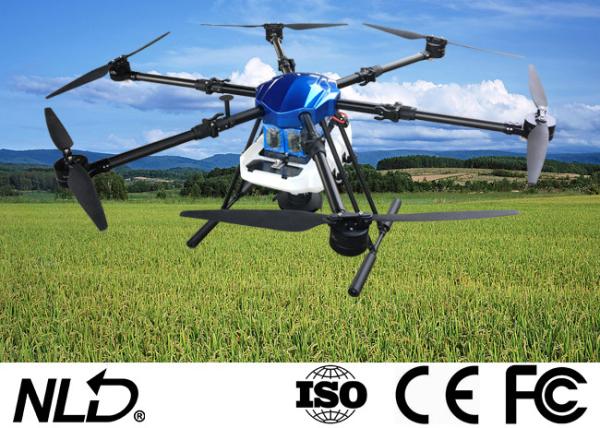

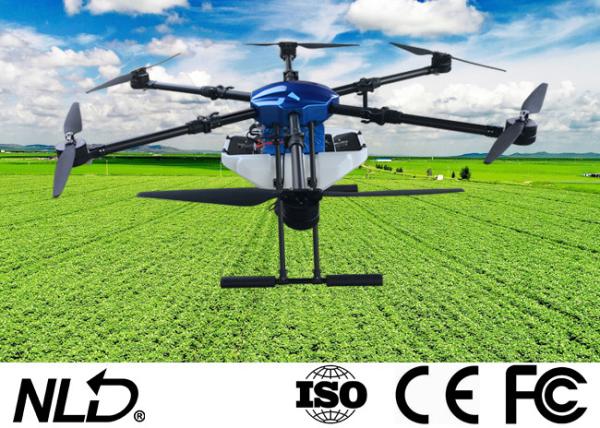

1.5m Fertilizer Spraying Drone With 6*80A Electronic Speed Control
1.5m Fertilizer Spraying Drone With 6*80A Electronic Speed Control
1.5m Fertilizer Spraying Drone With 6*80A Electronic Speed Control
1.5m Fertilizer Spraying Drone With 6*80A Electronic Speed Control
Specifications
Brand Name :
NLD
Model Number :
NSA-610
Certification :
ISO9001 CE FCC
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Aluminum Box
Aircraft Frame :
6 rotors
Motor :
6*180KV
Spreading System :
Motor + door opening + lack of material detection
Remote Controller :
Remote control + digital transmission 5.5” screen + Android + ground workstation
Hovering accuracy horizontal :
+/- 1.5m
Hovering accuracy vertical :
+/- 0.5m
Description

NSA-610 Fertilizer Spraying Drone With 6*80A Electronic Speed Control

ModelNSA410NSA422NSA610NSA622
Rotor4466

Hovering accuracy
horizontal

+/- 1.5m+/- 1.5m+/- 1.5m+/- 1.5m

Hovering accuracy
vertical

+/- 0.5m+/- 0.5m+/- 0.5m+/- 0.5m
Wind resistance4～54～54～54～5
Motor4*100KV4*110KV6*180KV6*100KV
Electronic Speed Control80A120A80A80A
Motor applicable temperature-20～50℃-20～50℃-20～50℃-20～50℃
Paddle3090341123883090
Feed Tank10L22L10L22L
Take-off Capacity28kg38kg30kg42kg
Flying Time (with payload)10~15min10~15min10~15min10~15min
Flying distance5000m5000m5000m5000m
Working distance2000m2000m2000m2000m
Flying Speed0~10m/s0~10m/s0~10m/s0~10m/s
Spreading Width3~6m3~6m3~6m3~6m
Spread Distance2~5m2~5m2~5m2~5m
Solid particles0.5~6mm0.5~6mm0.5~6mm0.5~6mm
Expand Size1780*1780*567mm1848*1848*628mm1992*1992*562mm2428*2428*600mm
Wheelbase1362mm1416mm1407mm1648mm
Folded Size700*658*567mm648*671*628mm945*848*562mm1102*979*600mm
Battery / Quantity6S/22000mAh / 2pcs6S/22000mAh / 2pcs6S/22000mAh / 2pcs6S 22000mAh / 2pcs
FPV CameraOptionalOptionalOptionalOptional
Obstacle avoidance radarOptionalOptionalOptionalOptional
Terrain following radarOptionalOptionalOptionalOptional
RTK centimeter positioningOptionalOptionalOptionalOptional

DescriptionNSA410NSA422NSA610NSA622
Aircraft Frame4 rotors4 rotors6 rotors6 rotors
Flight Controller (RC)√√√√
GPS Dot Device√√√√
Motor4*100KV4*110KV6*180KV6*100KV
Electronic Speed Control (ESC)4*80A4*120A6*80A6*80A
Foldable propeller4*30904*34116*23886*3090
Pesticide Tank10L22L10L22L
Spreading SystemMotor + door opening + lack of material detection
Remote ControllerRemote control + digital transmission 5.5” screen + Android + ground workstation
Charger (NFC15)650w 15A dual channel
Battery2*22000mAh2*22000mAh2*22000mAh2*22000mAh
Aluminum Case√√√√


Usage:
Agricultural Fertilizer Drone
Flight Controller: 2 CPU + 3 IMU
Tank: 10L 22L
Material: Carbon Fiber + Aviation Aluminum
Flight time: 10-15 Minutes
Spreading width: 3-6m
Solid particles: 0.5~6mm
Lead Time: 15days
