Specifications
Brand Name :
NLD
Model Number :
NSA-410
Certification :
ISO9001 CE FCC
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Aluminum Box
Type :
Remote Control Agriculture Drone
Material :
Carbon Fiber + Aviation Aluminum
Motor applicable temperature :
-20~50℃
Expand Size :
1780*1780*567mm
Solid particles :
0.5~6mm
Flying Speed :
0~10m/s
Description

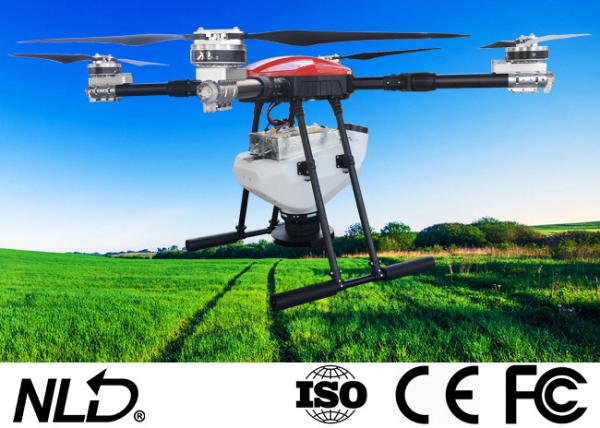

Fertilizer Spraying Drone Remote Control Agriculture Drone With 4*100KV Motor

Model NSA410
Rotor 4

Hovering accuracy

horizontal

+/- 1.5m

Hovering accuracy

vertical

+/- 0.5m
Wind resistance 4~5
Motor 4*100KV
Electronic Speed Control 80A
Motor applicable temperature -20~50℃
Paddle 3090
Feed Tank 10L
Take-off Capacity 28kg
Flying Time (with payload) 10~15min
Flying distance 5000m
Working distance 2000m
Flying Speed 0~10m/s
Spreading Width 3~6m
Spread Distance 2~5m
Solid particles 0.5~6mm
Expand Size 1780*1780*567mm
Wheelbase 1362mm
Folded Size 700*658*567mm
Battery / Quantity 6S/22000mAh / 2pcs
FPV Camera Optional
Obstacle avoidance radar Optional
Terrain following radar Optional
RTK centimeter positioning Optional

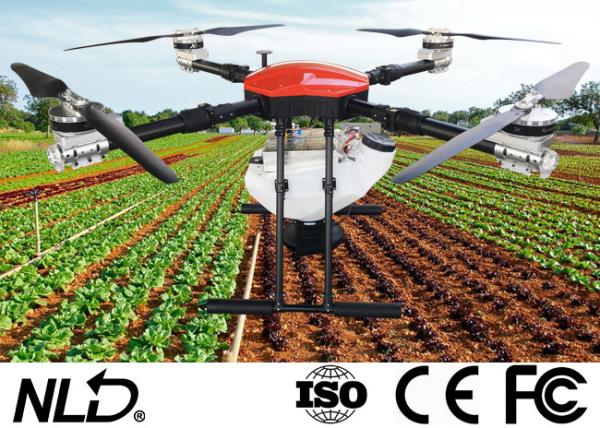

Remote Control Fertilizer Spraying Drone 6mm Agriculture With 4*100KV Motor

Advantage

1. High efficiency of UAV operation: on average, UAV operation takes only 2 ~ 4 minutes per mu. Compared with traditional manual fertilization, the efficiency is improved by nearly 30 ~ 60 times, which not only has high efficiency, but also saves labor and reduces cost.

2. Safer UAV operation: UAV flying prevention operation realizes the separation of human, fertilizer and medicine. Through flying prevention and plant protection, the flying hand can operate remotely, avoiding the risk of close contact with pesticides and fertilizers.

3. Weight loss and efficiency enhancement are more environmentally friendly: UAV operation is in line with the promotion of national water and fertilizer integration, and adopts foliar topdressing, spraying evenly, avoiding direct contact with soil, saving water and environmental protection.

4. Achieve accurate operation, avoid repeated spraying, missing spraying and ineffective spraying, and ensure the accurate use of fertilizer.

Other accessories

Obstacle Avoidance Radar

Obstacle avoidance radar is mainly used to measure the relative distance between the UAV and the obstacle in front of the flight, so as to effectively avoid the obstacle. Obstacle avoidance radar adopts 24GHZ radar technology, which can work all-weather under the environment of strong light, high temperature, fog, dust, wind and night. Its sensitivity is high, the detection distance is long, the signal transmission is fast and stable, and it can detect a diagonal pull of more than 1cm Electric wires, small trees with 10cm trunks, 1.7m high people and 15cm electric poles, have a good obstacle avoidance function for high-speed running drones, and are very suitable for plant protection drones to operate in complex outdoor environments.

Characteristic:

1. High sensitivity

2. Far detection distance

3. Signal transmission is fast and stable

4. All day work

5. Strong environmental adaptability
