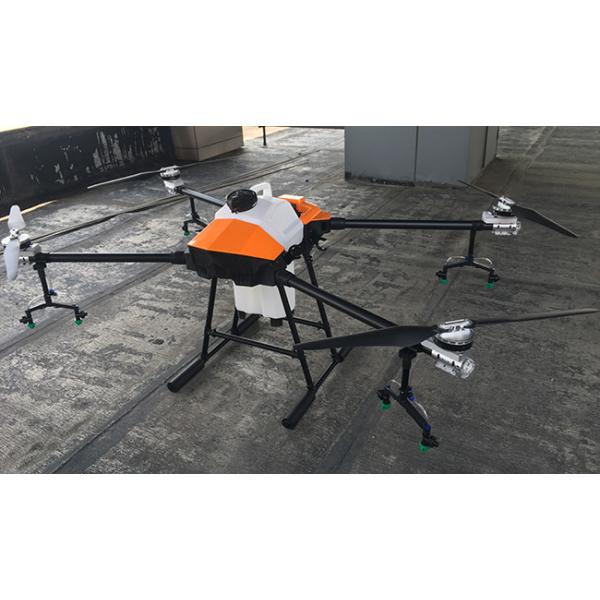

Remote Controller Agriculture Spraying Drone UAV For Plant Protection
Remote Controller Agriculture Spraying Drone UAV For Plant Protection
Remote Controller Agriculture Spraying Drone UAV For Plant Protection
Remote Controller Agriculture Spraying Drone UAV For Plant Protection
Specifications
Brand Name :
NLD
Model Number :
NLB-420
Certification :
ISO9001 CE FCC
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Box
Type :
Agriculture Spraying Drone for Plant Protection
Take-off Capacity :
42kg
Charger :
Dual channel charger
Electronic Speed Control :
150A
Foldable propeller :
3612
Wheelbase :
2029mm
Description

Agriculture Spraying Drone for Plant Protection with Remote Controller

No. Description NLB420 NLB620 NLB626 NLB630
1 Aircraft Frame 4 rotors 6 rotors 6 rotors 6 rotors
2 Flight Controller √ √ √ √
3 GPS Dot Device √ √ √ √
7 Pesticide Tank 20L 20L 26L 30L
8 Spray System Water pump + flow meter + water pipe + nozzle
9 Remote Controller Remote control + digital transmission 5.5” screen + Android + ground workstation
10 Charger Dual channel charger
11 Battery 14S 22000mAh 14S 22000mAh 14S 25000mAh 14S 28000mAh
12 Aluminum Case √ √ √ √

Quick Details
Flight controller: 2CPU + 3 IMU
Material: Carbon Fiber + Aviation Aluminum
Flight time: 15~20minutes
Spray width: 3~5m
Spray efficiency: 11~18 Ha/hour
Lead time: 15days
Tank: 20/26/30L
Work mode: Manual / Workstation

Product Description

Hovering accuracy

horizontal

 +/- 1.5m

Hovering accuracy

vertical

 +/- 0.5m
Foldable propeller 3612
Spray Flow 1.2~2L/min
Motor 4*100KV
Spray Efficiency 1500~2400sqm/min
Motor applicable temperature -20～50
Flying distance 5000m
Electronic Speed Control 150A
Battery / Quantity 14S/22000mAh
Flying Time (with payload) 15~20min
Wheelbase 2029mm
Working distance 2000m
Flying Speed 0~10m/s
Spray Width 3.5~4m
Wind resistance 4～5
Take-off Capacity 42kg
Folded Size 1150*600*700mm
Terrain following radar Optional
RTK centimeter positioning Optional
Obstacle avoidance radar Optional
FPV Camera Optional

Remote Controller Agriculture Spraying Drone UAV For Plant Protection

Ground Defense Radar

Ground defense radar uses millimeter-wave radar technology. Through the continuous scanning of the radar, the drone can sense the terrain change of the flight direction and adjust the flight height in time according to the terrian and the crop height to realize the ground defense flight and ensuring uniform spraying in flight. Ground defense radar has stable detection performance and good environment practicality, strong anti-interference ability, not affected by light, far detection distance, with all-weather and all-day characteristics.

Characteristic:

1. Strong penetration, not affected by light.

2.Strong anti-interference ability and good environmental applicability.

3. Stable performance with detection range of 15m.

4. Power saving and efficient, total power consumption is only 1.5W 4. 5. All day work.
