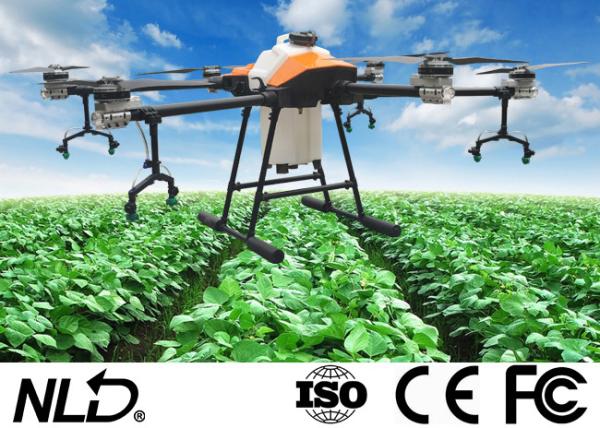

NLB - 626 6 Rotors Agriculture Spraying Drone Carbon Fiber Pesticide Tank 26L
NLB - 626 6 Rotors Agriculture Spraying Drone Carbon Fiber Pesticide Tank 26L
NLB - 626 6 Rotors Agriculture Spraying Drone Carbon Fiber Pesticide Tank 26L
NLB - 626 6 Rotors Agriculture Spraying Drone Carbon Fiber Pesticide Tank 26L
Specifications
Brand Name :
NLD
Model Number :
NLB-626
Certification :
ISO9001 CE FCC
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Aluminum Box
Type :
NLB-626 6 Rotors Agriculture Spraying Drone
Charger :
Dual channel charger
Remote Controller :
Remote control + digital transmission 5.5” screen + Android + ground workstation
Material :
Carbon Fiber + Aviation Aluminum
Spray efficiency :
11~18 Ha/hour
Spray Efficiency :
1500~2400sqm/min
Description

NLB-626 6 Rotors Agriculture Spraying Drone Pesticide Tank 26L

Model NLB626
Rotor 6

Hovering accuracy

horizontal

 +/- 1.5m

Hovering accuracy

vertical

 +/- 0.5m
Wind resistance 4～5
Motor 6*100KV
Electronic Speed Control 150A
Motor applicable temperature -20～50
Foldable propeller 3612
Pesticide Tank 26L
Take-off Capacity 63kg
Flying Time (with payload) 15~20min
Flying distance 5000m
Working distance 2000m
Flying Speed 0~10m/s
Spray Width 3.5~4m
Spray Flow 1.2~2L/min
Spray Efficiency 1500~2400sqm/min
Wheelbase 2018mm
Folded Size 1150*600*700mm
Battery / Quantity 14S/25000mAh
FPV Camera Optional
Obstacle avoidance radar Optional
Terrain following radar Optional
RTK centimeter positioning Optional

J-RTK centimeter-level precision positioning system

NLB - 626 6 Rotors Agriculture Spraying Drone Carbon Fiber Pesticide Tank 26L

  • J-RTK is a new generation of high-precision navigation and positioning system.
  • It uses real-time dynamic difference technology to improve the three-dimensional positioning accuracy from meters to centimeters.
  • It makes up for the shortcomings of traditional GPS and barometer solutions, and provides an accurate and reliable positioning solution for high-precision applications.
  • J-RTK has the characteristics of high positioning accuracy and strong anti electromagnetic interference ability.
  • It can also ensure reliable operation in strong magnetic interference environment such as high-voltage lines and metal buildings.

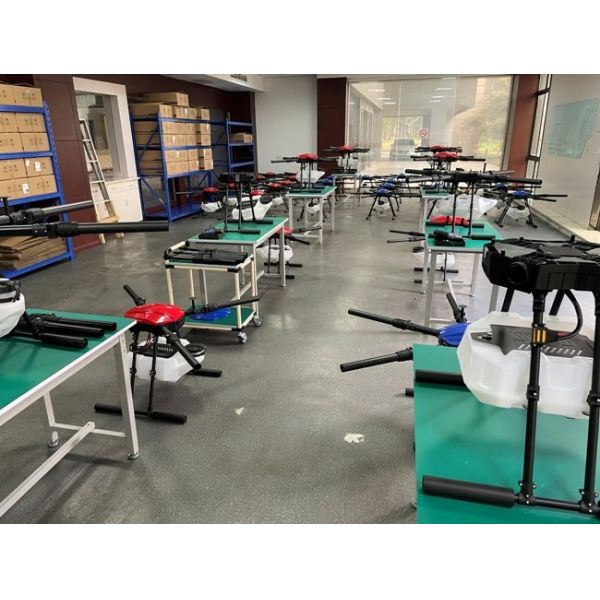

Workshop display

NLB - 626 6 Rotors Agriculture Spraying Drone Carbon Fiber Pesticide Tank 26L

Other Models

Model NLB420 NLB620 NLB630
Rotor 4 6 6

Hovering accuracy

horizontal

 +/- 1.5m +/- 1.5m +/- 1.5m

Hovering accuracy

vertical

 +/- 0.5m +/- 0.5m +/- 0.5m
Wind resistance 4～5 4～5 4～5
Motor 4*100KV 6*110KV 6*100KV
Electronic Speed Control 150A 150A 150A
Motor applicable temperature -20～50 -20～50 -20～50
Foldable propeller 3612 3411 3612
Pesticide Tank 20L 20L 30L
Take-off Capacity 42kg 54kg 63kg
Flying Time (with payload) 15~20min 15~20min 15~20min
Flying distance 5000m 5000m 5000m
Working distance 2000m 2000m 2000m
Flying Speed 0~10m/s 0~10m/s 0~10m/s
Spray Width 3.5~4m 3.5~4m 3.5~4m
Spray Flow 1.2~2L/min 1.2~2L/min 1.2~2L/min
Spray Efficiency 1500~2400sqm/min 1500~2400sqm/min 1500~2400sqm/min
Wheelbase 2029mm 2018mm 2018mm
Folded Size 1150*600*700mm 1150*600*700mm 1150*600*700mm
Battery / Quantity 14S/22000mAh 14S/22000mAh 14S/28000mAh
