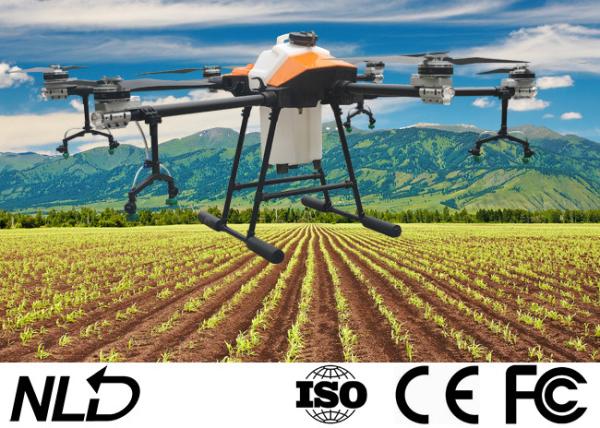

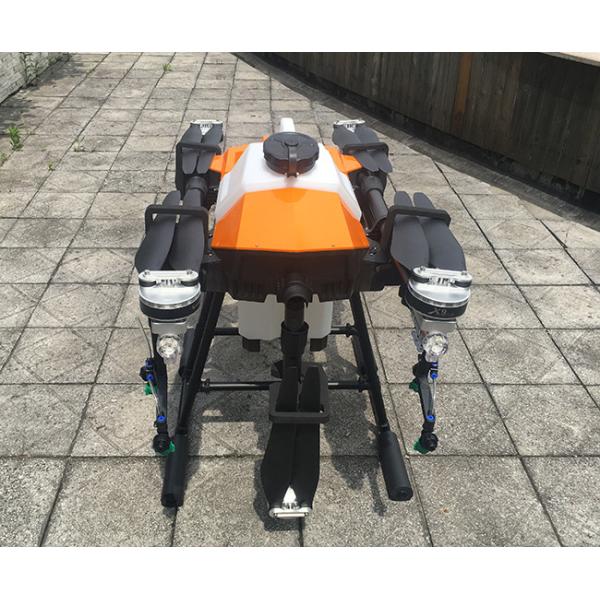

NLB-620 20L Pesticide Tank Plant Protection Drone For Farm
NLB-620 20L Pesticide Tank Plant Protection Drone For Farm
NLB-620 20L Pesticide Tank Plant Protection Drone For Farm
NLB-620 20L Pesticide Tank Plant Protection Drone For Farm
Specifications
Brand Name :
NLD
Model Number :
NLB-620
Certification :
ISO9001 CE FCC
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Box
Type :
Agriculture Spraying Drone
Motor applicable temperature :
-20～50
Foldable propeller :
3411
Flying Time (with payload) :
15~20min
Flying Speed :
0~10m/s
Spray Flow :
1.2~2L/min
Description

NLB-620 Agriculture Spraying Drone Pesticide Tank 20L for Farm

Quick Details

  • Model: NLB-620
  • Spray System: Water pump + flow meter + water pipe + nozzle
  • Remote Controller: Remote control + digital transmission 5.5” screen + Android + ground workstation
  • Charger: Dual channel charger

Chassis of Drone

Fully waterproof fuselage

The fuselage adopts the integrated waterproof design, supports washing (Excluding motor and battery parts), and the shell surface adopts the star-bright blue coating, with beautiful shape and eye-catching color.

New folding part

The unique C-type arm fixing clip design. It can be used to fix the arm after the arm is folded, avoiding the problems such as arm swing and sag in the process of handling.

The whole machine (except for the motor and battery) is dust-proof and waterproof, and the waterproof level reaches IP65. Can be washed directly with water

Model NLB420 NLB620 NLB626 NLB630
Rotor 4 6 6 6

Hovering accuracy

horizontal

 +/- 1.5m +/- 1.5m +/- 1.5m +/- 1.5m

Hovering accuracy

vertical

 +/- 0.5m +/- 0.5m +/- 0.5m +/- 0.5m
Wind resistance 4～5 4～5 4～5 4～5
Motor 4*100KV 6*110KV 6*100KV 6*100KV
Electronic Speed Control 150A 150A 150A 150A
Motor applicable temperature -20～50 -20～50 -20～50 -20～50
Foldable propeller 3612 3411 3612 3612
Pesticide Tank 20L 20L 26L 30L
Take-off Capacity 42kg 54kg 63kg 63kg
Flying Time (with payload) 15~20min 15~20min 15~20min 15~20min
Flying distance 5000m 5000m 5000m 5000m
Working distance 2000m 2000m 2000m 2000m
Flying Speed 0~10m/s 0~10m/s 0~10m/s 0~10m/s
Spray Width 3.5~4m 3.5~4m 3.5~4m 3.5~4m
Spray Flow 1.2~2L/min 1.2~2L/min 1.2~2L/min 1.2~2L/min
Spray Efficiency 1500~2400sqm/min 1500~2400sqm/min 1500~2400sqm/min 1500~2400sqm/min
Wheelbase 2029mm 2018mm 2018mm 2018mm
Folded Size 1150*600*700mm 1150*600*700mm 1150*600*700mm 1150*600*700mm
Battery / Quantity 14S/22000mAh 14S/22000mAh 14S/25000mAh 14S/28000mAh
FPV Camera Optional Optional Optional Optional
Obstacle avoidance radar Optional Optional Optional Optional
Terrain following radar Optional Optional Optional Optional
RTK centimeter positioning Optional Optional Optional Optional

NLB-620 20L Pesticide Tank Plant Protection Drone For Farm

APP Ground Workstation
  • Android mobile phone ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video.
  • Support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back.
  • Query job record, flight time, spray width, dose etc.
