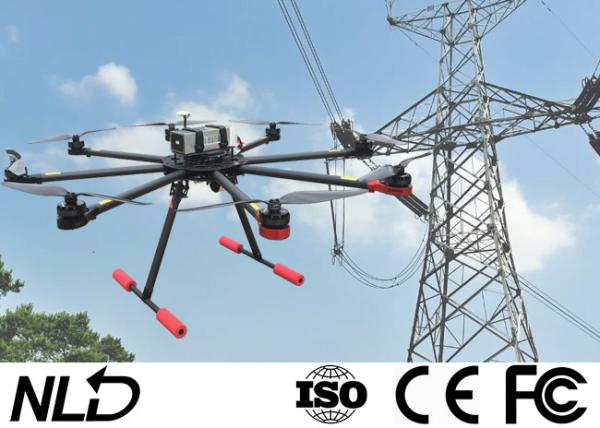

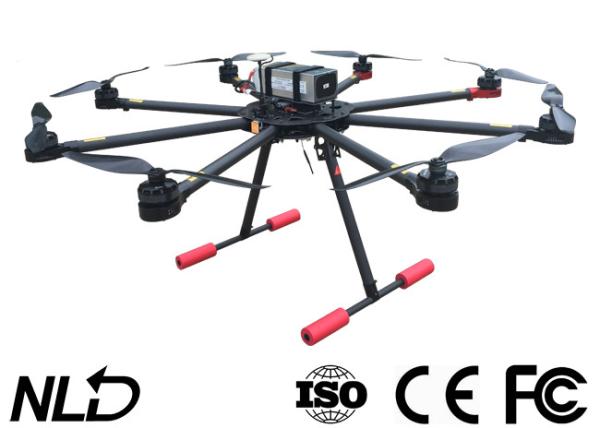

CE UAV DJI NAZA Powerline Drone For Transmission Line Cable Construction
CE UAV DJI NAZA Powerline Drone For Transmission Line Cable Construction
CE UAV DJI NAZA Powerline Drone For Transmission Line Cable Construction
CE UAV DJI NAZA Powerline Drone For Transmission Line Cable Construction
Specifications
Brand Name :
NLD
Model Number :
NPA-805H-9
Certification :
ISO9001 CE FCC
Place of Origin :
China
MOQ :
1set
Price :
Negotible
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
100sets/month
Delivery Time :
20days
Packaging Details :
Aluminum Box
Flight control :
DJI NAZA
Name :
Drone for transmission line cable construction
Use :
String Pilot rope
Rotor :
8 rotors
Arm folding :
Arm foldable
Battery :
Tattu 16000mAh lithium battery
Description

Profession UAV Transmission Line Cable Construction Mission Drone Reliable with Tattu Lithium Battery and Take-up Reel

CE UAV DJI NAZA Powerline Drone For Transmission Line Cable Construction

Specification:

Model: NPA-805H
Working Temperature -5℃~50℃ Pilot rope 2~4mm
Flying speed Maxinum 15m/min Flight mode ATT; GPS; Manual
Fail-Safe Dji system GPS Dji GPS
Maximum tension 8kg No-load endurance 25-30min
Maximum take-off weight 14kg Load endurance 12-18min
Empty weight 4kg Battery 16000mAh 6S
Maximum flight distance 2-4km Flight height 0-1000m (adjustable)
Axle distance/Full height 1080mm/450mm Camera with 720P camera
Function:
GPS positioning Full-auto return Semi-auto return
Runaway protection Headless mode Heading lock
Low-voltage protection alarm Battery power backhaul National exclusive high beam function
OSD flight data real-time backhaul

Component
1 Drone DJI NAZA V2 flight control 1 set
2 Dual channel lithium battery charger 1 set
3 Professional remote control 1 set
4 16000mAh Tattu battery 2 pcs
5 Remote control battery with charger 1 pcs
6 Battery voltage checker 1 set
7 Tool kits 1 set
8 Aviation AL box 1 pcs
9 Spare screws 1 pack
10 Backup battery strap 4 pcs
11 Spare propeller 8 pcs
12 6.5" display mobile phone 5M + 13M camera 1 set

Remote control

Remote Controller details:
Working voltage 4.2V Working Current 100mA
Frequency 2.400-2.483GHz Modulation New FHSS
Firmware APP online Weight 525g
Dimension 160*150*50mm Battery Capacitor 4000mA
Duration 10(Hours) Charge Port Micro-USB
Receiver Specifications
Model RIO Size 50*31*12mm
Working Current 100mA Weight 20g
Working voltage 4.5~5.5V Channels 10
Camera Specifications
Gimbal Single axis Size 71*51*48mm
Controllable rotation range Pitch +10°~90° Weight 67g
Working Current 180mA Working temperature -10°C~50°C

Notes:

1. The above configuration remote control, flight control, battery, charger are branded accessories, better quality and more powerful. Equipped with Tatty brand batteries, DJI brand flight control. If the amount of engineering is large and the drone needs to work for more long time, you can contact us at any time in the later stage.

2. Our drone function covers all the functions in the market. The features include but are not limited to: GPS positioning, semi-automatic return, fully automatic return, headless mode, locked heading, low voltage protection alarm, out of control return, on-board electrical display, high beam, camera OSD return (data information like: power voltage, aircraft Distance from home point, control mode, out-of-control protection status, attitude in pitch direction, attitude in roll direction, flight speed, number of satellites, nose pointing, vertical speed, attitude line, compass error prompt, azimuth angle, airport flight limit prompt ...)

More photos

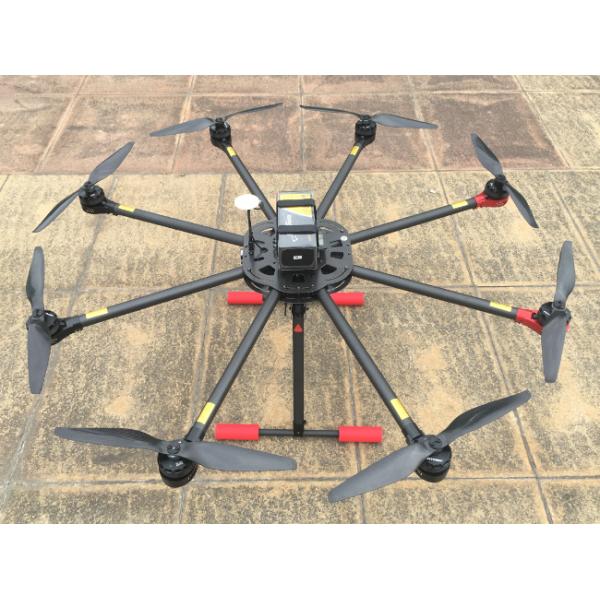

CE UAV DJI NAZA Powerline Drone For Transmission Line Cable Construction

CE UAV DJI NAZA Powerline Drone For Transmission Line Cable Construction

Tattu battery

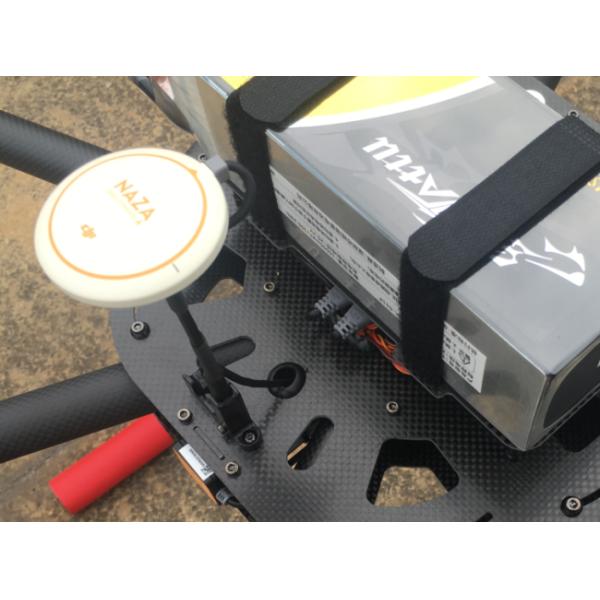

DJI NAZA V2 flight control system

CE UAV DJI NAZA Powerline Drone For Transmission Line Cable Construction

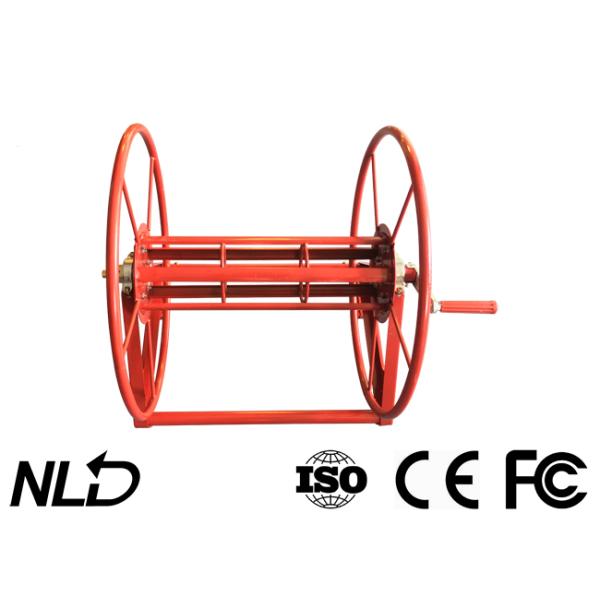

Take-up reel
