NiCd NiMH Pb LiFe Lilon CE LiPo LiHV Dual Battery Charger
NiCd NiMH Pb LiFe Lilon CE LiPo LiHV Dual Battery Charger
NiCd NiMH Pb LiFe Lilon CE LiPo LiHV Dual Battery Charger
NiCd NiMH Pb LiFe Lilon CE LiPo LiHV Dual Battery Charger
Specifications
Brand Name :
NLD
Model Number :
D2-2
Certification :
ISO9001 CE FCC
Place of Origin :
China
MOQ :
1set
Price :
Negotible
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
100sets/month
Delivery Time :
20days
Packaging Details :
Carton
Name :
Dual channel battery charger
Support battery type 1 :
LiFe
Support battery type 2 :
Lilon
Support battery type 3 :
Lihv
Support battery type 4 :
LiPo
Support battery type 5 :
LiMH/Cd Pb
Description

Dual Channel Charger for Battery Charger Support Type NiCd NiMH Pb LiFe Lilon LiPo LiHV

NiCd NiMH Pb LiFe Lilon CE LiPo LiHV Dual Battery Charger

Default Battery Type of Charger and Task Parameters

NiCd/NiMH

Pb

LiFe

Lilon

LiPo

LiHv

Rated Voltage

1.20V

2.00V

3.20V

3.60V

3.70V

3.80V

Full Charge Voltage

1.40V

2.46V

3.65V

4.10V

4.20V

4.35V

Storage Voltage

Not supported

Not supported

3.30V

3.70V

3.80V

3.85V

Discharge Voltage

1.10V

1.90V

2.90V

3.20V

3.30V

3.40V

Pre-charge Voltage

0.90V

1.80V

2.60V

2.90V

3.00V

3.10V

Balance Charge

Not supported

Not supported

Supported

Supported

Supported

Supported
Unbalanced Charge Supported Supported Supported Supported Supported Supported
Support Cells 1-16S 1-12S 1-6S 1-6S 1-6S 1-6S
Max Charge Current 12.0A 12.0A 12.0A 12.0A 12.0A 12.0A

Please be cautious when selecting the charging parameters for diuerent types of batteries; otherwise, the batteries may be damaged. Incorrect setting can result to fire and/or explosion.

NiCd NiMH Pb LiFe Lilon CE LiPo LiHV Dual Battery Charger

Specification

Input Voltage: AC 100~240V Supported Batt. Type: LiFe/Lilon/LiPo/LiHv (1~6S)
Charge Current: 0.1~12.0A*2 NiMH/Cd(1~16S)
Discharge Current: 0.1~3.0A*2 Pb(1~12S)
Max Charge Power: 200W Display: 2.4" 320x240 IPS LCD
Max Discharge Power: 5W*2 Operating Temperature: 0~40°C
Balance Current: 1A/Cell*2 Storage Temperature: -20~60°C

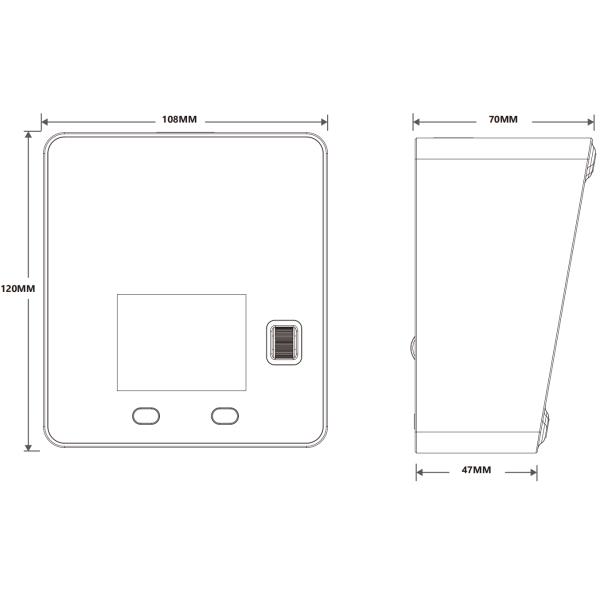

Balance Cells: 1~6S*2 Dimensions: 120x108x70mm
Weight: 510g

1. AC input 2. USB port 3. Update port 4. Balance port for channel 1
5. Battery port for channel 1 6. Battery port for channel 2 7. Balance port for channel 2 8. Channel 1 select button
9. Channel 2 select button 10. 2.4" IPS display 11. Speed shuttle key

How to Confirm Charging Current
It is very important to know the maximum charging current of the battery as excessive current could influence the life span of battery and/or cause damages. In addition, excessive current can cause heating and/or explosion of the battery during the charging process.
The charging and discharging capacity of battery is usually marked with C value. Multiplying the charging C value and battery capacity equals to the maximum charging current supported by the battery. For example, for a 1000 mAh battery with a charging capacity of 5C, the maximum charging current would be 1000*5=5000mA; therefore, the maximum charging current is 5A.
For a lithium battery, if it is impossible to confirm the supported charging C value, please set the charging current below 1C for the sake of its (lithium battery) safety.
The reference relation between C value and charging time: charging time ≥60 minutes/ charging C value (it therefore needs around 60~70 minutes to complete charging with 1C). Due to differences in battery conversion eciency, the period to complete the charging might be
extended.
