IP64 FCC Land Mapping Drone , 1080P Drone Land Surveying
IP64 FCC Land Mapping Drone , 1080P Drone Land Surveying
IP64 FCC Land Mapping Drone , 1080P Drone Land Surveying
IP64 FCC Land Mapping Drone , 1080P Drone Land Surveying
Specifications
Brand Name :
NLD
Model Number :
NIA-N5
Certification :
ISO9001 CE FCC
Place of Origin :
China
MOQ :
1set
Price :
Negotible
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
100sets/month
Delivery Time :
20days
Packaging Details :
Aluminum Box
Name :
Land mapping drone
Use :
Survey & mapping
Camera :
Tilt Five Camera
Pixel :
24 Megapixel
Total pixels :
120 million
Drone :
4 rotors drone
Description

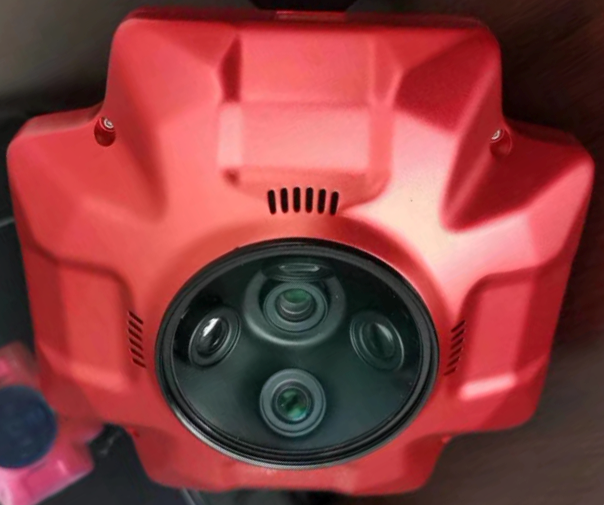

Camera Drone Five-eye Tilt Photogrammetry Camera 24 Megapixel Tilt Five Camera for Land Survey Mapping

IP64 FCC Land Mapping Drone , 1080P Drone Land Surveying

Description

Equipped with five high-pixel multi-angle tilt photography lenses, it can break through the limitations of traditional aerial survey cameras to obtain images from a single vertical angle. By carrying multiple image sensors on the same flight platform, real images with spatial information are collected from different vertical and tilt angles at the same time, and with more comprehensive details of the texture of the ground objects, it presents users with a real and intuitive world that is in line with human vision. . The true 3D data of oblique photography can realistically reflect the appearance, unknown, height and other attributes of the ground objects, enhance the high immersion brought by the 3D data, and make up for the shortcomings of traditional artificial modeling and simulation. At the same time, using the currently more popular UAV equipped with a tilt camera for terrain surveying and mapping with an automatic modeling system can bring revolutionary efficiency improvements to the field of surveying and mapping.

Features
* The body is equipped with an OLED display, which can display camera information in real time

* Five cameras are powered by a unified external power supply, and five memory cards use a unified USB interface to read data

* Fault self-checking alarm

* Intelligent temperature control and heat dissipation

* Professional surveying and mapping lens, ultra-high surveying and mapping work efficiency

* Support difference, support image transmission

Camera parameters

Sensor parameters Quantity 5 CMOS
Power on/off state 5 CMOS switches at the same time
Electrical parameters Camera power supply 5 cameras unified external power supply
Battery life UAV external power supply
Photo reading One USB interface reads 5 camera data uniformly
Camera parameters Effective Pixels 24.3 million, 120 million pixels in total
Sensor size APC format (23.5*15.6mm)
Pixel size 3.9um
Image Resolution 6000*4000
Slope 45°
Storage capacity 320G (upgradeable)
Exposure method Flight control trigger exposure
Exposure time ≥0.8S
Lens focal length 35mm
Working environment Operating temperature -10℃~40℃
Working humidity 95%
Protection level IP64
Physical dimension Size 135mm*135mm*92mm
Gross weight 650g

IP64 FCC Land Mapping Drone , 1080P Drone Land Surveying

Drone Configuration

Drone Frame 4-rotor drone frame 1
Flight control PX4 1
Remote controller

Highlight tablet with Android system / Industrial-grade radio anti-interference ability

Remote data transmission and image transmission three in one

1080P HD image transmission / Support Ethernet/HDMI video input

 1
Li-battery Super Lip Battery 12000mah 1
Propeller 2sets each set 4pcs 8
Charger Smart charger 1
Tools 1
Aluminum box 1

Drone Introduction

NIA quad rotor industry drone is suitable for smart cities, police safety, road traffic, environmental protection and water conservancy, power line inspection, emergency rescue, oil pipeline inspection, surveying and other fields.
Aircraft size 460x460x250mm Long battery life Max 60min
Weight 2.4kgs Payload 1.5kgs
Max takeoff weight 4kgs FPV camera 1080P
Work temperature -10~50℃ Max wind speed 15m/s
