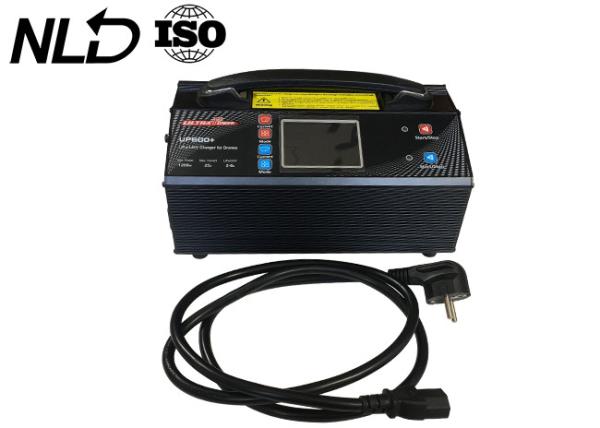

Lithium Battery Charger 1200W Dual Channels LiPo LiHV 2S 3S 6S Max Current 25A Input Voltage 110V 220V

Quick details:

1. Dual channels fast charger

2. Input voltage: 110 / 220V AC

3. Outpot power: 1200W

4. Battery type: 2S, 3S, 6S

5. Discharge power: 80W

6. Max charge current: 25A

Description:

It is specifically designed for dual channels LiPo/LiHV charger of big drones, it can charge & storage 2pcs of 2-6S LiPo/LiHV battery packs simultaneously, with "one-button charge" function, easy to operate. In addition, UP600+ has over-voltage, over-current, reverse polarity, and over-temperature protection to ensure maximum safety.

Specification:

Features:

1.Support charging 2 pcs of 2-6S LiPo/LiHV batteries.

2.With independent radio battery connection port, support charge 2S/3S redio battery. (Only one radio battery can be charged one time).

3.Charging current is adjustable: 5A/10A/15A/20A/25A.

4.Two working modes: Balance charge mode, Storage mode.

5.Memorizing last charging current.

6. Multiple protection function: over-voltage, over-current, reverse polarity. and over-temperature protection.

Charging Process:

Important information tips:

When the charger appear below abnormal situations, the two-color indicators will flash in red, and LCD display screen will appear fault message, please refer to below specific message notification and reasons.

Important warning and safety instruction:

These warnings and safety instructions are particularly important. Please follow the instructions for maximum safety. Otherwise the charger and the battery can be damaged or at worst it can catch fire.
1. Never leave the charger unattended when it is connected to its power supply. If any malfunction is found, TERMINATE THE PROCESS AT ONCE and refer to the operation manual.
2. Keep the charger away from dust, moist, rain, heat, direct sunshine and vibration.
3. The input voltage is AC 110V or AC 220V, before connect to the power source, please keep its input voltage is the same as the charger's.
4. Default battery type is standard LiPo battery type with charge mode. Before connecting the battery, please keep the battery type comply with the charger setting.
