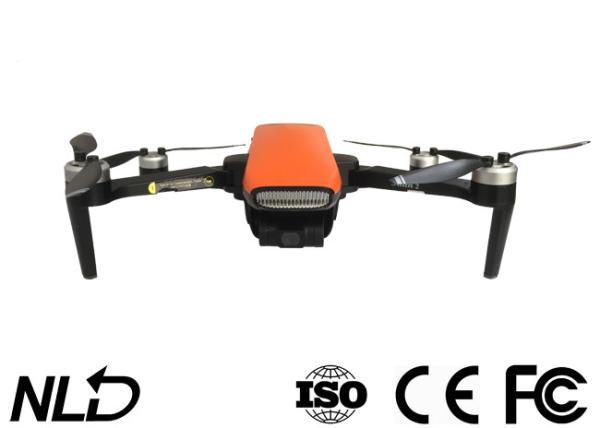

3 Axis 35 Mins Aerial Camera Drones 5000m FPV Transmission Distance
3 Axis 35 Mins Aerial Camera Drones 5000m FPV Transmission Distance
3 Axis 35 Mins Aerial Camera Drones 5000m FPV Transmission Distance
3 Axis 35 Mins Aerial Camera Drones 5000m FPV Transmission Distance
Specifications
Brand Name :
NLD
Model Number :
NTA-CFLY-8
Certification :
ISO9001 CE FCC
Place of Origin :
China
MOQ :
1set
Price :
Negotible
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
100sets/month
Delivery Time :
20days
Packaging Details :
Oxford bag
Name :
Video drone
Camera :
Ambarella A12 Sony CMOS
Gimbal :
3 Axis
Controllable :
Pitch -90~0 degree
Stabilization pitch :
+30~-120 degree
Stabilization Roll :
+/- 35 degree
Stabilization Yaw :
+/- 30 degree
Description

Video Drone with HD Camera Gimbal 3 Axis Controllable Rotation Direction Pitch -90 Degree to 0 Degree

3 Axis 35 Mins Aerial Camera Drones 5000m FPV Transmission Distance

Keep away from heat

The remote control aircraft is composed of metal, fiber, plastic, electronic components and other materials. Therefore, it is necessary to keep away from heat sources, prevent sunlight, and avoid deformation or even damage due to high temperature.

Environmental requirements

Discard the product at will, which may affect the environment, please recycle it property according to local laws and regulations.

Specification

1. Aircraft

Size(Fold) 170*108*74mm(L*W*H)
Size(Unfold) 180*255*74mm(L*W*H)
Wheelbase 280mm
Weight 515g
Max Ascent Speed

Clam mode: 2m/s

Normal mode: 2m/s

Sport mode: 5m/s
Max Descent Speed

Clam mode: 1.5m/s

Normal mode: 1.5m/s

Sport mode: 2m/s
Max Speed

Clam mode: 5m/s

Normal mode: 10m/s

Sport mode: 19m/s
Max Service Ceiling Above Sea 5000m
Max Fight Time 35mins
Satellite Positioning Systems GPS/GLONASS
Hover Accuracy Range

Vertical: +/-0.5m±0.2m(ultrasonic system, optical flow system works)

Horizonal: +/-1.5m±0.3m(ultrasonic system, optical flow system works)
Maximum Flight Height 120m(Maximum 500m(Need to change setting on app))
Operating Temperature Range 0℃-40℃

3 Axis 35 Mins Aerial Camera Drones 5000m FPV Transmission Distance

2. Optical flow system

Operating Environment Surface with clear pattern and adequate lighting(lux>15)
Velocity Range ≤1.5m/s at 6.6 ft (2m) above ground
Altitude Range 0.2-4.5m

3. Ultrasonic altitude system

Operating Except for surface of water or ground of absorbing material(such as thick carpet)
Velocity Range ≤3m/s
Altitude Range 0.2-4.5m

4. 3-axis Gimbal

Controllable Pitch: -90°-0°
Stabilization

Pitch: +30/-120°

Roll: ±35°

Yaw: ±30°

5. Camera

Sensor Ambarella A12, SONY CMOS
Image Size 5120*3840(20MP)
Shooting mode Single shot
Video Recording Resolution 3840*2160
Maximum Video Bit 60Mbps
Supported File Systems FAT32(<=32GB)/exFAT(>32GB)
Photo JPEG
Video MP4
Supported SD Cards Micro SDTM Max capacity: 128GB, UHS-I Speed Grade 3 rating required
Operating Temperature Range 0℃-40℃

6. Battery

Capacity 3100mAh
Voltage 11.4V
Battery Type LiPo 3S
Energy 35.34Wh
Net Weight 196g
Max charging power 35W
Charge time <5h(with 5V 2A adapter)
Charging Temperature Range 0℃-40℃

7. APP

Mobile APP C-Fly 2
Live View Quality 720P
Aerial Photography mode dronie, rocket, circle, helix
Required Operating Systems Andrio 5.0 above, ISO 9.0 above
FPV Transmission Distance 5000m

8. Charger

Input 5V 2A(recommend)
Output 4.35V 0.7A*3
Rated Power 10W

9. Remote Controller

Operating Frequency 5.8GHz
Max Transmission Distance 5000m
Transmitter Power(EIRP)

FCC: ≤23dBm

CE: ≤14dBm

SRRC: ≤20dBm
Operating Current/Voltage 500mA@3.7V
Capacity 2600mAh
Battery Capacity(built-in) 3.7V
Battery Type LiPo 18650 1S
Battery Power 9.62Wh
Operating Temperature Range 0℃-40℃
Supported Mobile Device Size Thickness Supported: 6.5-8.5mm
Charge USB
Maximum Charge Power 5W
Charge Time <3h(with 5V 2A adapter)

3 Axis 35 Mins Aerial Camera Drones 5000m FPV Transmission Distance
