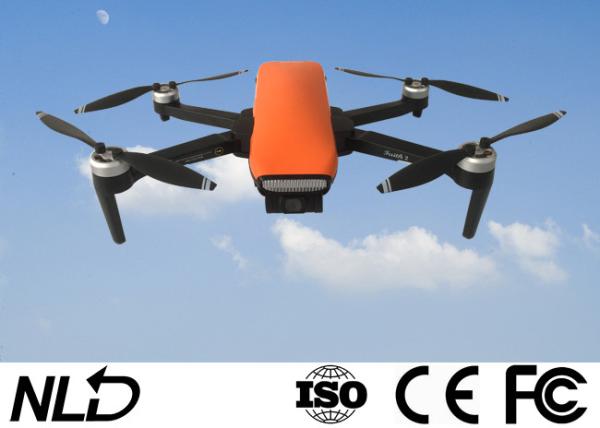

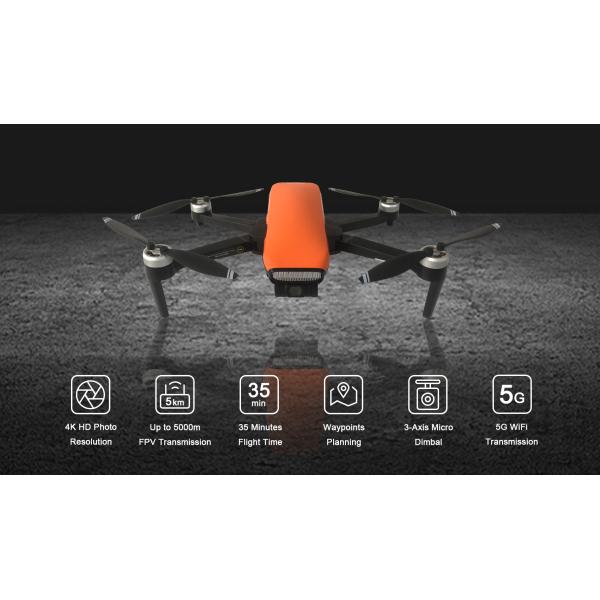

Battery Lipo 3S 3100mAh 11.4V 35.34Wh 4K Gimbal Drone
Battery Lipo 3S 3100mAh 11.4V 35.34Wh 4K Gimbal Drone
Battery Lipo 3S 3100mAh 11.4V 35.34Wh 4K Gimbal Drone
Battery Lipo 3S 3100mAh 11.4V 35.34Wh 4K Gimbal Drone
Specifications
Brand Name :
NLD
Model Number :
NTA-CFLY-7
Certification :
ISO9001 CE FCC
Place of Origin :
China
MOQ :
1set
Price :
Negotible
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
100sets/month
Delivery Time :
20days
Packaging Details :
Oxford bag
Name :
Camera drone
Battery :
Lipo 3S 3100mAh
Voltage :
11.4V
Energy :
35.34Wh
Flying time :
Max 35min
Charge time :
<5h (5V 2A charger)
Description

Camera Drone with Battery Lipo 3S 3100mAh Voltage 11.4V Energy 35.34Wh Flight time Max 35minutes Charge Time <5hours

Battery Lipo 3S 3100mAh 11.4V 35.34Wh 4K Gimbal Drone

Safe operation

(1) Please operate the remote control aircraft according to your own status and flying skills. Fatigue, poor spirits or improper operation will increase the risk of accidents Probability.

(2) Do not use it near ears! Misuse may cause hearing damage.

Keep away from high-speed rotating parts

When the aircraft rotor is rotating at high speed, please keep the pilot, surrounding people and objects away from the rotating parts to avoid danger and damage.

Specification

1. Aircraft

Size(Fold) 170*108*74mm(L*W*H)
Size(Unfold) 180*255*74mm(L*W*H)
Wheelbase 280mm
Weight 515g
Max Ascent Speed

Clam mode: 2m/s

Normal mode: 2m/s

Sport mode: 5m/s
Max Descent Speed

Clam mode: 1.5m/s

Normal mode: 1.5m/s

Sport mode: 2m/s
Max Speed

Clam mode: 5m/s

Normal mode: 10m/s

Sport mode: 19m/s
Max Service Ceiling Above Sea 5000m
Max Fight Time 35mins
Satellite Positioning Systems GPS/GLONASS
Hover Accuracy Range

Vertical: +/-0.5m±0.2m(ultrasonic system, optical flow system works)

Horizonal: +/-1.5m±0.3m(ultrasonic system, optical flow system works)
Maximum Flight Height 120m(Maximum 500m(Need to change setting on app))
Operating Temperature Range 0℃-40℃

2. Optical flow system

Operating Environment Surface with clear pattern and adequate lighting(lux>15)
Velocity Range ≤1.5m/s at 6.6 ft (2m) above ground
Altitude Range 0.2-4.5m

3. Ultrasonic altitude system

Operating Except for surface of water or ground of absorbing material(such as thick carpet)
Velocity Range ≤3m/s
Altitude Range 0.2-4.5m

Battery Lipo 3S 3100mAh 11.4V 35.34Wh 4K Gimbal Drone

4. 3-axis Gimbal

Controllable Pitch: -90°-0°
Stabilization

Pitch: +30/-120°

Roll: ±35°

Yaw: ±30°

5. Camera

Sensor Ambarella A12, SONY CMOS
Image Size 5120*3840(20MP)
Shooting mode Single shot
Video Recording Resolution 3840*2160
Maximum Video Bit 60Mbps
Supported File Systems FAT32(<=32GB)/exFAT(>32GB)
Photo JPEG
Video MP4
Supported SD Cards Micro SDTM Max capacity: 128GB, UHS-I Speed Grade 3 rating required
Operating Temperature Range 0℃-40℃

6. Battery

Capacity 3100mAh
Voltage 11.4V
Battery Type LiPo 3S
Energy 35.34Wh
Net Weight 196g
Max charging power 35W
Charge time <5h(with 5V 2A adapter)
Charging Temperature Range 0℃-40℃

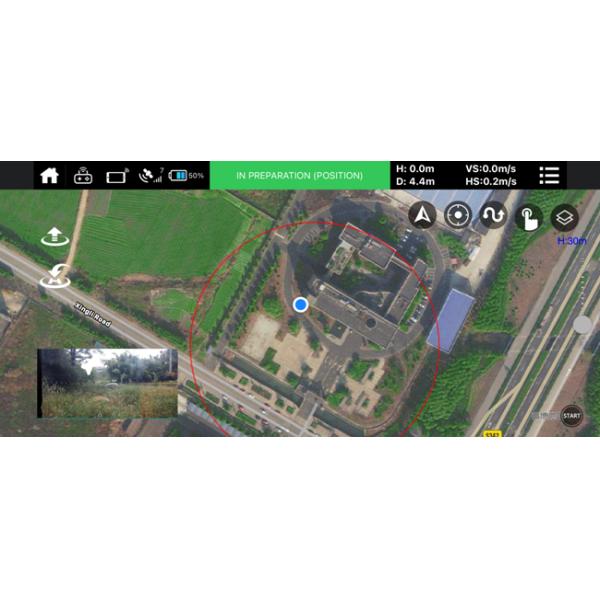

7. APP

Mobile APP C-Fly 2
Live View Quality 720P
Aerial Photography mode dronie, rocket, circle, helix
Required Operating Systems Andrio 5.0 above, ISO 9.0 above
FPV Transmission Distance 5000m

8. Charger

Input 5V 2A(recommend)
Output 4.35V 0.7A*3
Rated Power 10W

9. Remote Controller

Operating Frequency 5.8GHz
Max Transmission Distance 5000m
Transmitter Power(EIRP)

FCC: ≤23dBm

CE: ≤14dBm

SRRC: ≤20dBm
Operating Current/Voltage 500mA@3.7V
Capacity 2600mAh
Battery Capacity(built-in) 3.7V
Battery Type LiPo 18650 1S
Battery Power 9.62Wh
Operating Temperature Range 0℃-40℃
Supported Mobile Device Size Thickness Supported: 6.5-8.5mm
Charge USB
Maximum Charge Power 5W
Charge Time <3h(with 5V 2A adapter)

Battery Lipo 3S 3100mAh 11.4V 35.34Wh 4K Gimbal Drone
