Fire-Fighting Inspection Drone 640x480 Thermal Imaging Infrared Camera with 10x Optical Zoom 1/3" Panasonic CMOS Sensor
Application
Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.
Specification
Hardware Parameter | |
Working voltage 12~16V | Input voltage 3S~4S |
Dynamic current 800~1000mA | Output voltage 5V |
Working environment temp. -20~+60°C | Output micro HDMI(FHD 1080P 30fps)/IP(1080P/720P 25/30fps) |
Control method PWM/TTL/S.BUS/TCP(IP output version) | Local storage TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
Photo storage formate JPG(1920*1080/1280*720) | Video storage formate MP4(1080P/720P 25fps/30fps) |

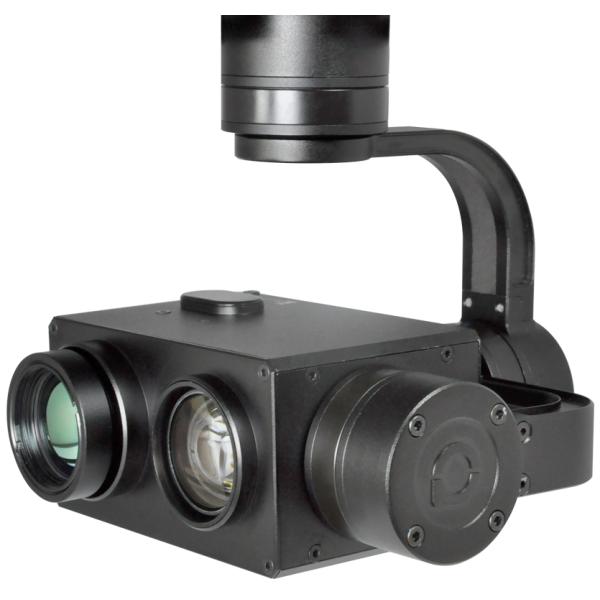

Gimbal specification | |
Mechanical range | Pitch/Tilt: -125°~120°, Roll: ±60°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
Controllable Range | Pitch/Tilt: -45°~90°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
Vibration angle | Pitch/Roll: ±0.02°, Yaw:±0.02° |
One-key to center | Yes |
RGB camera specifiction | |||
Imager Sensor | 1/3" Panasonic CMOS Sensor | Effective pixel | 2.48MP |
Picture quality | Full HD 1080 (1920*1080) | Lens optical zoom | 10x, F=5.1mm~51mm |
Field of View (D, H, V) | D: 68°(Wide end) ~ 6.7° (Tele end) | Sync system | Progressive scanning |
H: 54°(wide end) ~ 4.9°(tele end) | Sync. System Internal | Internal | |
V: 31°(wide end) ~ 4.0°(tele end) | S/N ratio | more than 50dB | |
Min illumination | Color : 0.5 lux , BW : 0.1lux | Gain Control (AGC) | Off / On |
Color DSS : 0.125 lux , BW DSS : 0.025 lux | White balance | Auto / One Push / Manual / Indoor / Outdoor | |
Shutter speed | 1/30(25) ~ 1/30,000 sec | Focus | Auto / One Push / Manual |
Iris | 0 ~ 20 steps | Defog | Yes |
Exposure | Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N | OSD | Yes |
Configuration
Drone Frame | 4-rotor drone frame | 1 |
Flight control | PX4 | 1 |
Remote controller | Highlight tablet with Android system / Industrial-grade radio anti-interference ability Remote data transmission and image transmission three in one 1080P HD image transmission / Support Ethernet/HDMI video input | 1 |
Li-battery | Super Lip Battery 12000mah | 1 |
Propeller | 2sets each set 4pcs | 8 |
Charger | Smart charger | 1 |
Tools | 1 | |
Aluminum box | 1 |
Introduction
NIA-Z10TIR quad rotor industry drone is suitable for smart cities, police safety, road traffic, environmental protection and water conservancy, power line inspection, emergency rescue, oil pipeline inspection, surveying and other fields. | |||
Aircraft size | 460x460x250mm | Long battery life | Max 60min |
Weight | 2.4kgs | Payload | 1.5kgs |
Max takeoff weight | 4kgs | FPV camera | 1080P |
Work temperature | -10~50℃ | Max wind speed | 15m/s |
