FCC 4 Rotor 1080P Aerial Inspection Drone Thermal Infrared Camera
FCC 4 Rotor 1080P Aerial Inspection Drone Thermal Infrared Camera
FCC 4 Rotor 1080P Aerial Inspection Drone Thermal Infrared Camera
FCC 4 Rotor 1080P Aerial Inspection Drone Thermal Infrared Camera
Specifications
Brand Name :
NLD
Model Number :
NIA-Z10TIR-3
Certification :
ISO9001 CE FCC
Place of Origin :
China
MOQ :
1set
Price :
Negotible
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
100sets/month
Delivery Time :
20days
Packaging Details :
Aluminum Box
Name :
Power line Inspection drone
Use :
Transmission line inspection
Camera :
Thermal infrated camera 1080P visible light camera
Visible light camera :
10 optical zoom 1080P
Thermal Imager :
640*480 stardard version
Drone :
4 rotors profession drone
Description

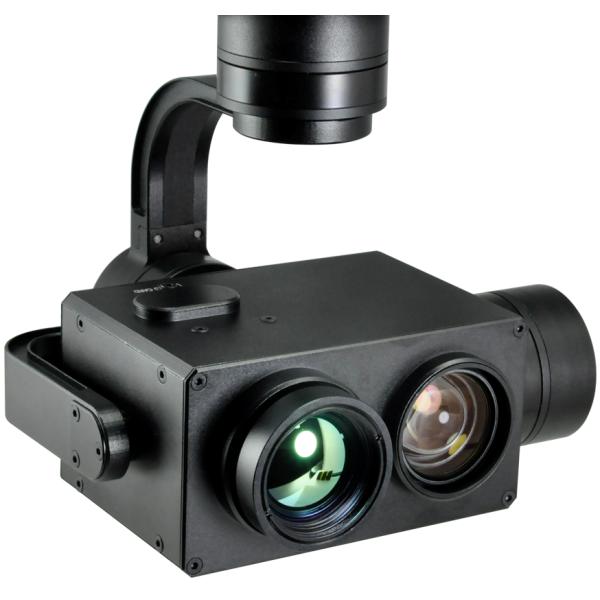

Transmission Line Inspection Drone Thermal Infrared Camera with 1080P Visiable Light Camera 1/3" Panasonic CMOS

FCC 4 Rotor 1080P Aerial Inspection Drone Thermal Infrared Camera

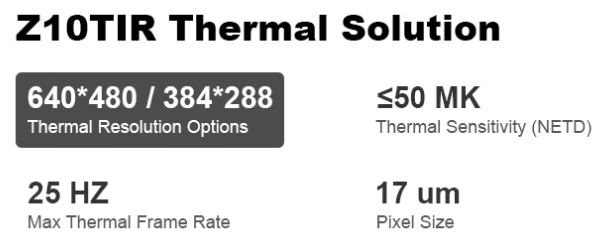

Thermal imager specification

Lens size 25mm Horizontal FOV 24.6°
Vertical FOV 18.5° Diagonal FOV 30.4°
Detective Distance (Man: 1.8x0.5m) 735 meters Recognize Distance (Man: 1.8x0.5m) 184 meters
Verified Distance (Man: 1.8x0.5m) 92 meters Detective Distance (Car: 4.2x1.8m) 2255 meters
Recognize Distance (Car: 4.2x1.8m) 564 meters Verified Distance (Car: 4.2x1.8m) 282 meters
Working mode Uncooled long wave (8μm~14μm) thermal imager Detector pixel 640*480 (standard version)
Pixel size 17μm For optional 384*288 (low configuration)
Focusing method Athermal prime lens Emissivity correction 0.01~1
NETD ≤50mK (@25℃) MRTD ≤650mK (@characteristic frequency)
Image enhancement Auto adjust image brightness and contrast ratio Color palette White, iron red, pseudo color
Auto Non-uniform correction Yes (no shutter) Digital zoom 1x ~ 4x
Sync correct time Yes Temperature warning 0℃~120℃ (For thermometry version only)
Thermometry type Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)

FCC 4 Rotor 1080P Aerial Inspection Drone Thermal Infrared Camera

Configuration

Drone Frame 4-rotor drone frame 1
Flight control PX4 1
Remote controller

Highlight tablet with Android system / Industrial-grade radio anti-interference ability

Remote data transmission and image transmission three in one

1080P HD image transmission / Support Ethernet/HDMI video input

 1
Li-battery Super Lip Battery 12000mah 1
Propeller 2sets each set 4pcs 8
Charger Smart charger 1
Tools 1
Aluminum box 1

Thermal object tracking

Update rate of deviation pixel 50Hz Output delay of deviation pixel <5ms
Minimum object size 32*32 pixel Maximum object size 128*128 pixel
Tracking speed 32 pixel/frame Object memory time 100 frames (4s)

RGB camera object tracking

Update rate of deviation pixel 50Hz Output delay of deviation pixel <5ms
Minimum object contrast 5% SNR 4
Minimum object size 32*32 pixel Maximum object size 128*128 pixel
Tracking speed 32 pixel/frame Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel


FCC 4 Rotor 1080P Aerial Inspection Drone Thermal Infrared Camera

Introduction

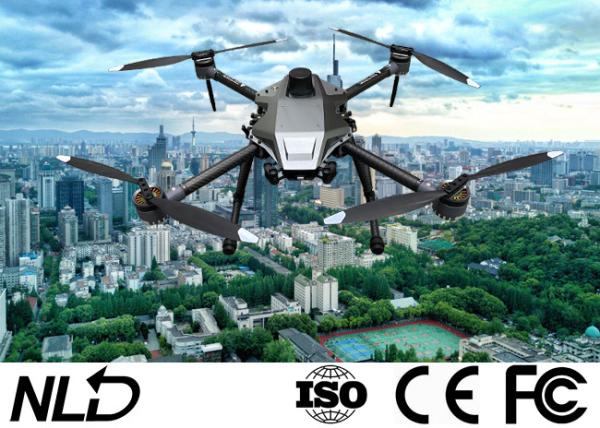

NIA-Z10TIR quad rotor industry drone is suitable for smart cities, police safety, road traffic, environmental protection and water conservancy, power line inspection, emergency rescue, oil pipeline inspection, surveying and other fields.
Aircraft size 460x460x250mm Long battery life Max 60min
Weight 2.4kgs Payload 1.5kgs
Max takeoff weight 4kgs FPV camera 1080P
Work temperature -10~50℃ Max wind speed 15m/s
