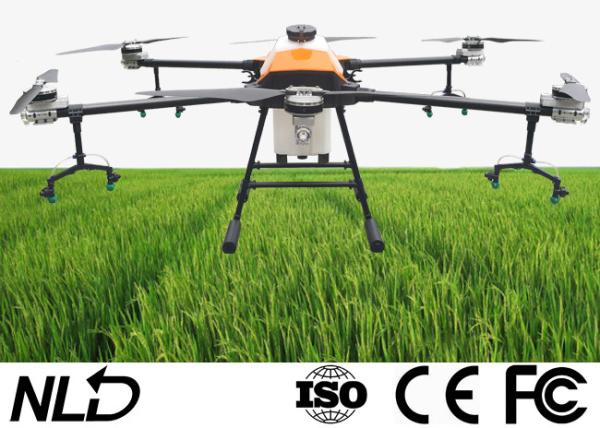

6 Propellers 20L Pesticide Spraying Drone , FCC Unmanned Aerial Vehicle Drone
6 Propellers 20L Pesticide Spraying Drone , FCC Unmanned Aerial Vehicle Drone
6 Propellers 20L Pesticide Spraying Drone , FCC Unmanned Aerial Vehicle Drone
6 Propellers 20L Pesticide Spraying Drone , FCC Unmanned Aerial Vehicle Drone
Specifications
Brand Name :
NLD
Model Number :
NLB-620-1
Certification :
ISO9001 CE FCC
Place of Origin :
China
MOQ :
1set
Price :
Negotible
Supply Ability :
100sets/month
Delivery Time :
20days
Packaging Details :
Aluminum Box
Name :
Agri drone
Capacity :
20L
Nozzle :
8 nozzles
Battery :
Lipo Battery
Flight controller :
2 CPU + 3 IMU
Flying time :
20min with payload
Description

6 Propellers 20L Capacity Agri Drone Prfessional Unmanned Aerial Vehicle for Pesticide Spraying

Quick details:

Drone frame: 6 rotors;

Flight controller: two CPU with three IMU;

GPS Positioning;

Water pump with flow meter, water pipe and nozzle

Remote controller

6 Propellers 20L Pesticide Spraying Drone , FCC Unmanned Aerial Vehicle Drone

Specification:

No. Description NLB620
1 UAV Frame 6 rotors
2 Flight Controller With
3 GPS Positioning With
7 Pesticide Tank 20L
8 Spray System Water pump & flow meter & water pipe & 8 nozzles
9 Remote Controller Android + ground workstation digital transmission 5.5” screen
10 Battery Charger Dual channel battery charger
11 Battery 14S 22000mAh
12 Aluminum Case With
Quick Details
Flight controller: 2CPU + 3 IMU
Material: Carbon Fiber & Aluminum
Flight time: 15~20minutes
Spray width: 3~5m
Spray efficiency: 11~18 Ha/hour
Lead time: 15days
Tank: 20/26/30L
Work mode: Manual & Workstation
Model NLB620
Rotor 6

Hovering accuracy

horizontal

 +/- 1.5m

Hovering accuracy

vertical

 +/- 0.5m
Wind resistance 4～5
Motor 6*110KV
Electronic Speed Control 150A
Motor applicable temperature -20～50
Foldable propeller 3411
Pesticide Tank 20L
Take-off Capacity 54kg
Flying Time (with payload) 15~20min
Flying distance 5000m
Working distance 2000m
Flying Speed 0~10m/s
Spray Width 3.5~4m
Spray Flow 1.2~2L/min
Spray Efficiency 1500~2400sqm/min
Wheelbase 2018mm
Folded Size 1150*600*700mm
Battery / Quantity 14S/22000mAh
FPV Camera Optional
Obstacle avoidance radar Optional
Terrain following radar Optional
RTK centimeter positioning Optional

App Ground workstation

6 Propellers 20L Pesticide Spraying Drone , FCC Unmanned Aerial Vehicle Drone

1. Android mobile system with ground workstation;

2. 5.5" high brightness display, it can control and adjust the flying parameter;

3. We can provide google map on the display;

4. Support FPV video floating window function;

5. Support hand held GPS dot device or RTK dot device;

6. Setup atuomatic or semi-automatic AB working mode on the display;

8. Adjust the flying height, spray mode, spray speed on the remote controller;

9. Support automatic fail-sail back function;

10. Support job record, flight time, flight area data record.

Obstacle avoidance radar (optional)

1. We support to measure the relative distance between the UAV and the obstacle in front of the flight;

2. We support 2.4GHz radar technology, all weather work;

3. It has high sensitivity, far detection distance;

4. It has fast and stable signal transmission;

5. It has strong environmental adaptability, strong light, high temperature, fot, dust, wind and night.
