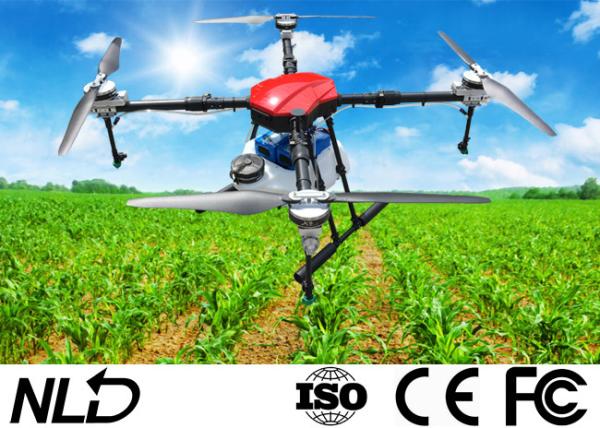

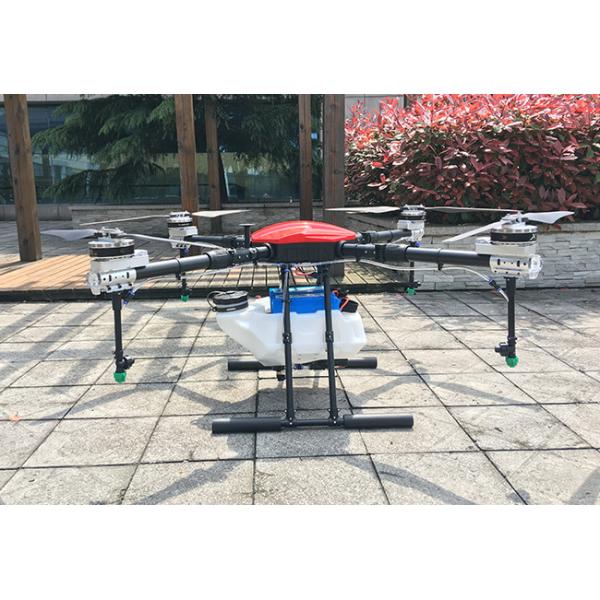

10L 4 Rotor Agriculture Drone Carbon Fiber And Aviation Aluminum Material
10L 4 Rotor Agriculture Drone Carbon Fiber And Aviation Aluminum Material
10L 4 Rotor Agriculture Drone Carbon Fiber And Aviation Aluminum Material
10L 4 Rotor Agriculture Drone Carbon Fiber And Aviation Aluminum Material
Specifications
Brand Name :
NLD
Model Number :
NLA-410
Certification :
ISO9001 CE FCC
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
100sets/month.
Delivery Time :
20 days
Packaging Details :
Aluminum Box
Product :
4-Rotor Agriculture Spraying Drone
Pesticide Tank :
10L
Folded Size :
635*666*490mm
Take-off Capacity :
28kg
Flying Time (with payload) :
10-15min
Wheelbase :
1393mm
Description

10L 4-Rotor Agriculture Spraying Drone Carbon Fiber and Aviation Aluminum Material

Product Description
Model NLA410 NLA416 NLA610 NLA616 NLA622 NLA630 NLA650
Rotor 4 4 6 6 6 6 8
Hovering accuracy +/- 1.5m +/- 1.5m +/- 1.5m +/- 1.5m +/- 1.5m +/- 1.5m +/- 1.5m
horizontal
Hovering accuracy +/- 0.5m +/- 0.5m +/- 0.5m +/- 0.5m +/- 0.5m +/- 0.5m +/- 0.5m
vertical
Wind resistance 4～5 4～5 4～5 4～5 4～5 4～5 4～5
Motor 4*100KV 4*110KV 6*180KV 6*100KV
Electronic Speed Control 80A 120A 80A 80A
Motor applicable temperature -20～50 -20～50 -20～50 -20～50 -20～50 -20～50 -20～50
Foldable propeller 3090 3411 2388 3090
Pesticide Tank 10L 16L 10L 16L 22L 30L 50L
Take-off Capacity 28kg 38kg 30kg 42kg
Flying Time (with payload) 15~20min 15~20min 15~20min 15~20min 15~20min 15~20min 15~20min
Flying distance 5000m 5000m 5000m 5000m 5000m 5000m 5000m
Working distance 2000m 2000m 2000m 2000m 2000m 2000m 2000m
Flying Speed 0~10m/s 0~10m/s 0~10m/s 0~10m/s 0~10m/s 0~10m/s 0~10m/s
Spray Width 3~3.5m 3~3.5m 3.5~4m 3.5~4m 3.5~4m 3.5~4.5m 3.5~5m
Spray Flow 1.2~2L/min 1.2~2L/min 1.2~2L/min 1.2~2L/min

1.5~2.5

L/min

1.5~2.5

L/min

1.5~3

L/min
Spray Efficiency

1000~2100

sqm/min

1000~2100

sqm/min

1500~2400

sqm/min

1500~2400

sqm/min
Expand Size

1780*1780

*567mm

1848*1848

*628mm

1992*1992

*562mm

2428*2428

*600mm
Wheelbase 1362mm 1416mm 1407mm 1648mm
Folded Size

700*658

*567mm

648*671

*628mm

945*848

*562mm

1102*979

*600mm
Battery / Quantity

6S/16000

mAh / 2pcs

6S/22000

mAh / 2pcs

6S/16000

mAh / 2pcs

6S 22000

mAh / 2pcs

 6S 22000mAh / 2pcs 6S 30000mAh / 2pcs 12S 27000mAh / 2pcs
FPV Camera Optional Optional Optional Optional Optional Optional Optional
Obstacle avoidance radar Optional Optional Optional Optional Optional Optional Optional
Terrain following radar Optional Optional Optional Optional Optional Optional Optional
RTK centimeter positioning Optional Optional Optional Optional Optional Optional Optional

10L 4 Rotor Agriculture Drone Carbon Fiber And Aviation Aluminum Material
