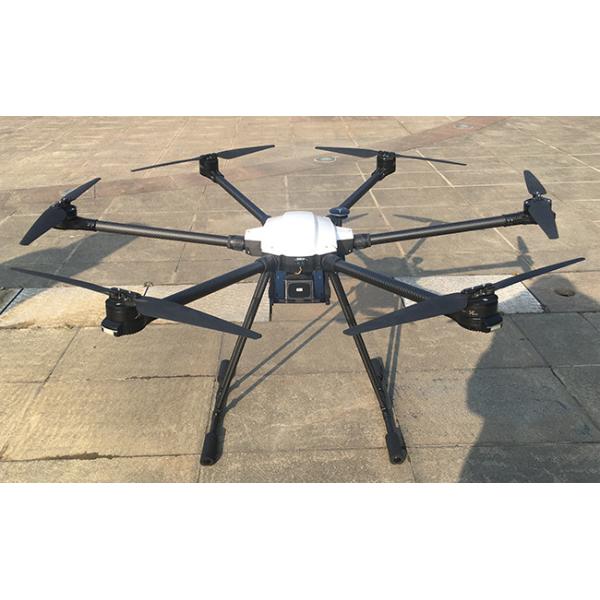

Power Inspection Agricultural Drones Industry With 1080P HD Camera
Power Inspection Agricultural Drones Industry With 1080P HD Camera
Power Inspection Agricultural Drones Industry With 1080P HD Camera
Power Inspection Agricultural Drones Industry With 1080P HD Camera
Specifications
Brand Name :
NLD
Model Number :
NPA610
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Box
Motor wheelbase :
1200mm
Working time :
30~50min
Max takeoff weight :
25kg
Payload :
0~5kg
HD Camera :
1080P
Image transmission distance :
10~15km
Description

Industrial Grade Drone With 1080P HD Camera For Power Inspection

Introduction

NPA-610 for power line, Flight control 3 redundant accelerometers and gyroscopes, it can work for full construction section, long time flying suitable for smart cities, police safety, road traffic, environmental protection and water conservancy, power line inspection, emergency rescue, oil pipeline inspection, surveying and other fields.
Motor wheelbase 1200mm Working time 30~50min
Max takeoff weight 25kg Payload 0~5kg
HD Camera 1080P Image transmission distance 10~15km
Horizontal speed 0~15m/s Wind resistance 6

Power Inspection Agricultural Drones Industry With 1080P HD Camera

Suspension components

NGC-C4K: 4K HD optical zoom gimbal

Lightweight Gimbal weight 286g

High resolution, zoom

12 million pixels, up to 4K recording

14 times zoom (3.5 times optical * 4 times digital)

High stability Jitter Angle: ±0.01°

One-key to center

Double-click the target, center zoom function

GPS information record

Superimpose GPS information display and save to subtitle file

Available SDK

Sky data interface and ground station SDK is available

Object Tracking

General Parameter
Product NGC-C4K: 4K HD optical zoom gimbal
Working voltage 12V-25V
Power 6W
Weight 275g
Size 96*79*120mm
Interface Type Network interface
Control display mode Windows system PC; Android phone, tablet
Environment parameter
Working environment temp. -10℃ ~ 60℃
Storage environment temp. -20℃ ~70℃
Gimbal parameter
Jitter Angle ±0.01°
Installation method Detachable
Controllable rotation range Pitch/Tilt: +70°- -110°; Yaw/Pan: ±300°
Structure design scope Roll Pitch/Tilt: +75°- -100°; Yaw/Pan: ±310°; roll: +90°- -50°
Maximum control speed Pitch/Tilt: 120°/s; Yaw/Pan: 180°/s
Camera parameter
Sensor CMOS: 1/2.3″; 12.71 million total pixels; maximum resolution 4152*3062
Lens

3.5x optical zoom lens F 3.85~13.4mm

Minimum shooting distance: 1mm~3mm (near focus ~ far focus)

Field of view (horizontal): 82~25°
Image storage format JPEG
Video storage format MP4
Working method Video, photo
Fog penetration Electronic fog penetration
Exposure mode Automatic exposure and manual exposure
Resolution

25fps(3840*2160)

25fps(1920*1080)

Maximum capture resolution: (4024*3036)
Minimum illumination Color: 0.5Lux/F2.4
2D noise reduction √
3D noise reduction √
Shutter speed 1/3- 1/30000s
Exposure Automatic support
OSD √
Pointing zoom √
Pointing zoom range 1~3.5 times optical
One-click zoom to single image √
Support memory card type Micro SD card 128G (maximum)
