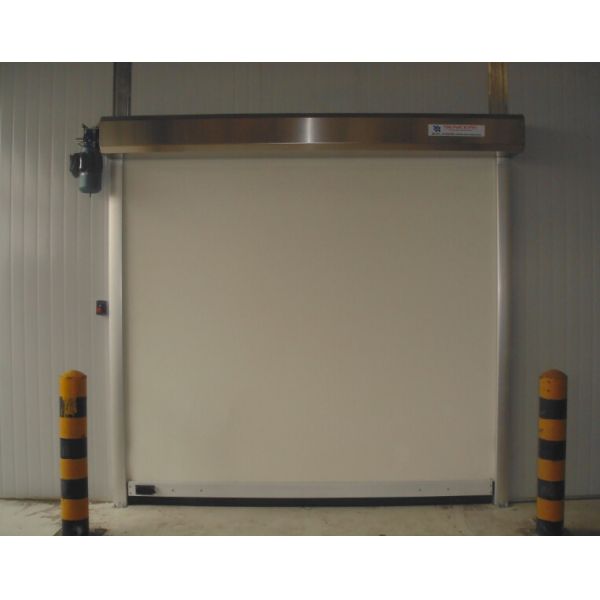

Smooth Open Interior / Exterior Roll Up Doors 304 Stainless Steel Standard Frame
Smooth Open Interior / Exterior Roll Up Doors 304 Stainless Steel Standard Frame
Smooth Open Interior / Exterior Roll Up Doors 304 Stainless Steel Standard Frame
Smooth Open Interior / Exterior Roll Up Doors 304 Stainless Steel Standard Frame
Smooth Open Interior / Exterior Roll Up Doors 304 Stainless Steel Standard Frame
Smooth Open Interior / Exterior Roll Up Doors 304 Stainless Steel Standard Frame
Smooth Open Interior / Exterior Roll Up Doors 304 Stainless Steel Standard Frame
Smooth Open Interior / Exterior Roll Up Doors 304 Stainless Steel Standard Frame
Specifications
Brand Name :
SUNCOME
Model Number :
H1800
Certification :
CE/ISO9001:2008
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100 units per month
Delivery Time :
25 working days after received your payment
Packaging Details :
Standard Plywood Package
Product Name :
high speed plastic door
Application :
Using for outside and safe application
Opening Speed :
1.5m/s
Closing Speed :
1.0m/s
Standard Frame :
304 Stainless Steel
Model :
inside door
Description

High Speed Anti-electrostatic Fabric Roll up Door, High Frequency Smooth Open

Description:

With more than ten years of rich experience, Suncome, a combination supplier of special industrial doors and loading/unloading system as well as an entrepreneur for the solution of logistics system,is the best choice of high-efficiency and energy savings in modern architectures and factories.

Our products are widely used in many fields such as food, pharmacy, chemical industries, electronics, auto manufacturers, precision machineries, clean rooms, refrigeration industries, intelligence building, automatic parking system, integrate with Europe advanced technology, notion, especially with high quality, affordable price, safety and durability.

We boast professional sales engineers, installation teams and after-sales service personnel who can provide our clients with customized service .

Automatic and High Performance Speed Door is the solution to the high-level clean environment which needs prevent dust and anti-bacteria, applied in the busy passageway area with high clearness demands,strong wind-resistance,especially for the food,pharmacy, and fine machining industry.


Specifications:

Curtain Color

Grey, White,Red

Anti wind bar

No anti wind bar

Power supply

AC 220V-240V, Single-Three Phrase, 50HZ

Temperature

-7 to 65 Celsius degree

Normal Working

-5 to 65 Celsius degree

Standard Motor Position

Left

Installation Base

Concrete,Panel, Brick,Steel Structure.

Installation Space

≥600mm above the door

≥600mm for motor side

≥200mm for non-motor side

≥800mm in front of the door

Using Area

For Production Line

Technical Parameter for speed door

Max Size:3500mm(W)*3500mm(H)

Opening Speed:1.5m/s

Closing Speed:1.0m/s

Wind load Max:10m/s

Mechanical Unit

Frame:304 Stainless Steel/Aluminum

Thickness of frame:2.0mm Stainless Steel/Galvanized Steel

Thickness of shaft cover:1.5mm 304 Stainless Steel/Galvanized Steel

Motor cover:Yes

Frame Size:100mm*60mm

Control Unit

Control system

  • S150 FU Micro-processor
  • English Man-Machine Interface
  • Self Trouble-Shooting Recognizing system
  • Bigger LED Screen

Control Box Size:320 X 400 X 210 mm

Driving System

Feature:Absolutely Encoder

Driving Unit Brand:ABB Motor / Yaskawa Frequent Convert

Activation System

Open and Close the door:

  • Radar
  • Induction Loop
  • Remote
  • Card Sensor
  • Pull Cord
  • Push Button
  • Touching Panel for Cleaning Room
  • Central-Computer Controlling

Safety System

Safe Equipment:

  • Beep
  • Anti-wind Bar
  • Traffic Light
  • Wireless safety Edge
  • Built-in Photo Cell
  • Emergency Handle
  • Shoulder Protection

Smooth Open Interior / Exterior Roll Up Doors 304 Stainless Steel Standard FrameSmooth Open Interior / Exterior Roll Up Doors 304 Stainless Steel Standard Frame
