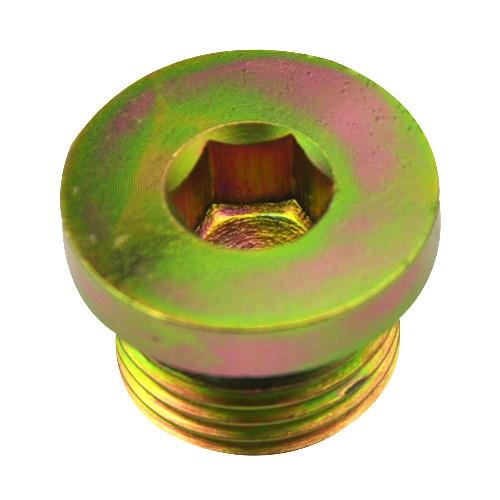

4mn - Wd Metric Hollow Hex Plug Male Captive Seal cold - Forged Technics
4mn - Wd Metric Hollow Hex Plug Male Captive Seal cold - Forged Technics
Specifications
Brand Name :
xindu
Model Number :
4MN-WD
Place of Origin :
Zhejiang, China (Mainland)
MOQ :
negotiable
Price :
negotiable
Payment Terms :
D/P, L/C, T/T
Supply Ability :
100000 Piece/Pieces per Month hydraulic reducer pipe reducing fitting
Delivery Time :
wihtin 30 days or as percustomers' requlement.
Packaging Details :
export carton, wood pallet
Material :
Carbon Steel, Carbon steel / Stainless Steel 316 & 304
Connection :
Male
Technics :
cold-Forged/ Forged
Shape :
Equal
Surface Treatment :
Zinc /ZnNi/Nickel Plated/ BLACK/Passivation
Color :
Yellow / Silver/ Black/ Nature
Type :
Nipple
Description

Zinc plated carbon steel hex head male metric thread VSTI M-OR/ 4MN-WD blanking plug for ports

  • DIN Hydraulic Fittings
  • BSP Thread Adapter
  • JIC Hydraulic Adapters
  • Metric Hydraulic Adapters
  • SAE Flange Adapter
  • Hydraulic Hose Fittings JIC
  • BSP Hydraulic Fittings
  • Metric Hydraulic Hose Fittings
  • SAE Flange Fittings
  • Reusable Hose Fittings
  • Interlock Hose Fittings
  • Socketless Hose Fittings
  • Hydraulic Hose Ferrule

4mn - Wd Metric Hollow Hex Plug Male Captive Seal cold - Forged Technics

PART NO. THREAD CAPTIVE DIMENSIONS
E E A L S1
4MN-10WD M10X1 WD-B02 8 12 5
4MN-12WD M12X1.5 WD-M12 12 17 6
4MN-14WD M14X1.5 WD-B04 12 17 6
4MN-16WD M16X1.5 WD-M16 12 17 8
4MN-18WD M18X1.5 WD-M18 12 17 8
4MN-20WD M20X1.5 WD-M20 14 19 10
4MN-22WD M22X1.5 WD-M22 14 19 10
4MN-26WD M26X1.5 WD-B12 16 21 12
4MN-27WD M27X2 WD-B12 16 21 12
4MN-33WD M33X2 WD-B16 18 24.5 17
4MN-42WD M42X2 WD-B20 20 26.5 22
4MN-48WD M48X2 WD-B24 22 28.5 24

We are specialized in all kinds of hydraulic hose fittings, adapters, ferrules, flanges.

We can provide OEM service and develop new products according to customer's drawings and samples.

  1. Material: carbon steel, stainless steel, brass, etc.
  2. Surface treatment: Zinc plated, Zn-Ni plated, Cr3, Cr6 plated
  3. Standard:SAE, DIN, ISO, BS.
  4. Thread: metric, bsp, bspt, npt, jic, sae, orfs, npsm, etc.
