Metric Hydraulic Bsp Female Fitting DIN 3865 5CM / 5DM Nickel Plated
Metric Hydraulic Bsp Female Fitting DIN 3865 5CM / 5DM Nickel Plated
Specifications
Brand Name :
xindu
Model Number :
5CM / 5DM
Place of Origin :
NINGBO CHINA
MOQ :
negotiable
Price :
negotiable
Payment Terms :
D/P, L/C, T/T
Supply Ability :
100000 Piece/Pieces per Month hydraulic reducer pipe reducing fitting
Delivery Time :
wihtin 30 days or as percustomers' requlement.
Packaging Details :
export carton, wood pallet
Material :
Carbon Steel, Carbon steel / Stainless Steel 316 & 304
Connection :
Male
Port :
Shanghai / Ningbo
Thread :
metric
Shape :
Equal
Surface Treatment :
Zinc / ZnNi / Nickel Plated / BLACK / Passivation
Color :
Yellow / Silver/ Black/ Nature
Type :
Nipple
Description

5CM / 5DM Conpression fitting (DIN2353)

  • DIN Hydraulic Fittings
  • BSP Thread Adapter
  • JIC Hydraulic Adapters
  • Metric Hydraulic Adapters
  • SAE Flange Adapter
  • Hydraulic Hose Fittings JIC
  • BSP Hydraulic Fittings
  • Metric Hydraulic Hose Fittings
  • SAE Flange Fittings
  • Reusable Hose Fittings
  • Interlock Hose Fittings
  • Socketless Hose Fittings
  • Hydraulic Hose Ferrule

Metric Hydraulic Bsp Female Fitting DIN 3865 5CM / 5DM Nickel Plated

Metric Hydraulic Bsp Female Fitting DIN 3865 5CM / 5DM Nickel Plated

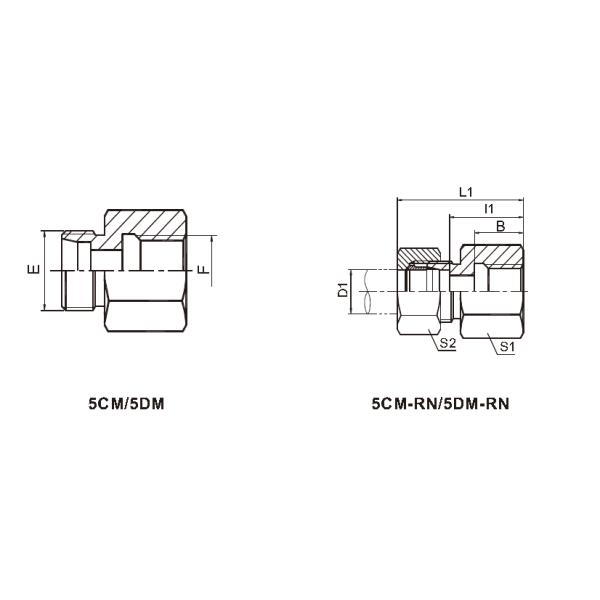

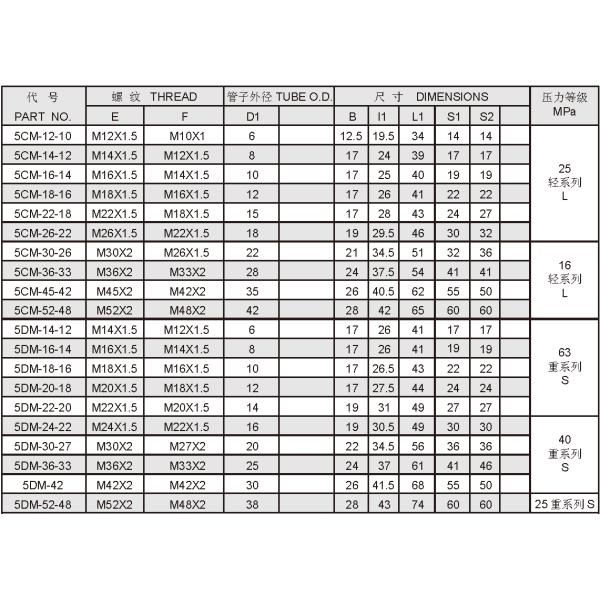

Note:In case if you are interested to order the adapter in complete set with cutting ring

and nut ,it is necessary to insert suffix "RN" after our part no.,for example 5DM-30-27RN.

BITE TYPE TUBE FITTINGS INSTRUCTIONS:

  • Bite type fitting consists of three parts: body, cutting ring and nut. When tightening nut, cutting ring is driven forward on the tube then bites the tube with the edge of cutting ring, this is how sealing is achieved and results in internal ridge inside the tube.
  • The tube connection side of fitting is manufactured in accordance with standard: DIN 3865.
  • In general, body and nuts' surface is plated zinc. Bite type fitting can be used in system with Max 63MPa. The connection tube OD is Max 42mm.

We are specialized in all kinds of hydraulic hose fittings, adapters, ferrules, flanges.

We can provide OEM service and develop new products according to customer's drawings and samples.

  1. Material: carbon steel, stainless steel, brass, etc.
  2. Surface treatment: Zinc plated, Zn-Ni plated, Cr3, Cr6 plated
  3. Standard:SAE, DIN, ISO, BS.
  4. Thread: metric, bsp, bspt, npt, jic, sae, orfs, npsm, etc.
