Industry Reusable Hose Fittings Sae J1453 Orfs Female Flat Seat Double Hexagon
Industry Reusable Hose Fittings Sae J1453 Orfs Female Flat Seat Double Hexagon
Specifications
Brand Name :
XD
Model Number :
24218D-R5
Place of Origin :
NINGBO CHINA
MOQ :
negotiable
Price :
negotiable
Payment Terms :
D/P, L/C, T/T
Supply Ability :
100000 Piece/Pieces per Month hydraulic reducer pipe reducing fitting
Delivery Time :
wihtin 30 days or as percustomers' requlement.
Packaging Details :
export carton, wood pallet
Material :
Stainless Steel, Brass, stainless steel, carbon steeL
Thread :
ORFS
Type :
Coupling
Connection :
FEMALE
Color :
ucp
Surface treatment :
Cr+3, Cr+6, Zn-Ni, Zinc plated
Brand Name: :
XD
Shape :
Equal
Description

ORFS FEMALE FLAT SEAT DOUBLE HEXAGON reusable Fitting SAE J1453

​

  • DIN Hydraulic Fittings
  • BSP Thread Adapter
  • JIC Hydraulic Adapters
  • Metric Hydraulic Adapters
  • SAE Flange Adapter
  • Hydraulic Hose Fittings JIC
  • BSP Hydraulic Fittings
  • Metric Hydraulic Hose Fittings
  • SAE Flange Fittings
  • Reusable Hose Fittings
  • Interlock Hose Fittings
  • Socketless Hose Fittings
  • Hydraulic Hose Ferrule

Industry Reusable Hose Fittings Sae J1453 Orfs Female Flat Seat Double Hexagon

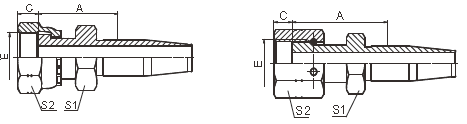

PART NO. THREAD E HOSE DASH DIMENSIONS
A C S1 S2
24218D-04-04(R5) 9/16"X18 04 8.5 14 19
24218D-04-05(R5) 9/16"X18 05 8.5 14 19
24218D-06-06(R5) 11/16"X16 06 10 17 22
24218D-08-08(R5) 13/16"X16 08 11 19 27
24218D-10-10(R5) 1"X14 10 13.5 24 30
24218D-12-12(R5) 1.3/16"X12 12 15 30 36
24218D-16-16(R5) 1.7/16"X12 16 15 36 41
24218D-20-20(R5)W 1.11/16"X12 20 15 41 50
24218D-24-24(R5)W 2"X12 24 16 50 60

We are specialized in all kinds of hydraulic hose fittings, adapters, ferrules, flanges.

We can provide OEM service and develop new products according to customer's drawings and samples.

  1. Material: carbon steel, stainless steel, brass, etc.
  2. Surface treatment: Zinc plated, Zn-Ni plated, Cr3, Cr6 plated
  3. Standard:SAE, DIN, ISO, BS.
  4. Thread: metric, bsp, bspt, npt, jic, sae, orfs, npsm, etc.
