BSPP Compact Socketless Hose Fittings Female 60 Cone Seat Equal Shape
BSPP Compact Socketless Hose Fittings Female 60 Cone Seat Equal Shape
Specifications
Brand Name :
xindu
Model Number :
22691K-PO
Place of Origin :
NINGBO CHINA
MOQ :
negotiable
Price :
negotiable
Payment Terms :
D/P, L/C, T/T
Supply Ability :
100000 Piece/Pieces per Month hydraulic reducer pipe reducing fitting
Delivery Time :
wihtin 30 days or as percustomers' requlement.
Packaging Details :
export carton, wood pallet
Material :
Carbon Steel, Carbon steel / Stainless Steel 316 & 304
Connection :
Female
Port :
Shanghai / Ningbo
Thread :
BSPP
Shape :
Equal
Surface Treatment :
Zinc / ZnNi / Nickel Plated / Black / Passivation
Color :
Yellow / Silver/ Black/ Nature
Type :
Nipple
Standard :
BS
Description

22691K-PO 90°BSP COMPACT FEMALE 60°CONE HYDRAULIC SOCKETLESS HOSE FITTINGS

​

  • DIN Hydraulic Fittings
  • BSP Thread Adapter
  • JIC Hydraulic Adapters
  • Metric Hydraulic Adapters
  • SAE Flange Adapter
  • Hydraulic Hose Fittings JIC
  • BSP Hydraulic Fittings
  • Metric Hydraulic Hose Fittings
  • SAE Flange Fittings
  • Reusable Hose Fittings
  • Interlock Hose Fittings
  • Socketless Hose Fittings
  • Hydraulic Hose Ferrule

BSPP Compact Socketless Hose Fittings Female 60 Cone Seat Equal Shape

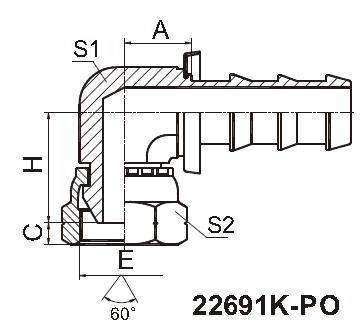

PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A C H S1 S2
22691K-04-04PO G1/4"x19 6 04 12 5.5 18.5 11 19
22691K-06-06PO G3/8"x19 10 06 14 6.3 24 14 22
22691K-08-08PO G1/2"x14 12 08 17 7.5 26.5 19 27
22691K-12-12PO G3/4"x14 20 12 21.5 10.9 33 27 32

We are specialized in all kinds of hydraulic hose fittings, adapters, ferrules, flanges.

We can provide OEM service and develop new products according to customer's drawings and samples.

  1. Material: carbon steel, stainless steel, brass, etc.
  2. Surface treatment: Zinc plated, Zn-Ni plated, Cr3, Cr6 plated
  3. Standard:SAE, DIN, ISO, BS.
  4. Thread: metric, bsp, bspt, npt, jic, sae, orfs, npsm, etc.
